Hyundai excavator travel bearing XKAH-00494
|
P/N
|
XKAH-00494
|
Material:
|
GCR15
|
|
i/d
|
mm
|
O/D
|
mm
|
|
H
|
mm
|
Brand：
|
ZHZB
|
Precision
|
P0 , P6 , P5
|
Structure:
|
Angular contact bearing
|
Product features:
1. Special bearing for excavator travel gearbox
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' final drive bearings, the service life is increased by 50%
Our advantage:
100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience

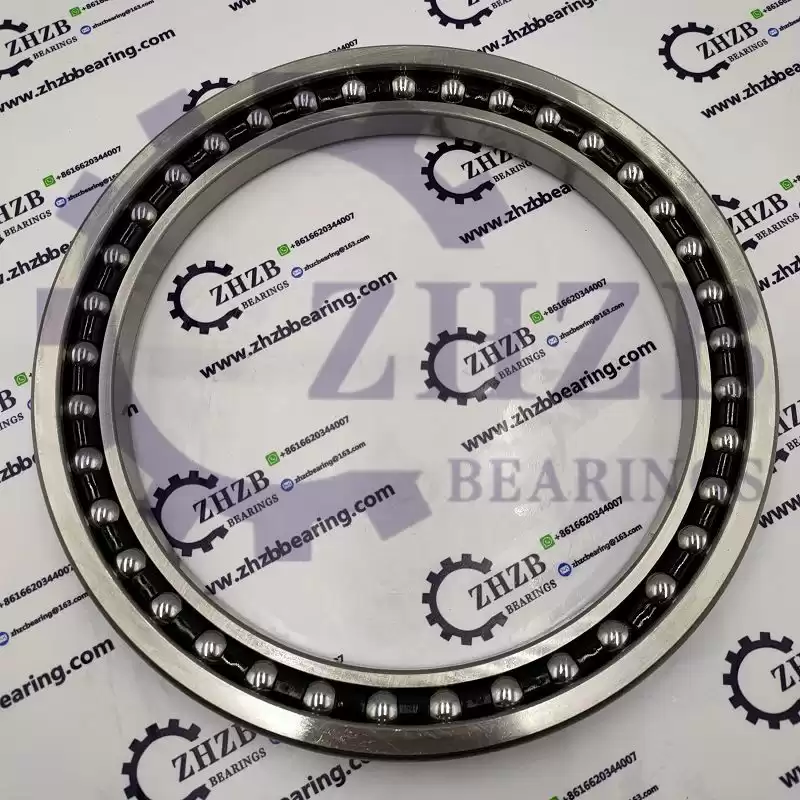

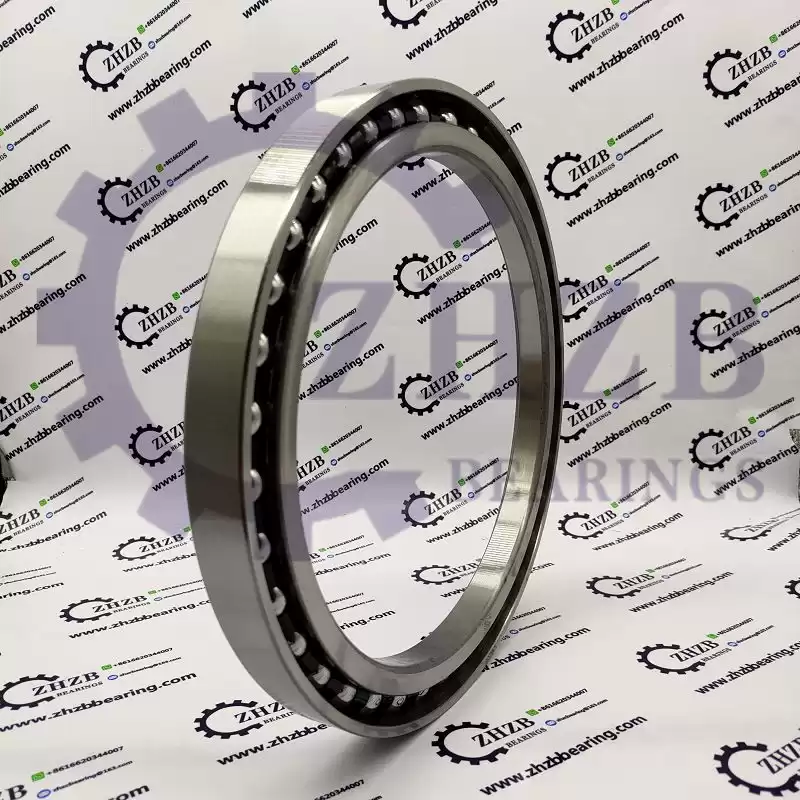

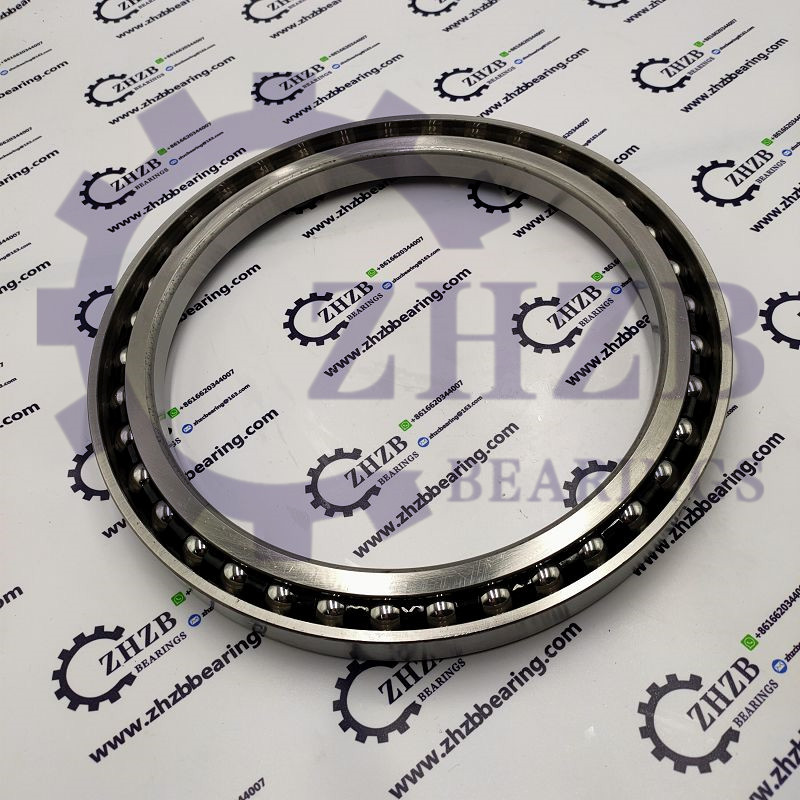

Product Photos
Any other parts for the travel gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.
|
Pos.
|
Part No
|
Qty
|
Parts name
|
Comments
|
|
*.
|
XKAH-00487
|
[1]
|
REDUCTION GEAR
|
|
|
1.
|
XKAH-00311
|
[1]
|
HUB
|
141927
|
|
*-1.
|
XKAH-00488
|
[1]
|
SPINDLE KIT
|
718549
|
|
*-11.
|
XKAH-00489
|
[1]
|
SPINDLE ASSY
|
|
|
N2.
|
XKAH-00004
|
[1]
|
SPINDLE
|
131132
|
|
N3.
|
XKAH-00005
|
[1]
|
HOLDER-FLANGE
|
131133
|
|
19.
|
XKAH-00006
|
[3]
|
BOLT-SOCKET
|
228558
|
|
34.
|
XKAH-00007
|
[6]
|
PIN-PARALLEL
|
131130
|
|
37.
|
XKAH-00008
|
[3]
|
WASHER-PLAIN
|
131131
|
|
*-2.
|
XKAH-00371
|
[1]
|
RV GEAR ASSY
|
718550A
|
|
*-21.
|
XKAH-00010
|
[1]
|
RV GEAR KIT
|
718554
|
|
4.
|
XKAH-00011
|
[1]
|
RV GEAR-A
|
131136D
|
|
5.
|
XKAH-00012
|
[1]
|
RV GEAR-B
|
131137D
|
|
9.
|
XKAH-00013
|
[3]
|
SHAFT-CRANK
|
131134C
|
|
12.
|
XKAH-00014
|
[6]
|
SPACER
|
131135A
|
|
22.
|
XKAH-00490
|
[6]
|
BEARING-T/ROLLER
|
|
|
23.
|
XKAH-00016
|
[6]
|
BEARING-NEEDLE
|
229125A
|
|
6.
|
XKAH-00491
|
[1]
|
GEAR-INPUT
|
|
|
*-3.
|
XKAH-00492
|
[1]
|
SPUR GEAR KIT
|
718551
|
|
7.
|
XKAH-00479
|
[3]
|
GEAR-SPUR
|
133593
|
|
8.
|
XKAH-00020
|
[1]
|
COVER
|
131141B
|
|
13.
|
@
|
[3]
|
PIECE-DISTANCE
|
|
|
13-1.
|
XKAH-00850
|
[AR]
|
PIECE(3.75-3.80T)
|
|
|
13-2.
|
XKAH-00851
|
[AR]
|
PIECE(3.80-3.85T)
|
|
|
13-3.
|
XKAH-00852
|
[AR]
|
PIECE(3.85-3.90T)
|
|
|
13-4.
|
XKAH-00853
|
[AR]
|
PIECE(3.90-3.95T)
|
|
|
13-5.
|
XKAH-00854
|
[AR]
|
PIECE(3.95-4.00T)
|
|
|
15.
|
XKAH-00022
|
[1]
|
COUPLING
|
107589
|
|
17.
|
XKAH-00023
|
[24]
|
PIN
|
131144
|
|
20.
|
XKAH-00024
|
[3]
|
RING-SNAP
|
204958
|
|
21.
|
XKAH-00494
|
[2]
|
BEARING-BALL
|
|
|
25.
|
XKAH-00026
|
[3]
|
RING-SNAP
|
202606
|
|
K27.
|
XKAH-00194
|
[2]
|
O-RING
|
201765
|
|
K29.
|
XKAH-00028
|
[1]
|
O-RING
|
204449A
|
|
K30.
|
XKAH-00029
|
[1]
|
O-RING
|
204456A
|
|
*-4.
|
XKAH-00372
|
[1]
|
FLOATING SEAL KIT
|
716687A
|
|
K31.
|
XKAH-00495
|
[2]
|
SEAL-FLOATING
|
|
|
33.
|
XKAH-00032
|
[3]
|
PLUG-RO
|
131145
|
|
35.
|
XKAH-00496
|
[12]
|
BOLT-SOCKET
|
|
|
36.
|
XKAH-00033
|
[1]
|
BALL-STEEL
|
203316
|
|
42.
|
XKAH-00034
|
[2]
|
PIN-PARALLEL
|
131146
|
|
K43.
|
XKAH-00035
|
[3]
|
O-RING
|
201710
|
|
N.
|
@
|
[AR]
|
NOT INDIVIDUALLY SUPPLIED
|
|
|
K.
|
XKAH-00111
|
[1]
|
SEAL KIT
|
674B9000-00
|
Company
ZHZB Mission:We are committed to providing bearing component solutions for all construction machinery and equipment!!!
ZHZB was established in 2004 and has been committed to the development and production of engineering machinery bearings. Our products are widely used in mining equipment, road machinery, metallurgy, wind power generation, excavators and other heavy equipment and have been well received by customers!
Packaging
Delivery：
1.We will send express delivery for less than 45 kg, which is more convenient door-to-door.
2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive
3.For more than 200 kg, we will send it by sea to reduce transportation costs.
