The 1756-OG16 has a backplane draw current of 210mA at 5.1V DC and of 2mA at 24V DC with a total backplane power of 1.12W.
|
|
1756-OG16 Description:
|

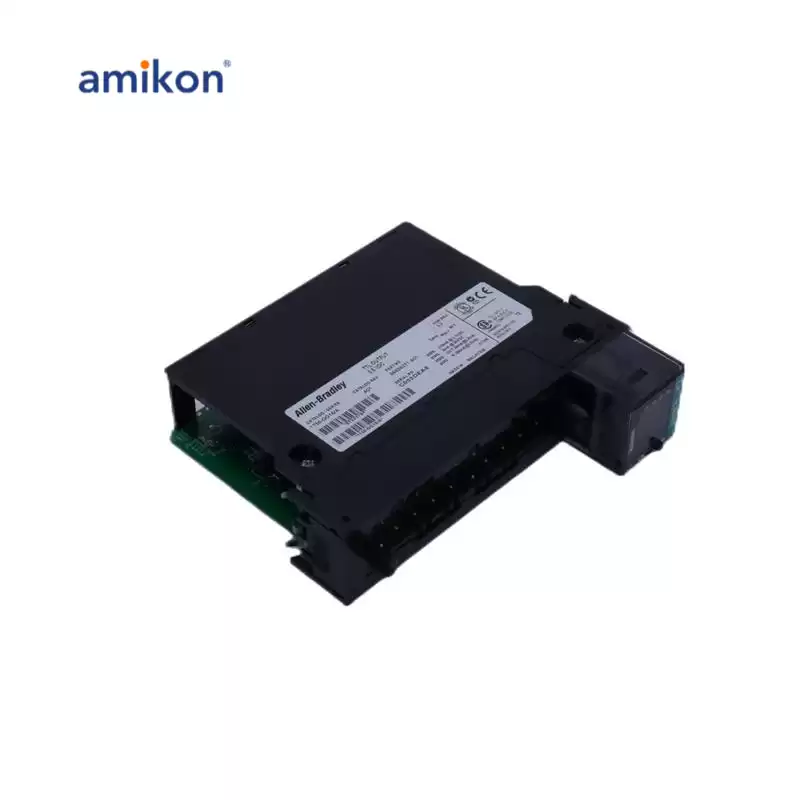

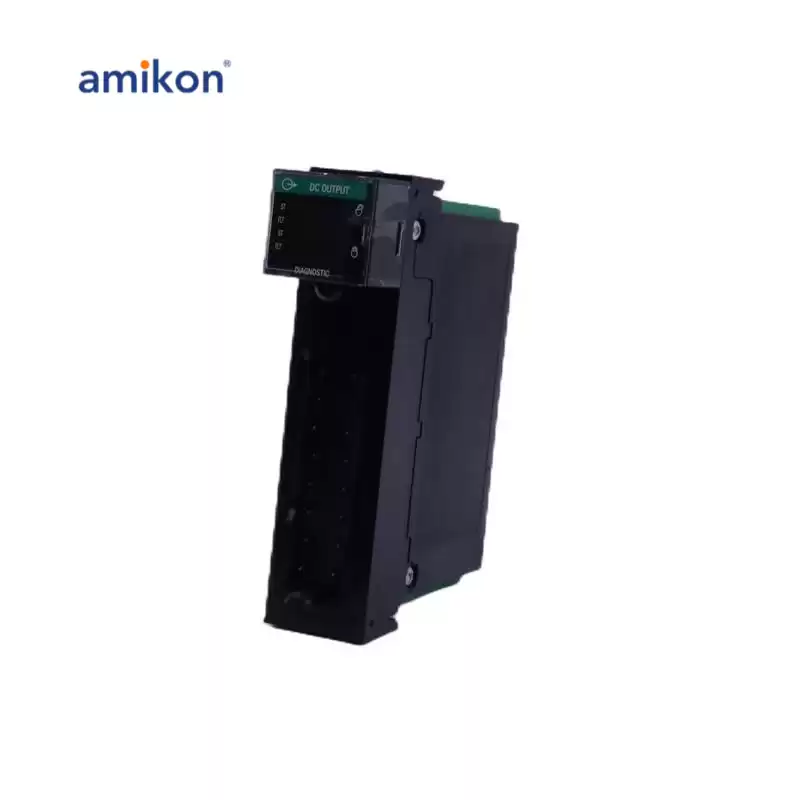

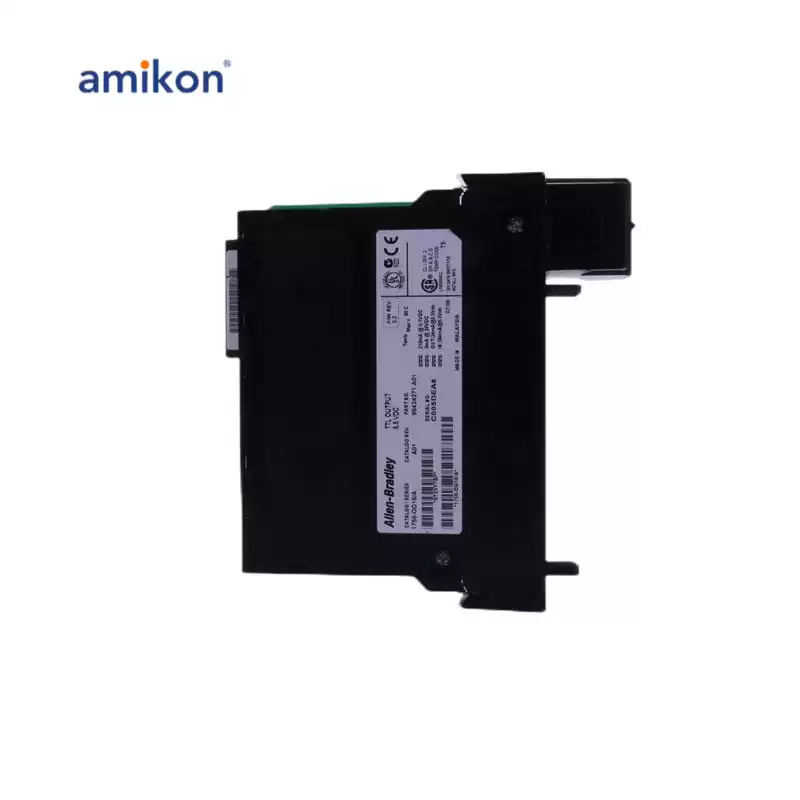

The 1756-OG16 ControlLogix Transistor-Transistor Logic Output Module by is a DC digital output module installed in the ControlLogix chassis with sixteen 5V DC Low/True TTL outputs.
|
|
The 1756-OG16 has a maximum OFF state current leakage of 0.1mA on each output point, and its overall ON state drop voltage is 0.4V.
|
|
The 1756-OG16 has a backplane draw current of 210mA at 5.1V DC and of 2mA at 24V DC with a total backplane power of 1.12W.
|
|
