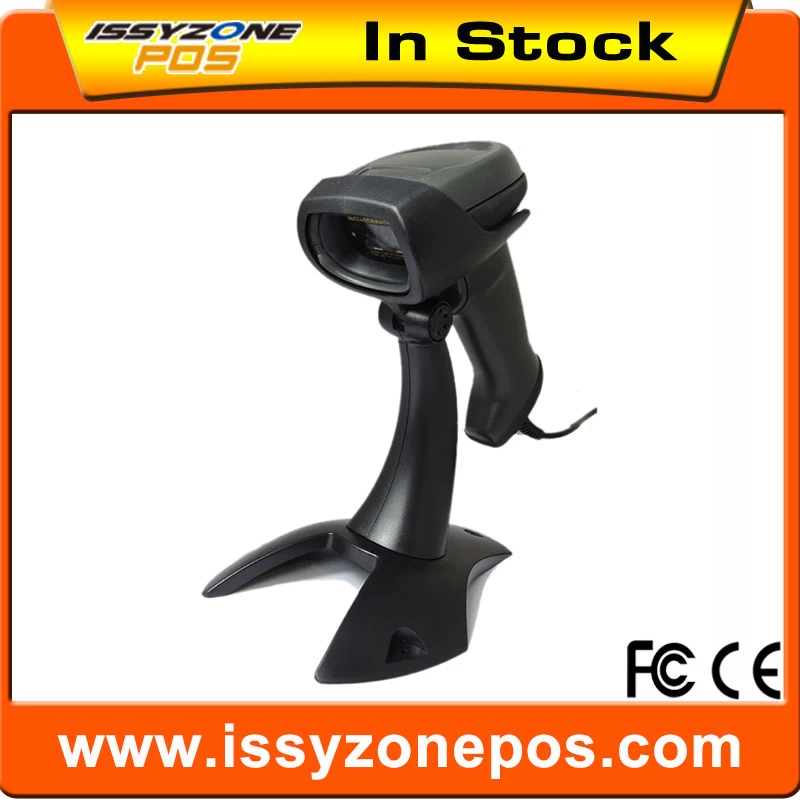

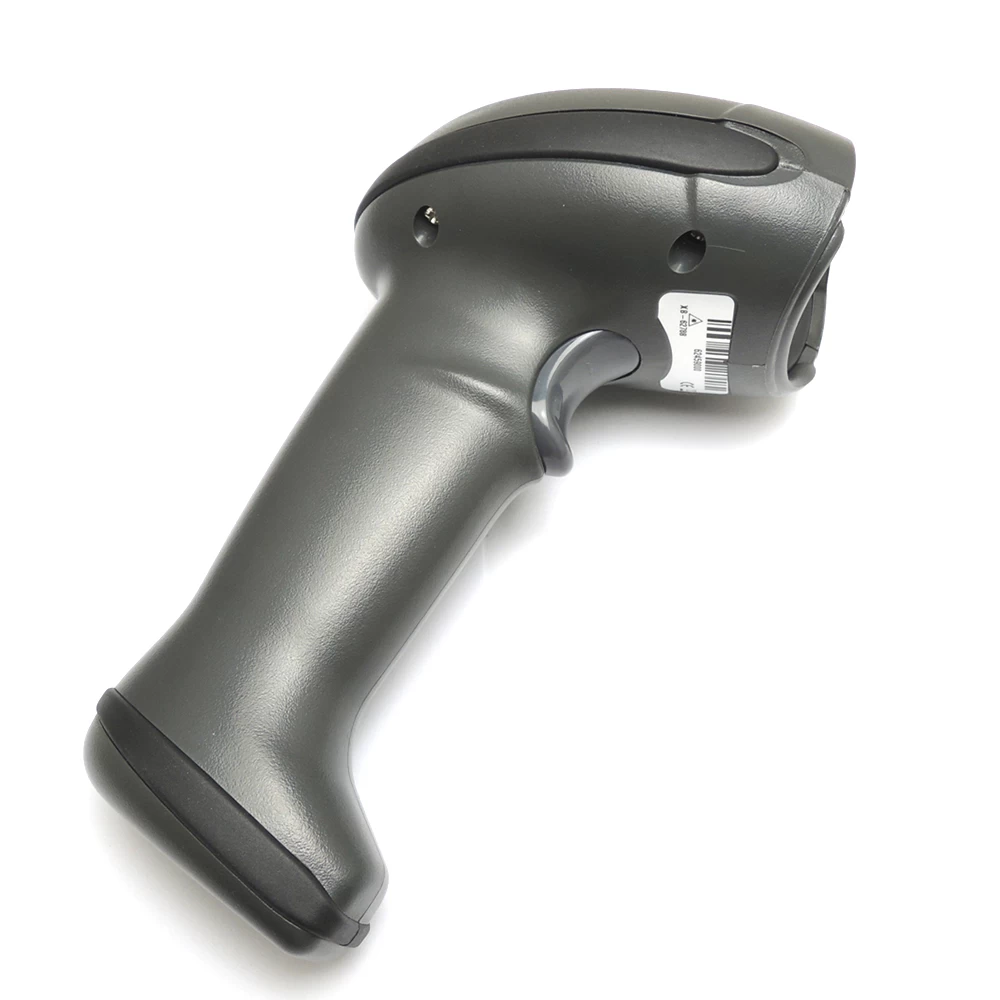

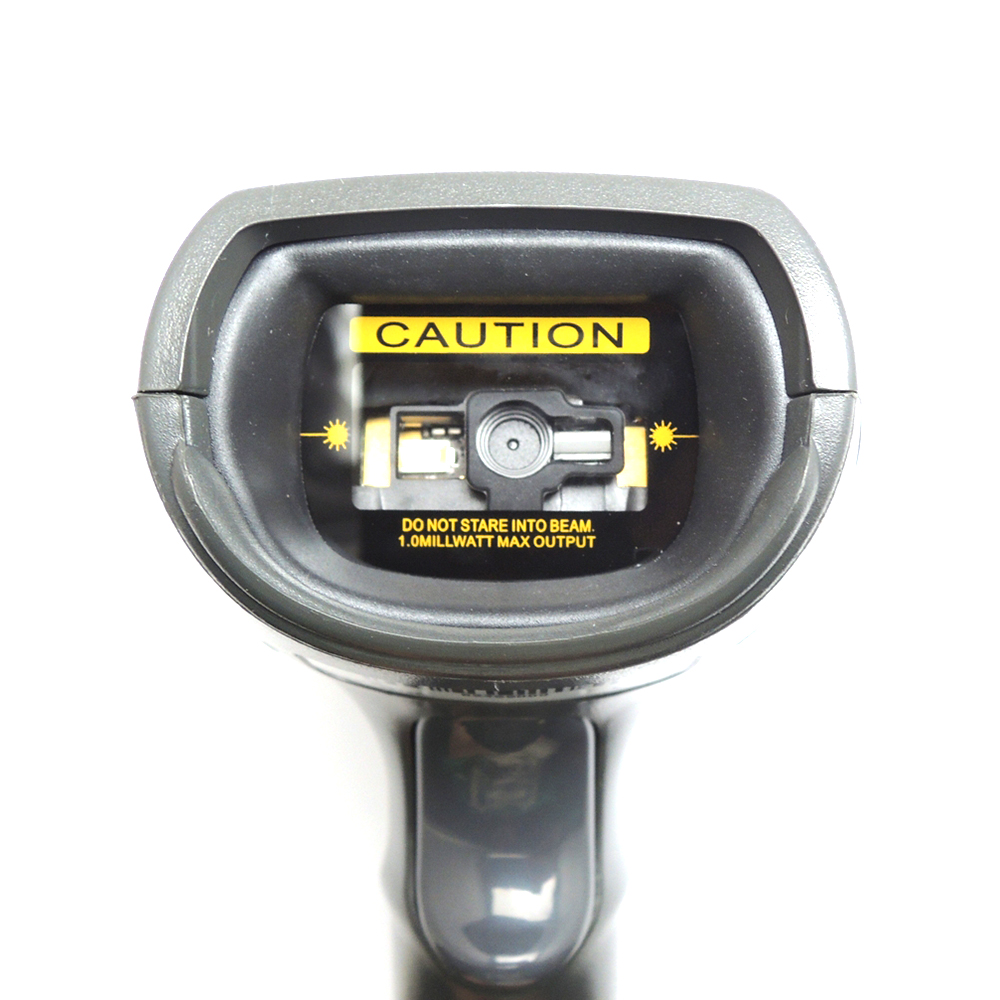

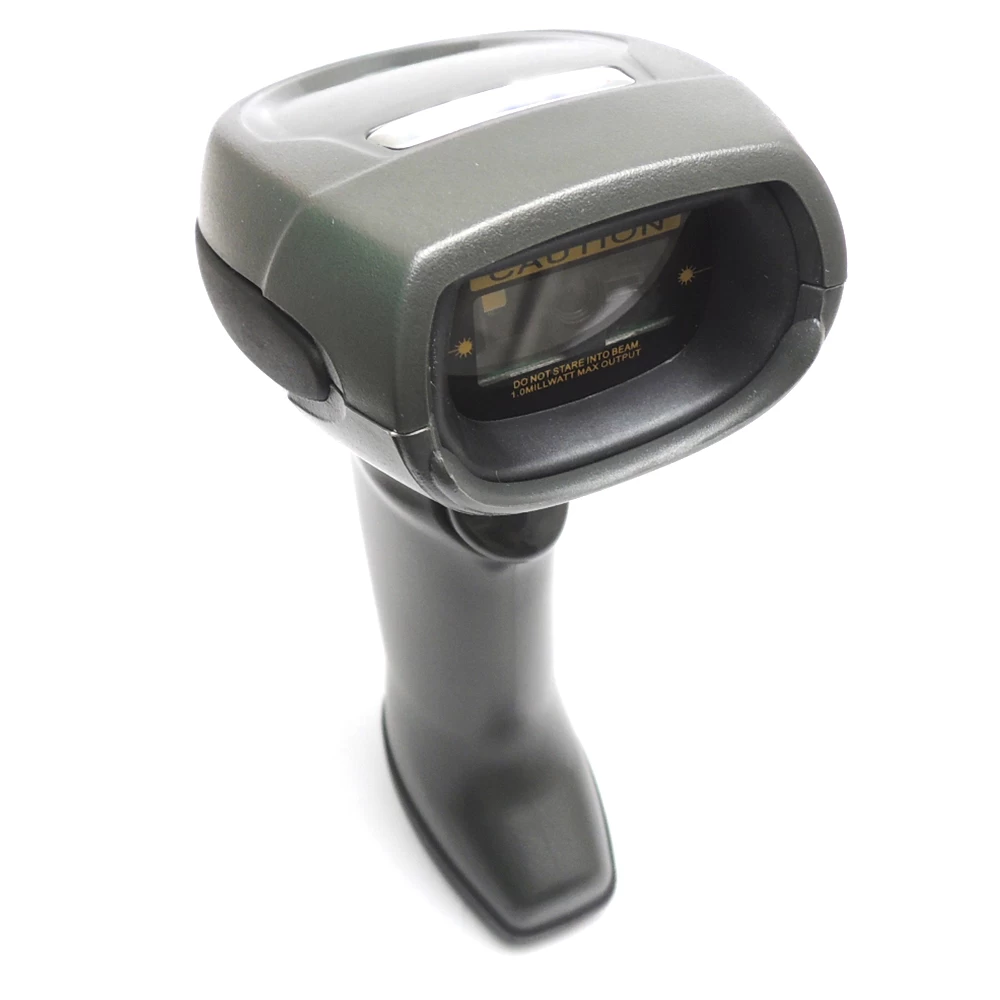

I2DBC011 2D QR Industrial Wireless Bluetooth Scanner




Performance Parameter
Light Source Aimer:617nm LED White 6500K <p >Illumination:625nm LEDs
Decode Capability
1D

UPC/EAN,UPC/EAN with supplementals, BooklandEAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 FullASCII, Trioptic Code 39,

Code 32, Code 93, Code11, Matrix 2 of 5,

 Interleaved 2 of 5, Discrete 2of 5, Codabar, MSI, Chinese 2 of 5,

GS1 DataBar variants, Korean 3 of 5, ISBT Concat

2D PDF417,MicroPDF417,CompositeCodes,TLC-39,Data Matrix,Maxicode ,QR code ,Micro QR,Aztec
Scanning Type Image CMOS
Scan Rate Above 25inch/63.5cm per second
Trigger Mode  Manual /continuous scan
Roll/Pitch/Yaw Angle 30° /65°/55°
Resolution SR:Code 39 4.8mil;UPC 60% 5mil,PDF417 5mil,Datamatrix 7.5mil
Depth of scanning field 5mm-390mm
Print Contrast ≥25%,minimum reflective
Indicator  LED,buzzer
Interface Support USB-HID,USB-COM,RS232
Physical Parameter
Dimension  L175mm*W71mm*H101mm
Housing Materials ABS+PC
Weight  249g
Cable Parameter  2M
Electrical Parameter
Voltage DC 5V
Current 250mA (Peak value)
Environmental Parameter
Operating Temperature -20℃~50℃
Storage Temperature -40℃~70℃
Humility  5%-95%(no condensing )
IP Level IP54
LUX 3000-8000Lux
Impact Resistance  withstands multiple 3m drops to concrete
