Performance Parameters
|
617nm LED Aimer,White LED
|
|
Supported Symbologies
|
1D:EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128,
Codabar, Interleaved 2 of 5, ITF-6, ITF-14,ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code,Code 11,
Industrial 25, Standard 25,
|
|
Plessey, Matrix 2 of 5.
|
|
2D:QR Code, Data Matrix, PDF417,Aztec, Maxicode, HanXin code.
|
|
Scan Type
|
Image CMOS
|
|
Resolution
|
640*480
|
|
Scan Method
|
Manually/Automatica/Successive Scanning
|
|
Scan angle
|
Yaw ±55°,Rotation 30°,Pitch ±55°
|
|
Precision
|
≥5mil
|
|
Contrast
|
≥20%
|
|
Depth of scan field
|
EAN13 50-200MM (13MIL);
|
|
QR 25-240MM(20MIL);
|
|
PDF147 30-130MM(6.67MIL)
|
|
Error Rate
|
Less than 1/5million
|
|
Interface
|
USB-HID
|
|
Wireless Communication
|
Pairing dedicated receiver: 2.4G communication
|
|
Pairing Mobile Bluetooth Devices: Bluetooth BLE 4.0
|
|
Wireless transmission distance
|
30-50 meters (open distance)
|
|
Storage Mode
|
Offline Storage Mode: When the scanner exits the connection range,
the data is automatically stored.Storage capacity is 512000 characters.
|
|
Inventory storage mode: Scanner can enter inventory mode,
storage capacity is 512000 characters.
|
|
Pairing Mode
|
One to One: One Scanning Gun Pairs One Receiver
|
|
One scanner paired with a Bluetooth mobile device
|
|
Receiving End
|

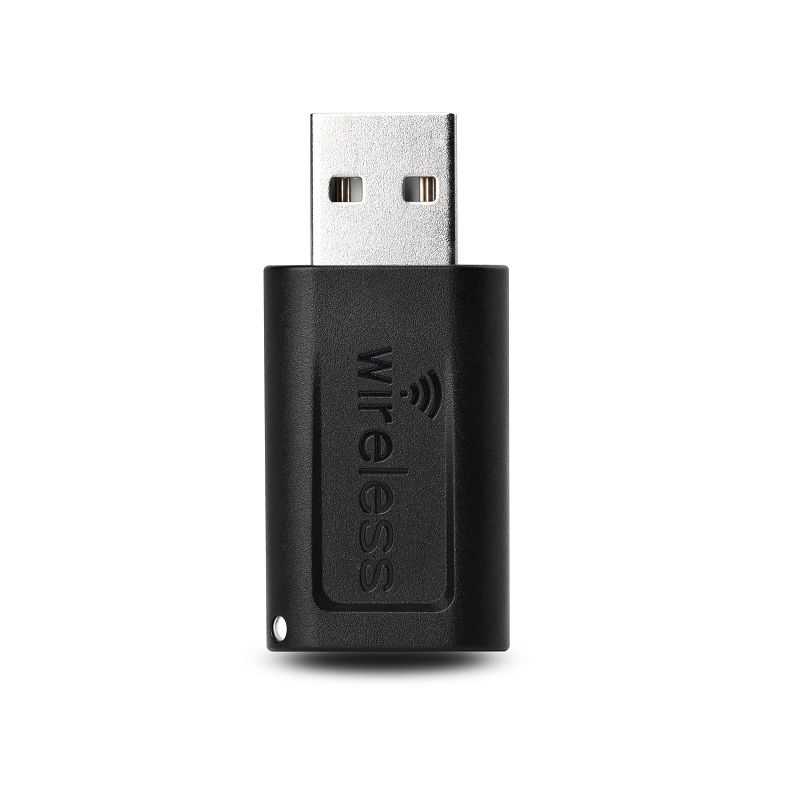

Dedicated Bluetooth U Disk Receiver
|
|
Electrical Parameters
|
|
Voltage
|
DC5V±5%
|
|
Operating Current
|
When not scanning code ≥26mA;
|
|
when scanning code ≥280mA
|
|
Standby Current
|
0mA (Standby is to cut off battery power)
|
|
Lithium battery
|
18650 2200mA Lithium battery
|
|
Battery Working Time
|
7h
|
|
Charging Time
|
5h
|
|
Charging Model
|

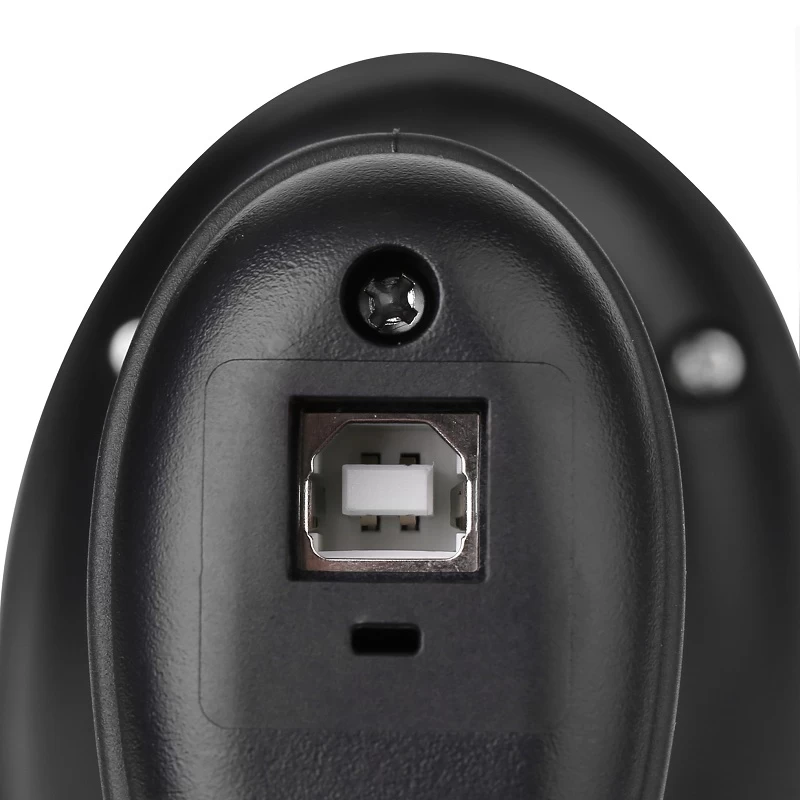

Square USB charging cable, plug straight charge
|
|
Physical Parameters
|
|
Dimensions
|
102mm*71mm*177mm
|
|
Weight
|
223g
|
|
Material
|
ABS+PC
|
|
Cable Length
|
0.6m
|
|
Environmental Parameters
|
|
Operating Temperature
|
-20℃~+50℃
|
|
Storage Temperature
|
-40℃~+70℃
|
|
Relative Humidity
|
5%~95%（Non-condensing）
|
|
Ambient lighting
|
0~100000LUX
|
|
Drop/Shock Resistance
|
Withstands multiple times 3meters drops to concrete
|
