| Scanning performance | |
| Imaging sensor: | 752×480 CMOS |
| Light: | Red LED 625±10 nm |
| Read code system: |
2D:PDF417, QR Code, Data Matrix, Chinese-sensible code, Aztec Code, Maxicode, MicroPDF417,etc 1D: Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6,ITF-14,ISBN, Code 93, UCC/EAN-128, GS1 Databar, GS1 Composite Code, Matrix 2 of 5, Code11, Industrial 25, Standard 25, Plessey, MSI-Plesse,etc |
| Read density: | ≥ 5mil |
| Depth of field | |
| Code 39 50mm -135mm(10mil); 70mm~170mm(15mil) | |
| PDF417 55mm -145mm(10mil); 70mm~160mm(15mil) | |
| Data Matrix 40mm -120mm(10mil); 60mm~145mm(15mil) | |
| QR Code 40mm -115mm(10mil); 60mm~150mm(15mil) | |
| Symbol contrast: | Reflection difference ≥ 25% |
| Reading Angle: | 360°rotated, ±50°inclined,± 50°deflection |
| View Angle: | 36°level,23°vertical |
| Mechanical/electrical parameters | |

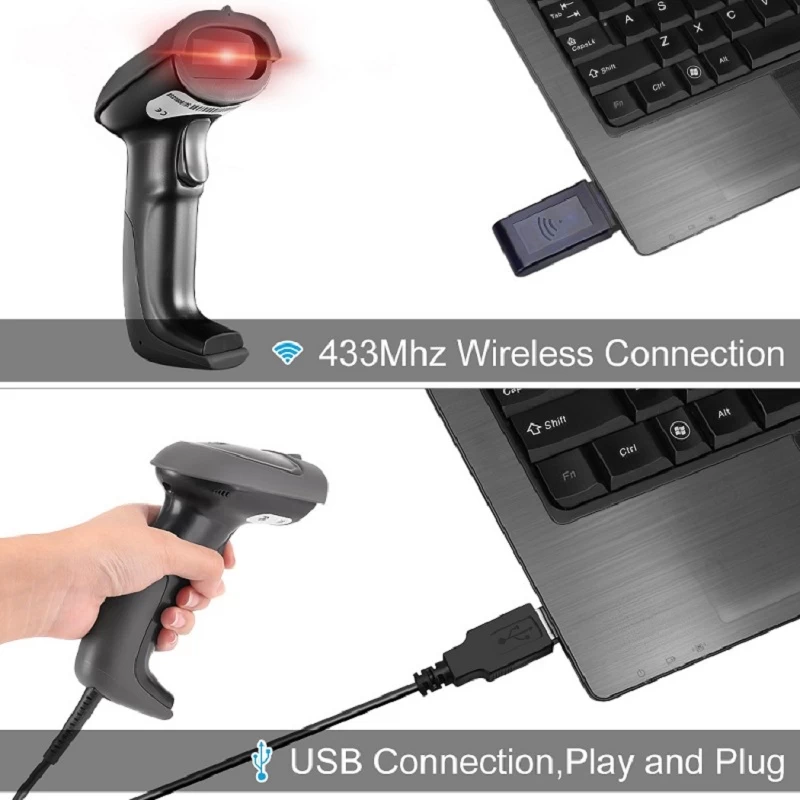

| Interface type: | USB |
| Operating voltage: | DC3.3V |
| Maximum current : | 400 mA |
| Operating current : | 300 mA |
| Idle current : | 65 mA |
| Appearance size: | 170x88x70mm |
| Net weight: | 130±10g |
| Gross weight: | 260±10g |
| Enviromental parameter | |
| Operating temperature: | -15℃ ~ +45℃ |
| Storage temperature: | -40℃ ~ +60℃ |
| Working Humidity: | 5%-90%RH |
| Ambient Lighting: | 0-100000 lux（natural light） |
| international certification: | FCC Part15 Class B, CE EMC Class B |
| Accessories: | one data line , one specification, one product certificate, one warranty card |
