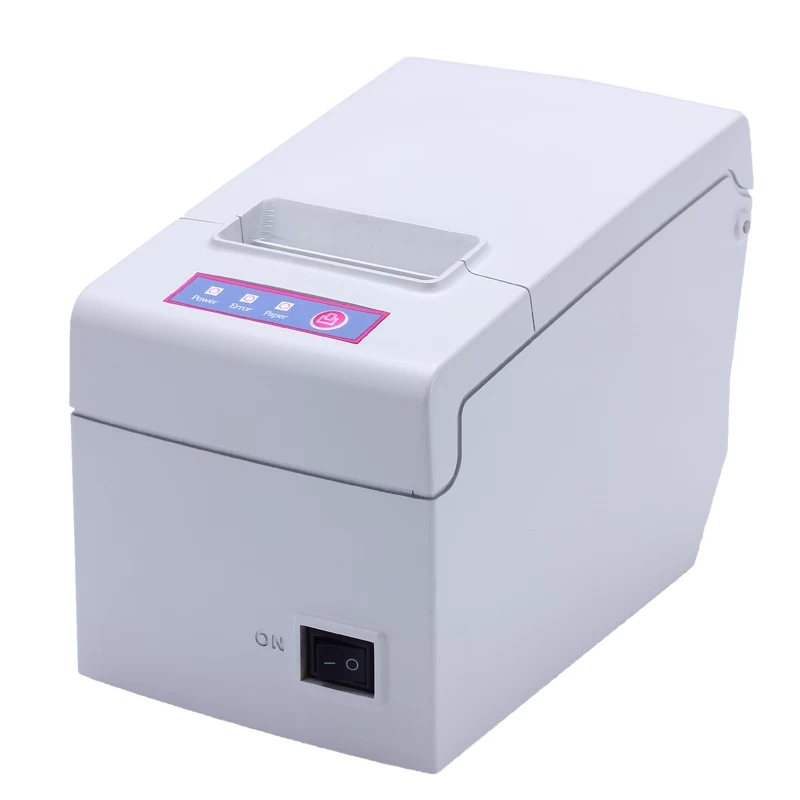

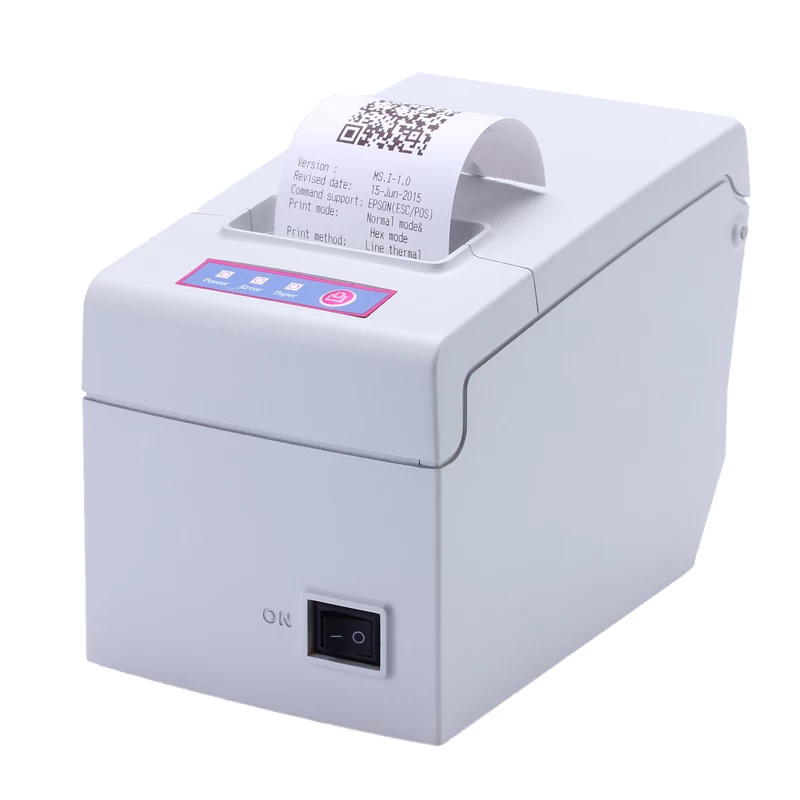

I58TP12 58mm Thermal Printer Big Gear Fast Speed With USB/COM/Serial/Ethernet/Lan/WIFI/GPRS/Bluetooth

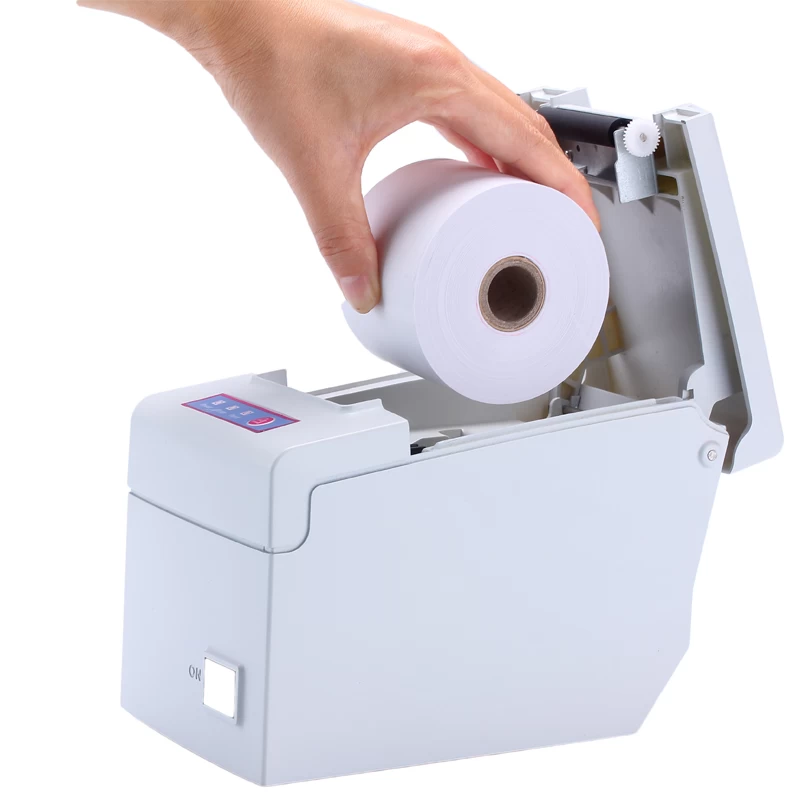

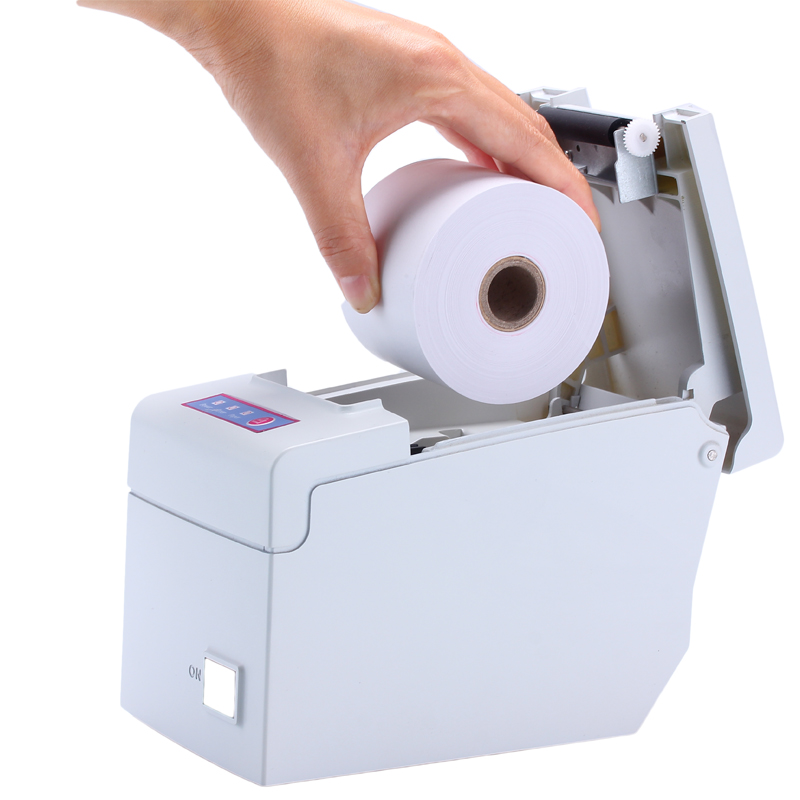

Can load 58*80mm paper, 80mm diameter.



Printer Parameters:


Items

Parameters



Printing Method

Thermal Line


Printing Width

48MM



Resolution

384dots/Line8dots/mm203dpi


Printing Speed

130mm/Second

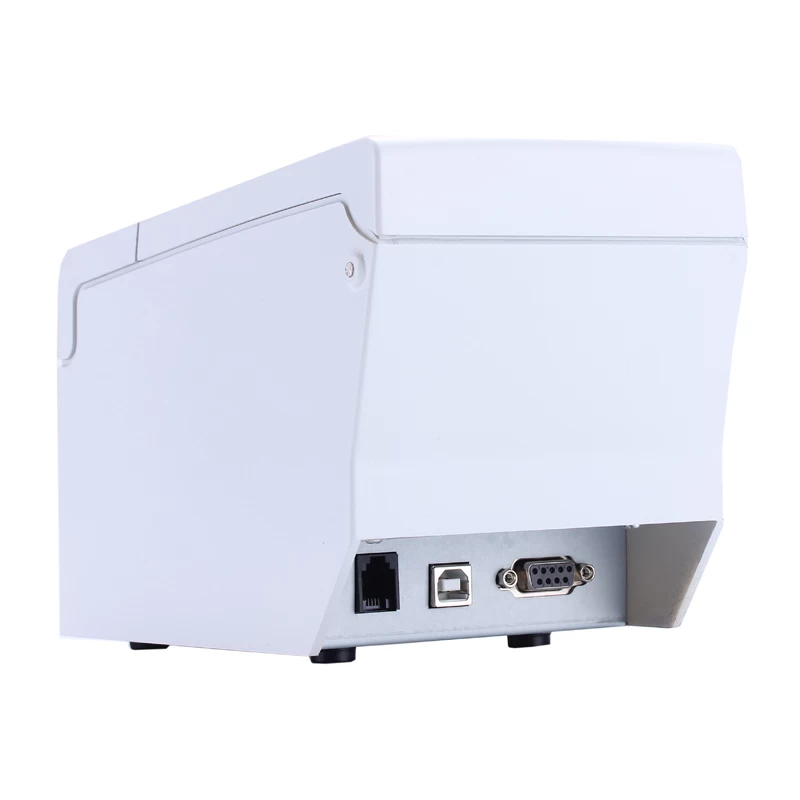

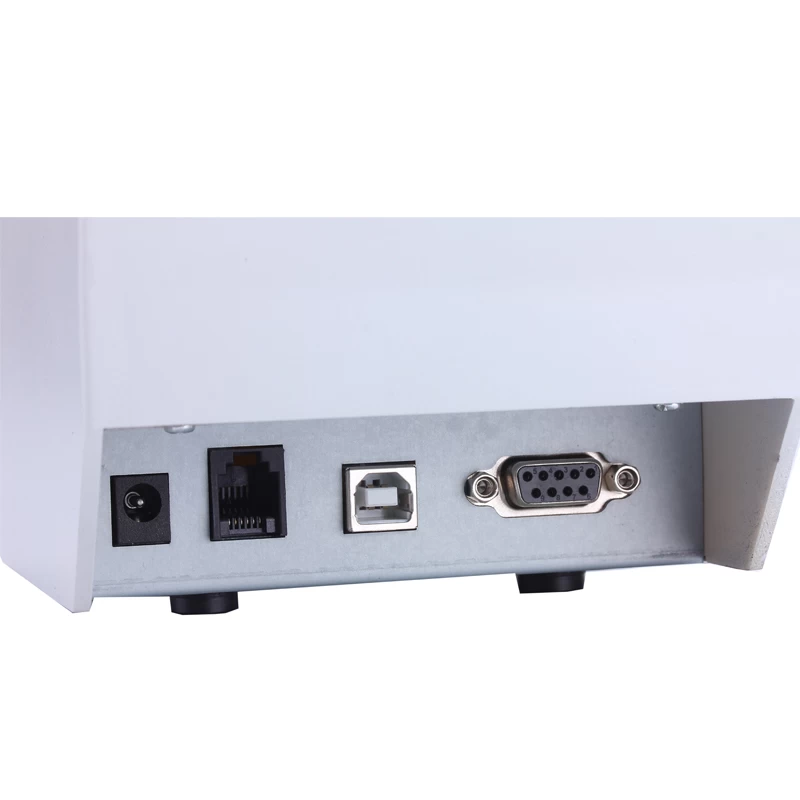

Interface Type

USBCOMInternet100M),WIFIGPRSBluetooth


Print parameters

Line Spacing

3.75 mmCan adjust line spacing by command



Line No.

Font A:32 character /Line



Font B:42 character/Line



Simple,traditional Chinese-16 lines


Character

Standard GB18030 simplified / traditional Chinese Fonts



Character Size

ANKcharacterFont A1.5×3.0mm12×24



Font B1.1×2.1mm9×17 Simplified/Traditional Chinese3.0×3.0mm

(24×24 Dots


Bar code Character

Extended character set

PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew

/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151

,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/

(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)


Bar code

1D bar codeUPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/


CODABAR/CODE93/CODE128


2D bar codeQRCODE


Graphics printing

Graphics printing

Supports bitmap download and print



Paper

Type

Thermal Roll


Width

57.5±0.5mm


Diameter

83mm


Feed Method

Easy feed(Clameshell feed)


Print commands

Commands

ESC/POS


Power

Power Adaptor

InputAC 100V-240V,50-60Hz


OutputDC 12V/2A


Casher Drawer output

DC 12V/1A


Buffer

Input Buffer

4K


NV Flash

40K


physical characteristics

Weight

750g


Dimension

180*115*127(MM)


Environment

Working

Temp5 ~ 45℃, Humidity10 ~ 80%



Storage

Temp-10 ~ 50 Humidity10 ~ 90%No dew


Reliability parameter

Print Head Life

100KMprint density12.5



Cutter Life

1000,000times
