Part
|
IC660EBD024
|
|
Product Type
|
Electronic Assembly for Genius I/O Block
|
|
Input Voltage
|
12/24 VDC
|
|
I/O Type
|
Source I/O
|
|
Circuits
|
32 Circuits
|
|
Warranty
|
Factory Warranty May Not Apply
|
|
Subcategory
|
PLC Module/Rack
|
|
Weight
|
1.90 lbs
|

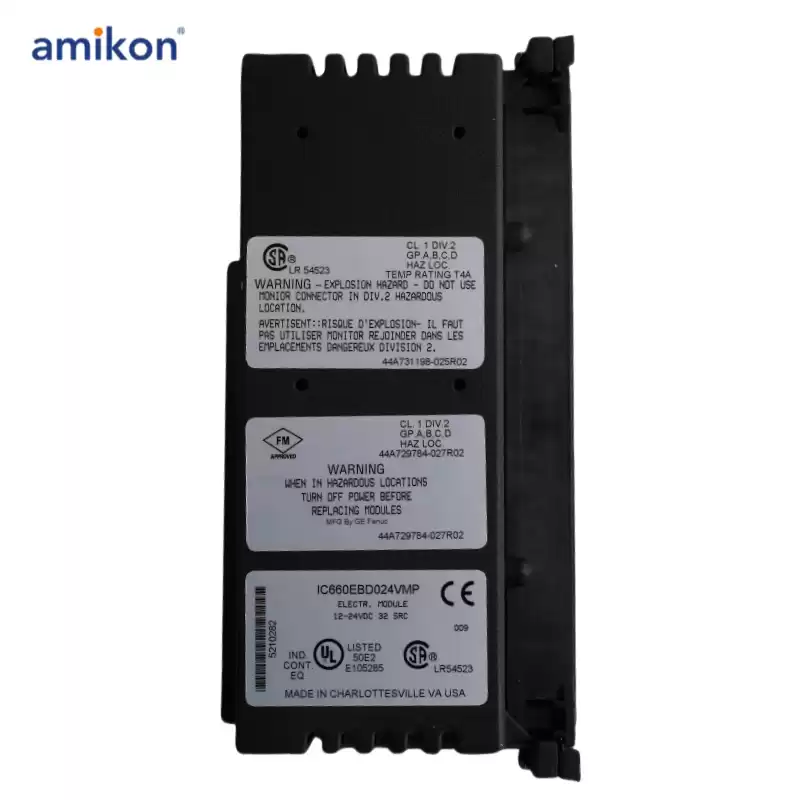

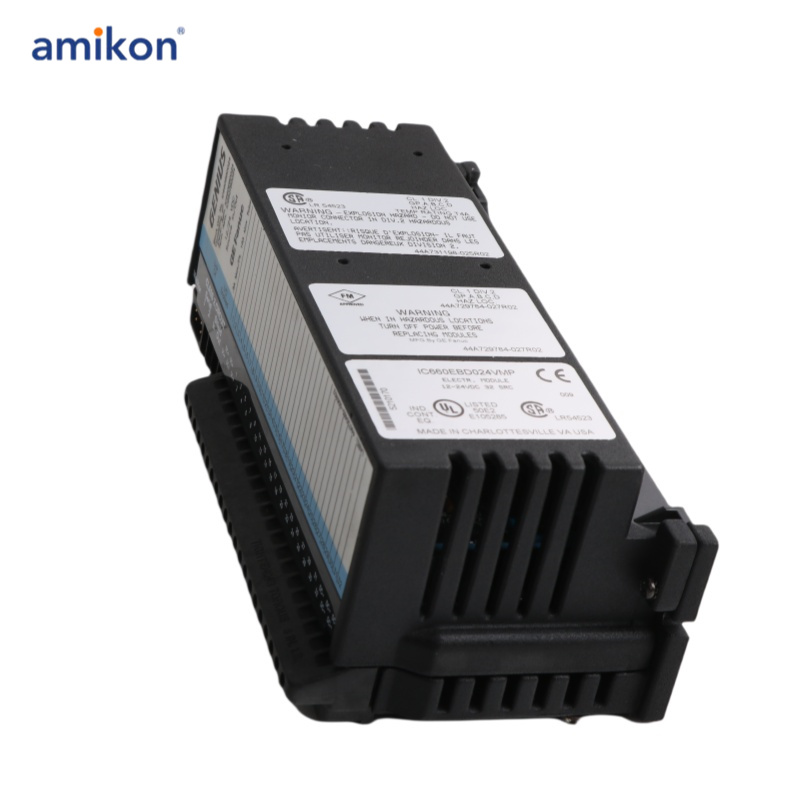

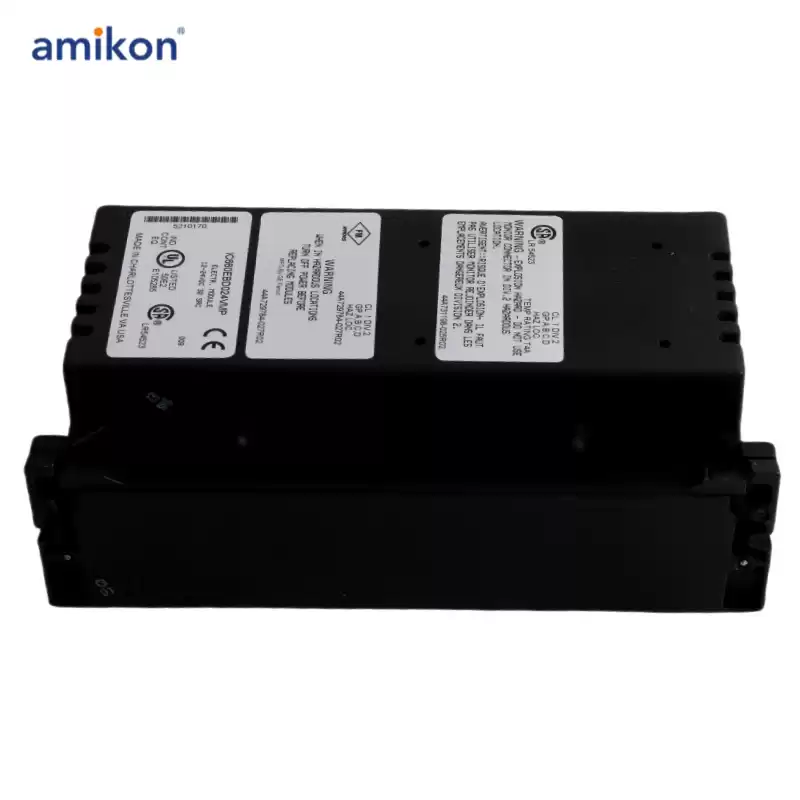

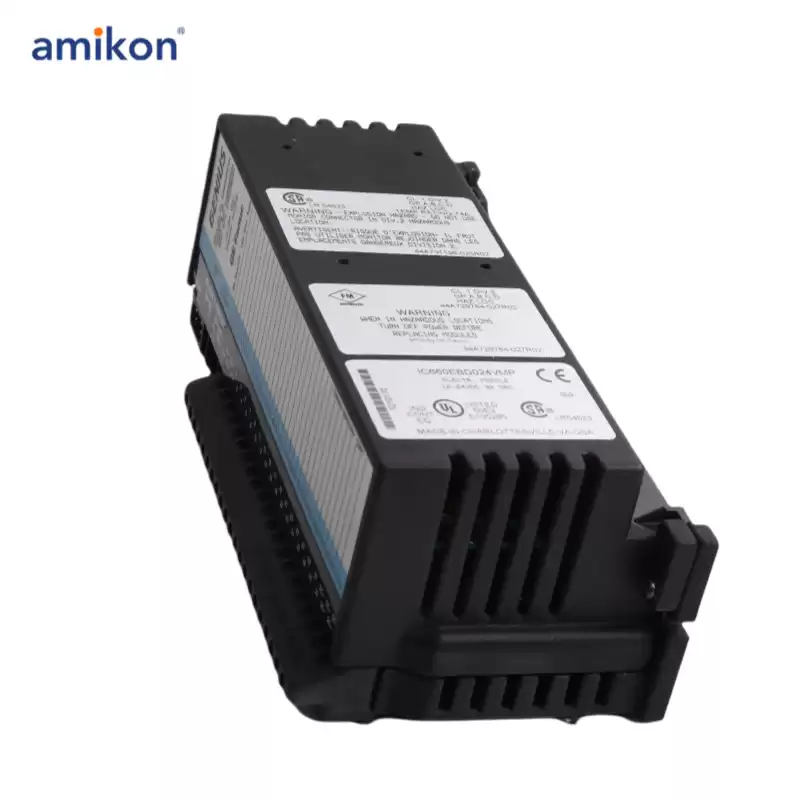

The GE Fanuc IC660EBD024 block is a DC 32-circuit source/sink input and output block. It belongs to the Genius I/O series and it is manufactured by GE Intelligent Platforms/GE Fanuc Automation. Configurable and intelligent, this block interfaces controllers to devices that provide or accept the binary signal. What makes this block stand out is the fact that it is compatible with a variety of input devices, such as the 2-wire and 3-wire electronic proximity switches. It is also well matched with output devices such as lamps, contactors, and relays. The IC660EBD024 I/O block is available in 2 models that include the 32-circuit 5, 12, or 24 Volts DC sink block and the 12/24 Volts DC source block. The difference between the 2 is that the source blocks are designed and intended to provide current to the field output devices while the sink blocks receive the current from the field output devices.
The main features and properties of the GE Fanuc IC660EBD024 source/sink I/O block include a nominal voltage rating of 12 to 24 Volts DC for both the sink and source versions. This sink version of this block is also compatible with the 5 Volts TTL voltage. Additionally, the 32 inputs and outputs are configurable and they can be mixed on the block. Other notable features of this block are advanced diagnostics, resettable self-protecting circuits, and software configuration. The IC660EBD024 block has 32 identical discrete input and output circuits, which are each configured as an outputs, inputs, or as outputs with feedback to provide maximum flexibility for design as well as application efficiency.
