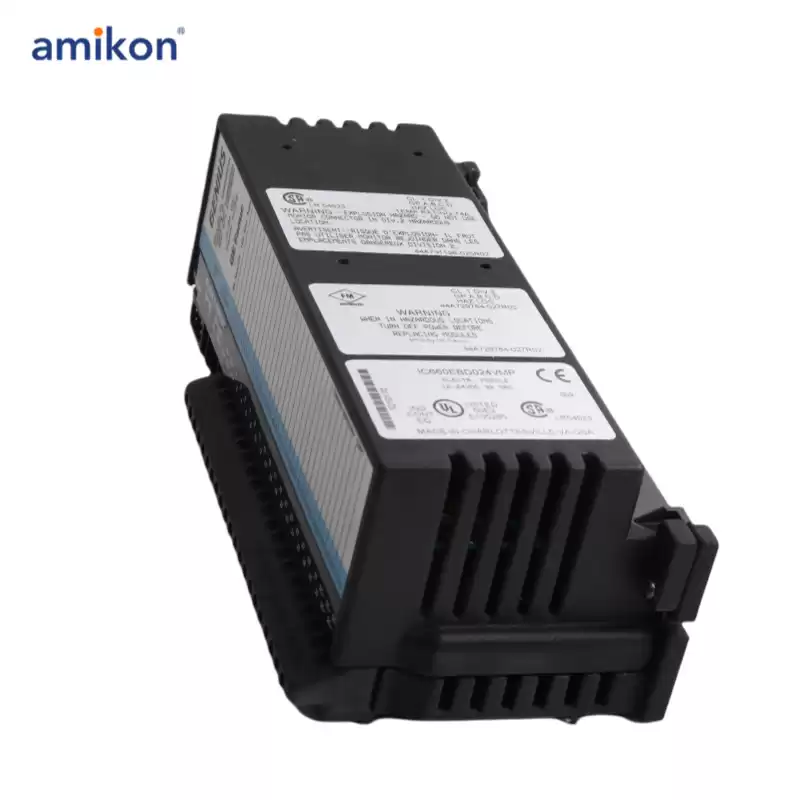

IC660TBD024 GE TERMINAL ASSEMBLY

The IC660TBD024 Terminal Assembly is a screw-type Genius I/O terminal assembly module from GE Fanuc. It has a compact and rugged design. It is located between the IC660EBD024 Electronics Assembly and the IC660BBD024 I/O Block in the Genius I/O system. It is also known as the generic wiring base of the I/O module. This terminal assembly is the wiring interface between the I/O block and field devices. Its terminals are electrically connected together internally. The conductors and wires can be easily inserted into the terminal through the sloped entrance plane and the appropriately sized entrance holes. The IC660TBD024 Terminal Assembly makes the wiring and installation process of an I/O system clear and safe.

The IC660TBD024 Terminal Assembly weighs 2 pounds. It has an EEPROM unit to store the configuration data including the device number, reference address, baud rate, and details of the BSM controller. It is not necessary to reconfigure the module when the electronics assembly is removed or replaced. It hosts all of the field wiring and power connections. The I/O block bus can be directly connected to this terminal assembly. The IC660TBD024 Terminal Assembly is compatible with the GE IC660BBD024 I/O Block and IC660EBD024 Electronics Assembly. The source type block’s outputs must be connected to the negative side of the power supply and the inputs can be connected to the positive side. It can assure the data integrity of the critical processes during replacement or renewal. This terminal assembly can be used to perform efficient field-wiring while ensuring safety and efficiency.
