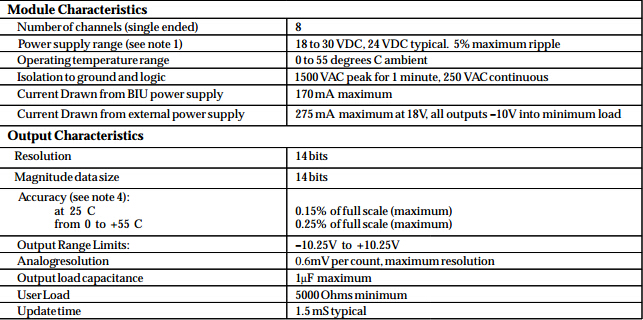

The 8 Point Isolated Analog Voltage-source Output Module (IC670ALG310) accommodates eight voltage outputs in two isolated groups of four. It provides eight channels of analog voltage outputs with user–configurable scaling for each channel.

•
  Supports 8 channels of output voltages ranging from –10V to +10V with 14-bit resolution.

• Output overrange provided for up to approximately 10.25V.

• Uses both word and bit data types.

• Can be field-recalibrated or reset to factory calibration. All calibration data is stored in FLASH memory.
  Individual channel configuration including output range and scaling parameters.

• Reports Under/Overrange faults.

General Electric  IC670ALG310

IC670ALG310 | General Electric | Analog Output Voltage

Email:sales3@amikon.cn

The 8 Point Isolated Analog Voltage-source Output Module requires a separate source of power for the outputs.
