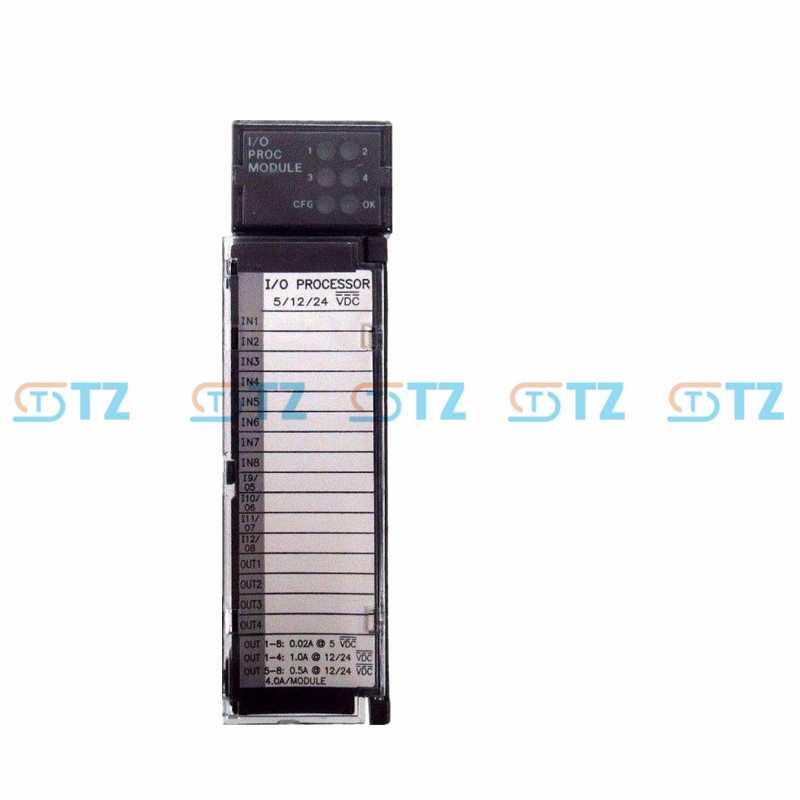

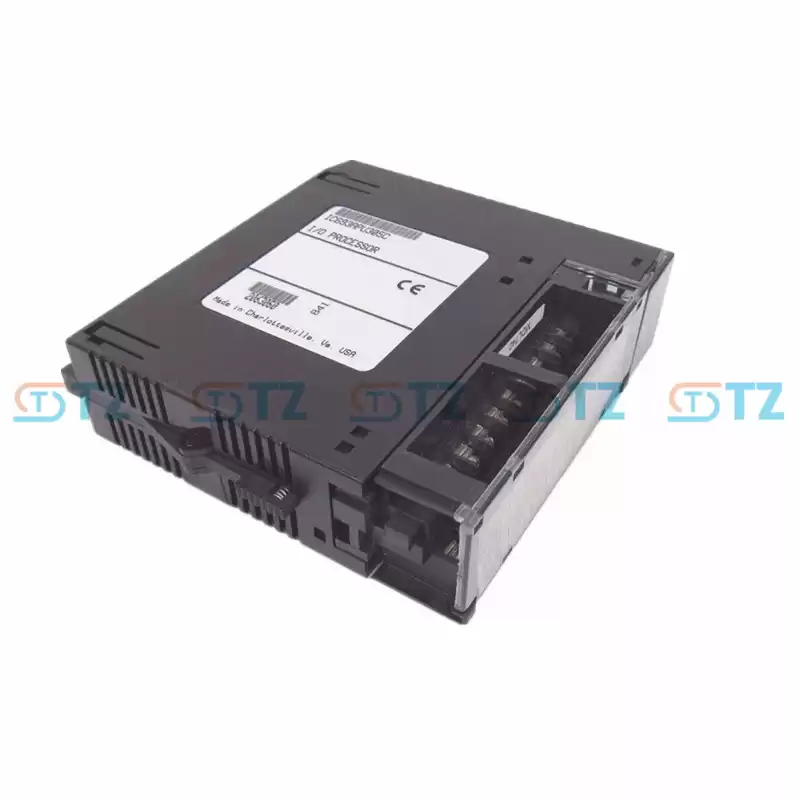

Module features include:
• Up to 12 positive logic (source) inputs with input voltage range selection of either 5 VDC (TTL) or 10 to 30 VDC (non-TTL).
• Up to eight positive logic (source) outputs: four outputs with 1 amp rating and four configurable outputs with 0.5 amp rating
• Outputs protected by replaceable fuse (one fuse common to all outputs)
• Dedicated processor provides 500 ïs I / O update
• Counts per Timebase register for input rate measurement
• Total Counts register (32-bit) accumulates total counts received by module
• Four Strobe data registers for input position capture
• Two Timer data registers for indicating input pulse length or input spacing in milliseconds
• Thirty-two range comparators (outputs returned in %I and %AI data)
• Software configuration
• Internal module diagnostics
• Individual LEDs that indicate Module OK and Configured OK status
• Individual LEDs that indicate state of Outputs 1 through 4
• A removable terminal board for connection of field wiring.
