Mfr. Part Number:
|
IC693CPU351
|
|
Manufacturer
|
General Electric
|
|
Description:
|

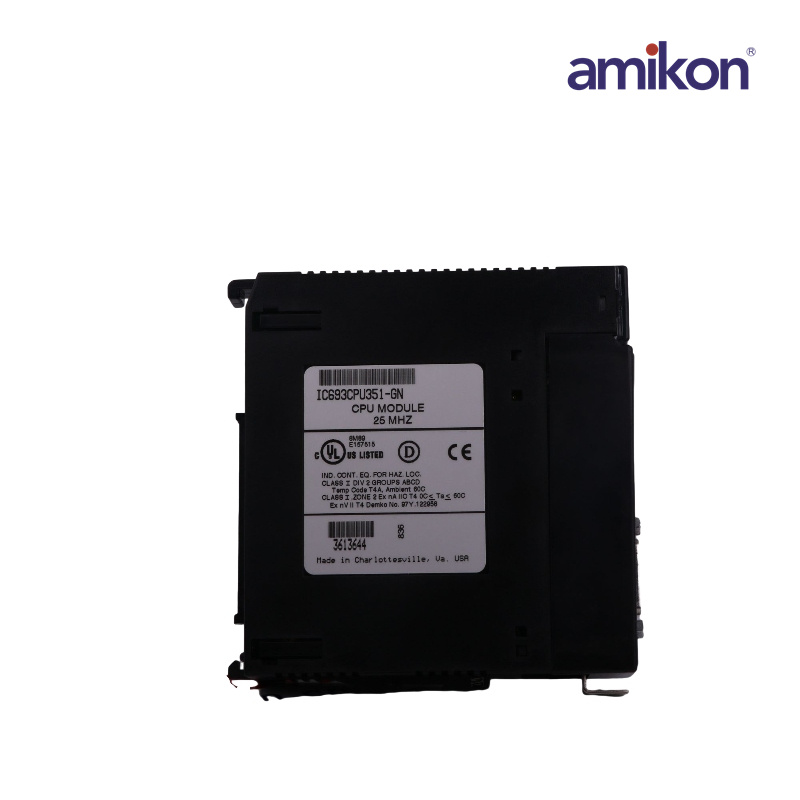

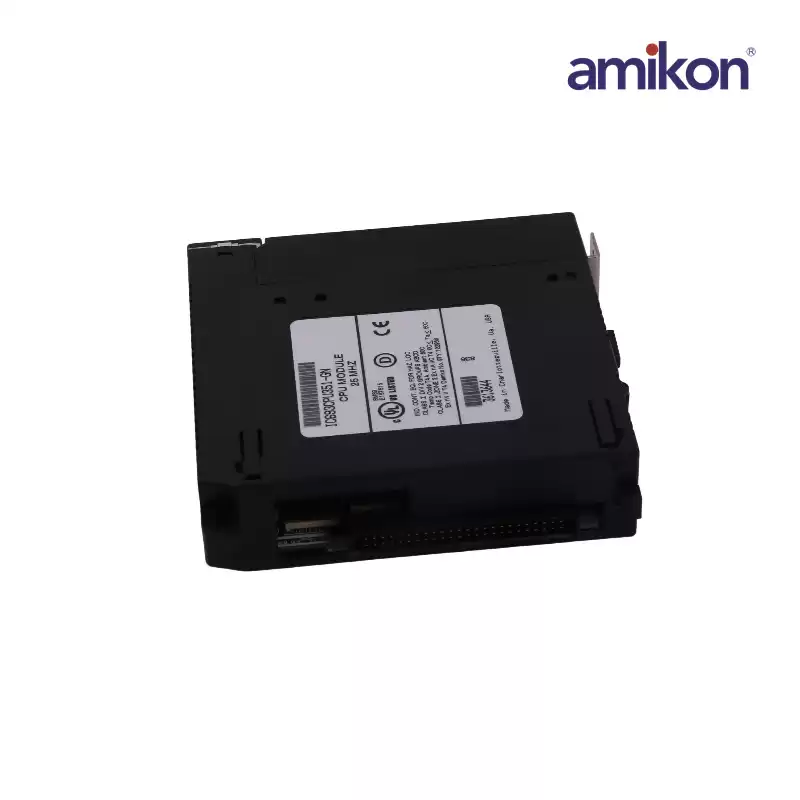

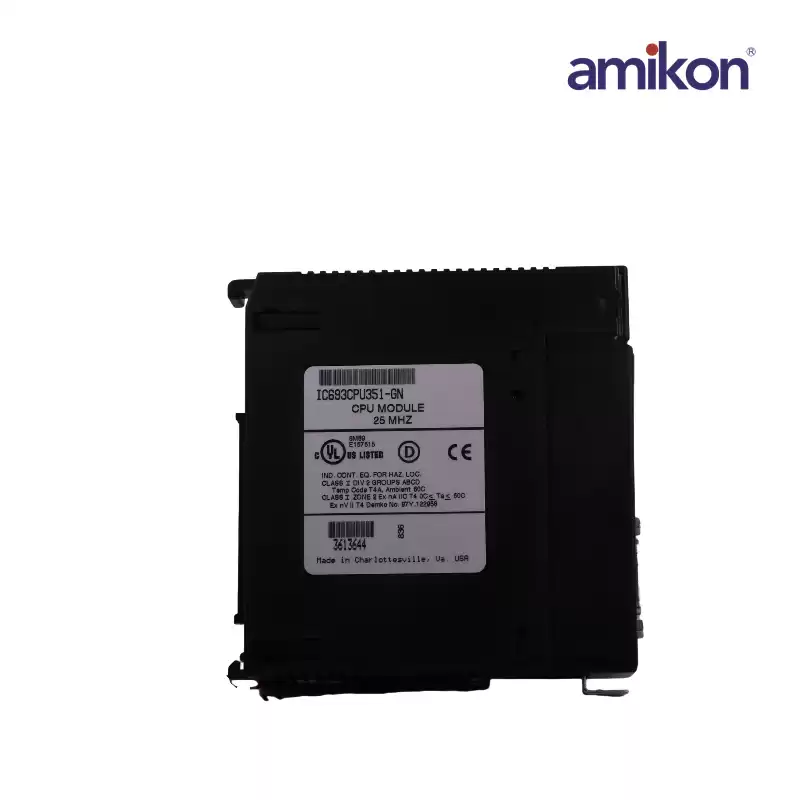

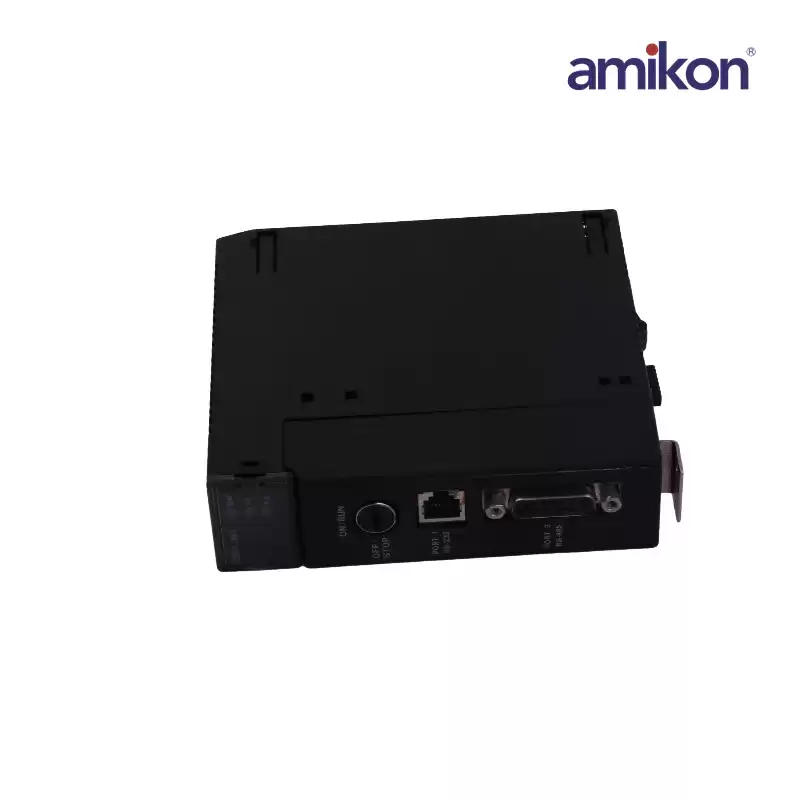

The GE Fanuc IC693CPU351 is a CPU module with a single slot. The maximum power utilized by this module is 5V DC supply and the load required is 890 mA from the power supply
|
|
Status:
|
In stock ready for shipment
|
|
he GE Fanuc IC693CPU351 is a CPU module with a single slot. The maximum power utilized by this module is 5V DC supply and the load required is 890 mA from the power supply.
This module performs its function with a processing speed of 25 MHz and the type of processor used is 80386EX. Also, this module must operate within the ambient temperature range of 0°C –60 °C. This module is also provided with a built-in user memory of 240K bytes for entering programs into the module. The actual size available for user memory mainly depends on amounts allocated to %AI, %R and %AQ.
The IC693CPU351 utilizes memory storage such as Flash and RAM for storing the data and is compatible with PCM/CCM. It also supports the features like floating point math for the firmware version 9.0 and the later released versions. It contains more than 2000 timers or counters for measuring elapsed time.
The IC693CPU351 is also equipped with a battery backup clock. Also, the scan rate achieved by this module is 0.22 m-sec/1K. The IC693CPU351 contains the global memory of 1280 bits and register memory of 9999 words. Also, the memory provided for analog input and output is fixed which is 9999 words. Memory is also allocated for internal and temporary output coil of 4096 bits and 256 bits. The IC693CPU351 consists of three serial ports which support SNP slave and RTU slave.
|
