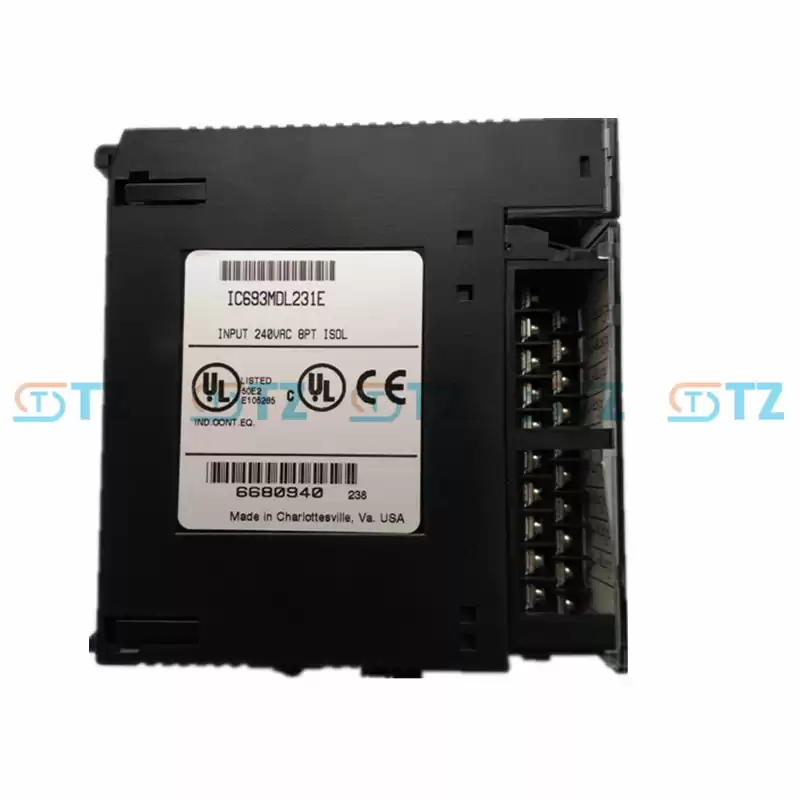

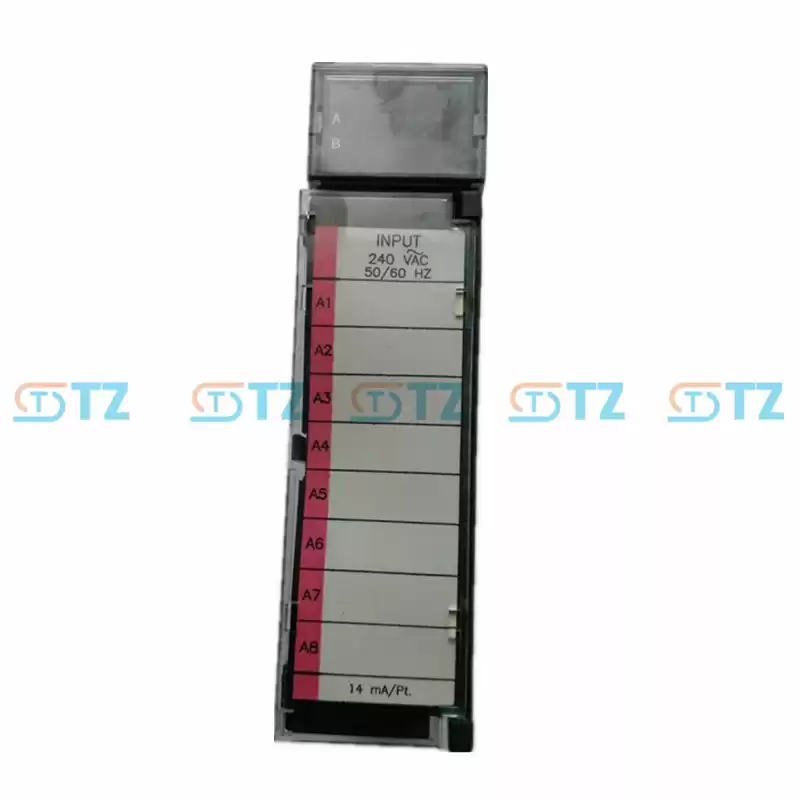

Rated Voltage: 240 volts AC, 50/60 Hz
Input Voltage Range: 0 to 264 volts AC, 50/60 Hz
Inputs per Module: 8 (each input point has a separate common)
Isolation: 1500 volts RMS between field side and logic side 500 volts RMS between inputs
Input Current: 15 mA (typical) at rated voltage
On-state Voltage: 148 to 264 volts AC
Off-state Voltage: 0 to 40 volts AC
On-state Current: 6 mA minimum
Off-state Current: 2.2 mA maximum
On response Time: 30 ms maximum
Off response Time: 45 ms maximum
Power Consumption: 60 mA (all inputs on) from 5 volt bus on backplane.
All items are Distributor Ready-stock Genuine Brand-new Supplying, please inform us if the other conditions are needed, Used, Open-box, Refurbished, etc.
Allen Bradley - CompactLogix; ControlLogix, Flex I/O, MicroLogix, etc.
Siemens - Simatic S7-300; S7-400; S7-1200; S7-1500; HMI 6AV etc.
ABB - Advant 800xA S800; S200; S400; S500; S600; S700; S900 etc.
GE Fanuc - 90-30; 90-70; PACSystems RX3i, etc.
Honeywell - Experion® PKS; ControlEdge™ HC900; etc.
Many Available just wait for you, feel free to ask to get better deal!!!
