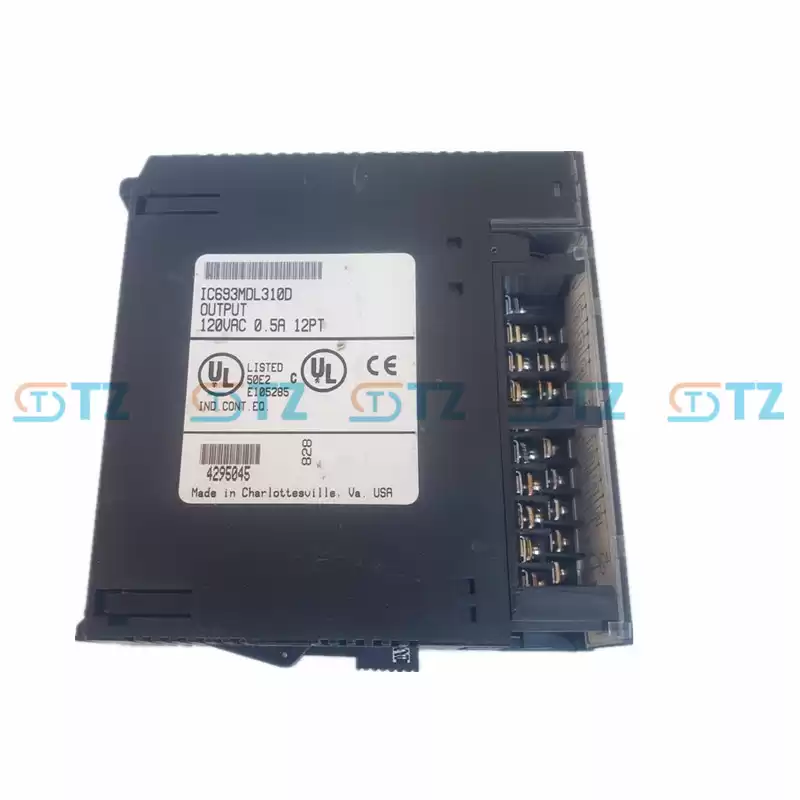

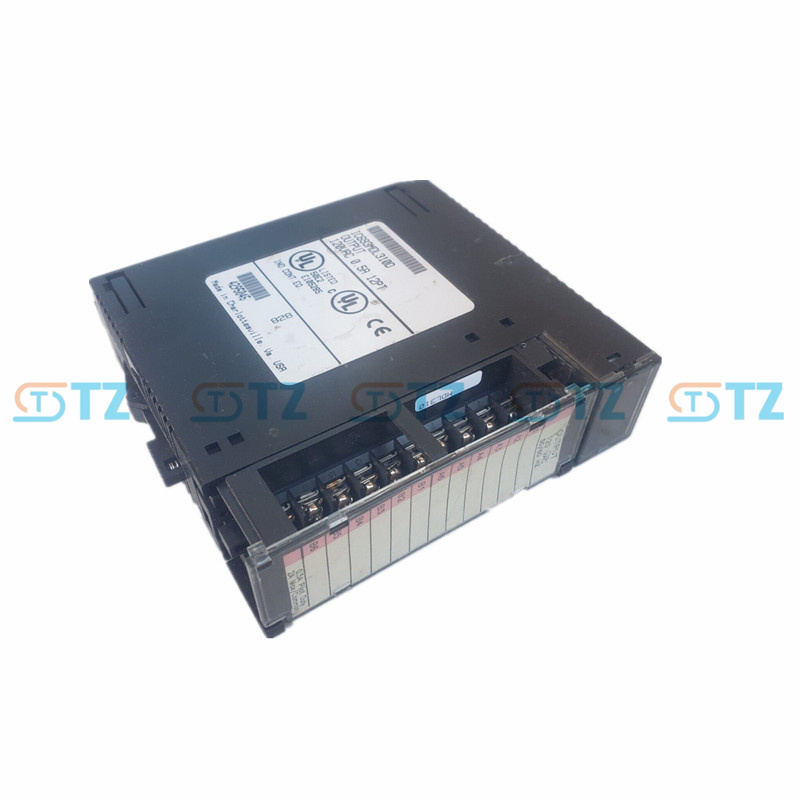

Rated Voltage: 120 volts AC
Output Voltage Range: 85 to 132 volts AC, 50/60 Hz
Outputs per Module: 12 (two groups of six outputs each)
Isolation: 1500 volts between field side and logic side
Output Current:
500 volts between each group
0.5 amp maximum per point
1 amp maximum per group at 60 °C (140°F)
2 amps maximum per group at 50 °C (122°F)
Inrush Current: 5 amps maximum for one cycle
Minimum Load Current: 50 mA
Output Voltage Drop: 1.5 volts maximum
Output Leakage Current: 3 mA maximum at 120 volts AC
On Response Time: 1 ms maximum
Off Response Time: 1/2 cycle maximum
Power Consumption: 210 mA (all outputs on) from 5 volt bus on backplane
