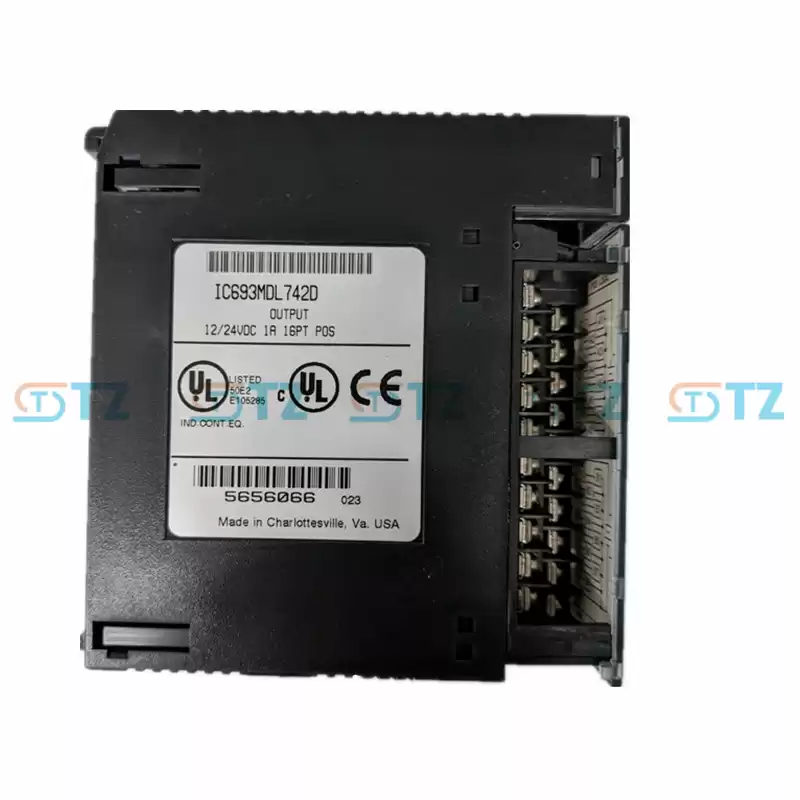

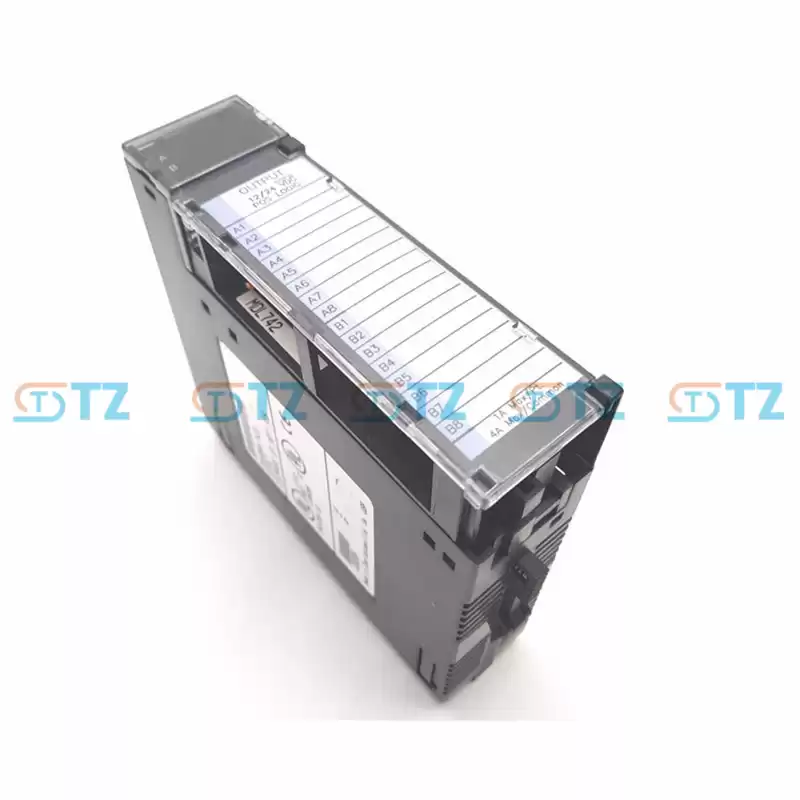

Rated Voltage: 12/24 volts DC
Output Voltage Range: 12 to 24 volts DC (+20%, –15%)
Outputs per Module: 16 (two groups of eight outputs each)
Isolation:
1500 volts between field side and logic side
500 volts between groups
Output Current:
1 amp maximum per point
4 amps maximum per group at @ 50 °C
3 amps maximum per group @ 60 °C
Inrush Current: 5.2 amps for 10 ms
Output Voltage Drop: 1.2 volts maximum
Off-state Leakage: 1 mA maximum
On Response Time: 2 ms maximum
Off Response Time: 2 ms maximum
Power Consumption: 130 mA (all outputs on) from 5 volt bus on backplane
All items are Distributor Ready-stock Genuine Brand-new Supplying, please inform us if the other conditions are needed, Used, Open-box, Refurbished, etc.
Allen Bradley - CompactLogix; ControlLogix, Flex I/O, MicroLogix, etc.
Siemens - Simatic S7-300; S7-400; S7-1200; S7-1500; HMI 6AV etc.
ABB - Advant 800xA S800; S200; S400; S500; S600; S700; S900 etc.
GE Fanuc - 90-30; 90-70; PACSystems RX3i, etc.
Honeywell - Experion® PKS; ControlEdge™ HC900; etc.
Many Available just wait for you, feel free to ask to get better deal!!!
