module are capable of switching loads from +12 through +24 VDC (+20%, –15%). They can also source current to a maximum value of 0.5 amps per point. In the group commons, there are user I/O connectors.
|
|
|

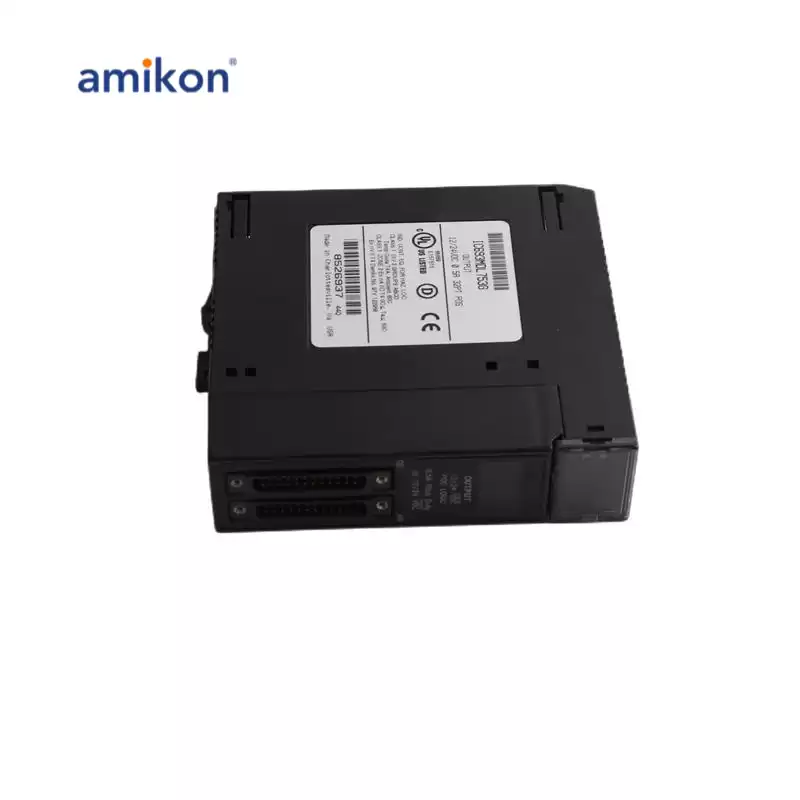

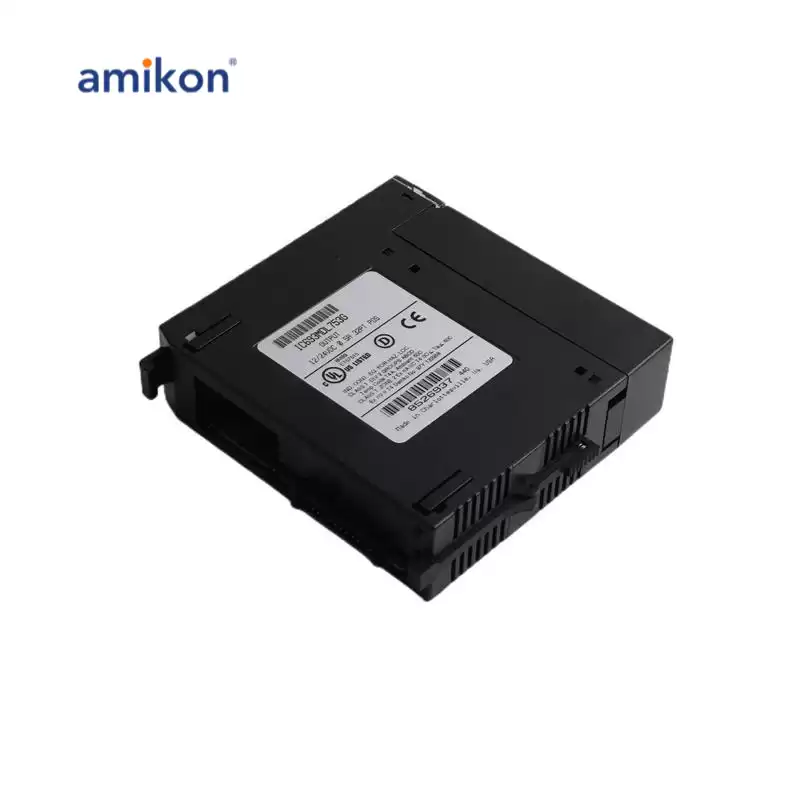

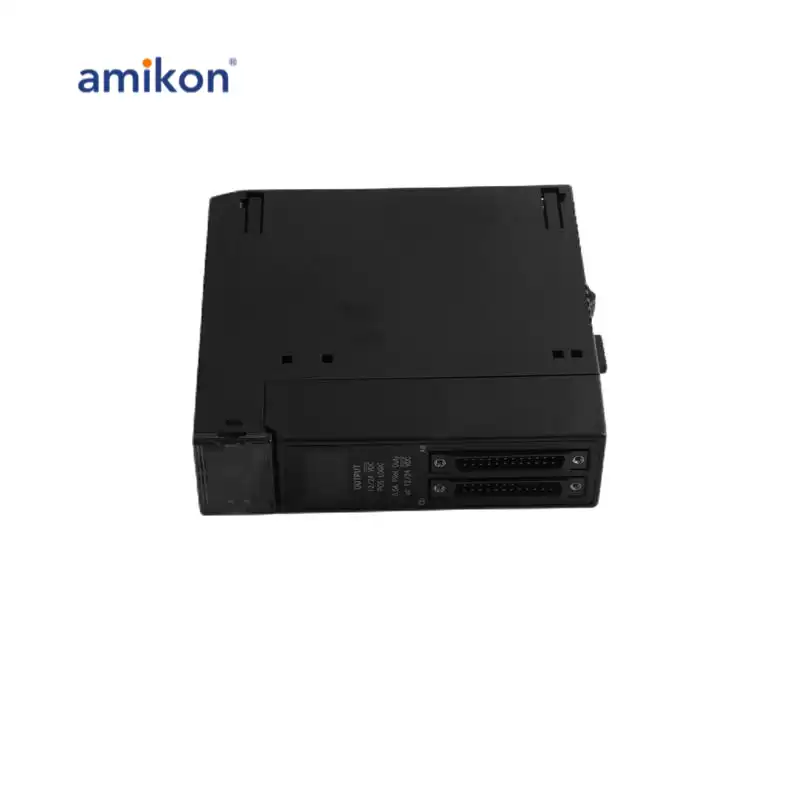

IC693MDL753 Data sheet
|
Each connector has two pins, which can handle up to 3A current. When the user is connecting the group common, it is advised that connections be made to both pins.
|
|
Designed for the Series 90-30 Programmable Logic Controller, this output module is equipped with 32 discrete outputs. These outputs have been set up in four separate isolated groups of eight.
|
|
Each group has its own dedicated common. As they are sourcing type outputs, they switch the loads on the positive side of the power supply to supply current to the load.
|
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
