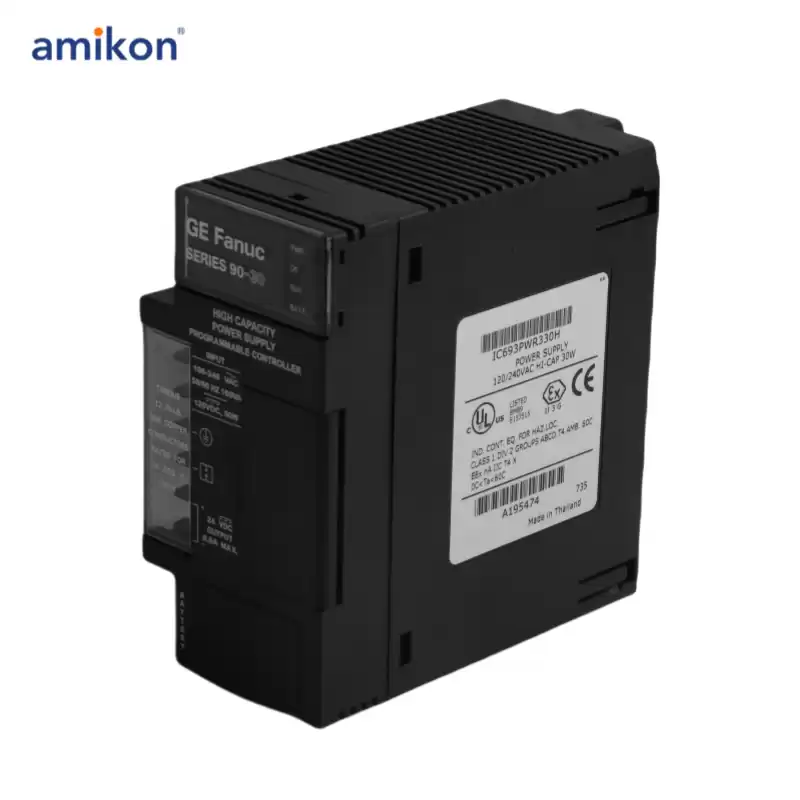

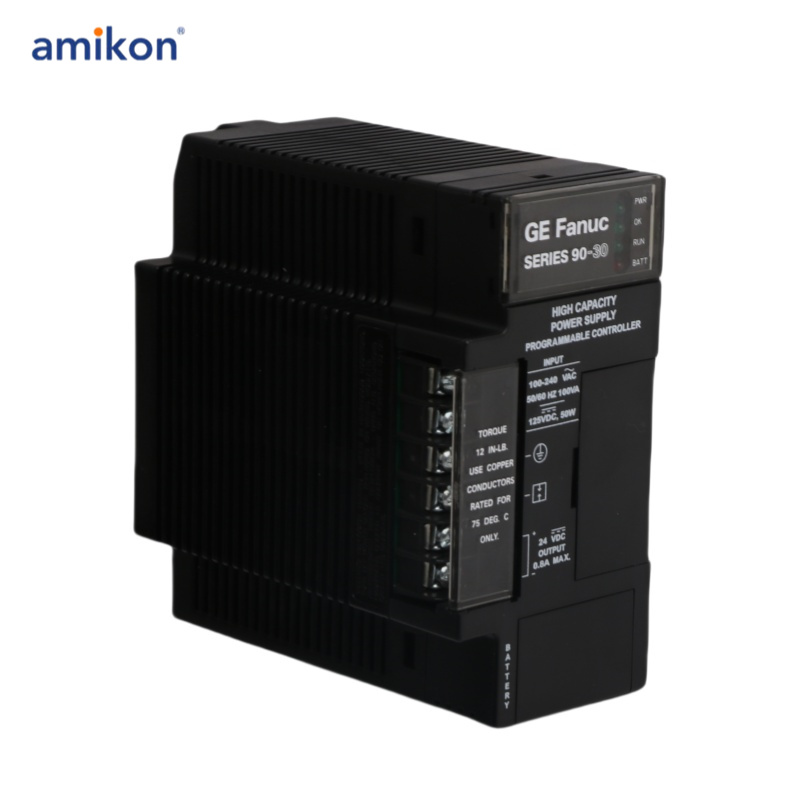

The IC693PWR330 is a High-capacity power supply module that is part of the Series 90-30 Programmable Logic Controller (PLC) product family. Compared to standard power supplies, the IC693PWR330 high-capacity power supply module is permits consumption of all the 30 Watts load capacity to the +5VDC output. This allows the power supply to be used in application where the +5VDC requires higher current capacity, typically, in larger 90-30 PLC rack. This power supply can only be installed in the left most slot of the rack. It is mainly used to provide backplane power, to enable modules that are attached to the backplane.
The IC693PWR330 has Three (3) outputs. Theses outputs are +5 VDC output, +24 VDC Relay power output that supplies power to the electronic circuitry on Series 90-30 Output Relay and Isolated +24 VDC, internally used by some 90-30 modules, which may also be used to provide external power for 24 VDC Input cards. This power supply has 30 Watts load capacity. This load capacity are the total combined load of all outputs. Individually, individual maximum outputs 30 Watts for +5VDC, 20 Watts for +24VDC and 15 Watts for +24VDC Relay output.
|
Part Number
|
IC693PWR330
|
|
Series
|
90-30 PLC
|
|
Brand
|
GE Fanuc
|
|
Product Type
|
High-capacity power supply
|
|
Protocol Support
|
RS485
|
|
No. of Outputs
|
Three (3)
|
|
Nominal Rated Voltage
|
120/240 VAC or 125 VDC
|
|
Input Voltage Range, AC
|
85 to 264 VAC
|
|
Input Voltage Range, DC
|
100 to 300 VDC
|
|
Inrush Current
|
4A peak, 250 milliseconds maximum
|
|
Holdup Time:
|
20 milliseconds, minimum
|
|
Description
|
Power supply device
|
|
Voltage
|
120/240 Volts AC , 125 VDC
|
|
Power
|
30 watts
|
|
Communication
|
RS 485
|
|
Protective limit
|
5 VDC for overvoltage, over current
|
|
Standards
|
CE, UL
|
