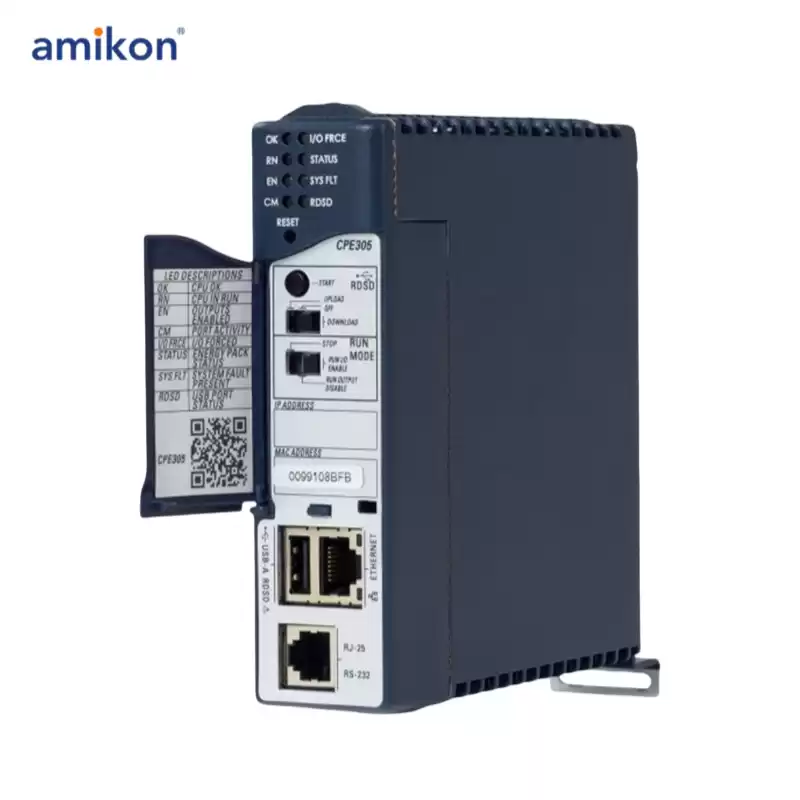

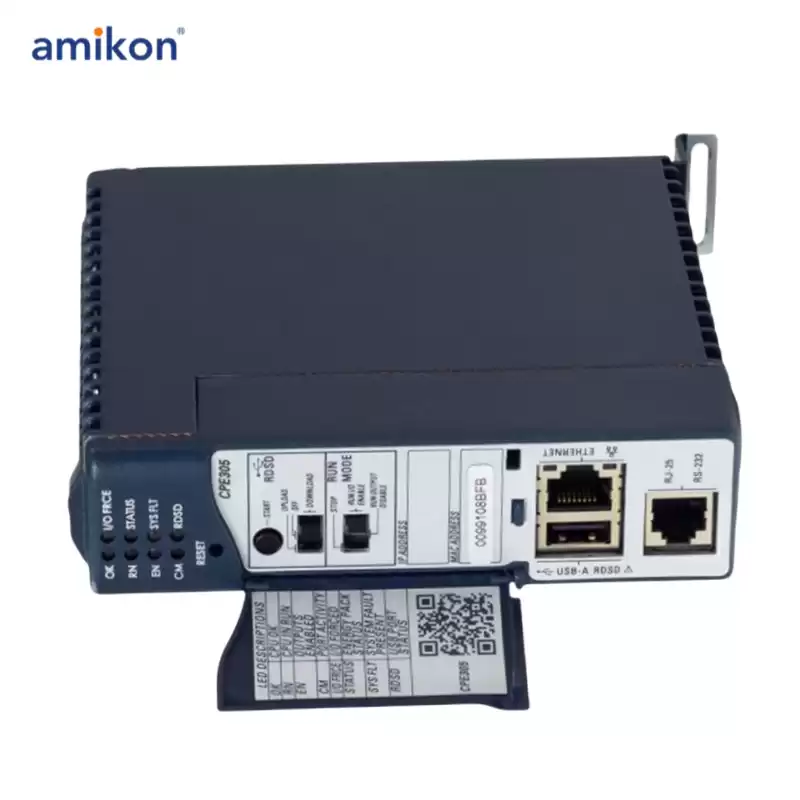

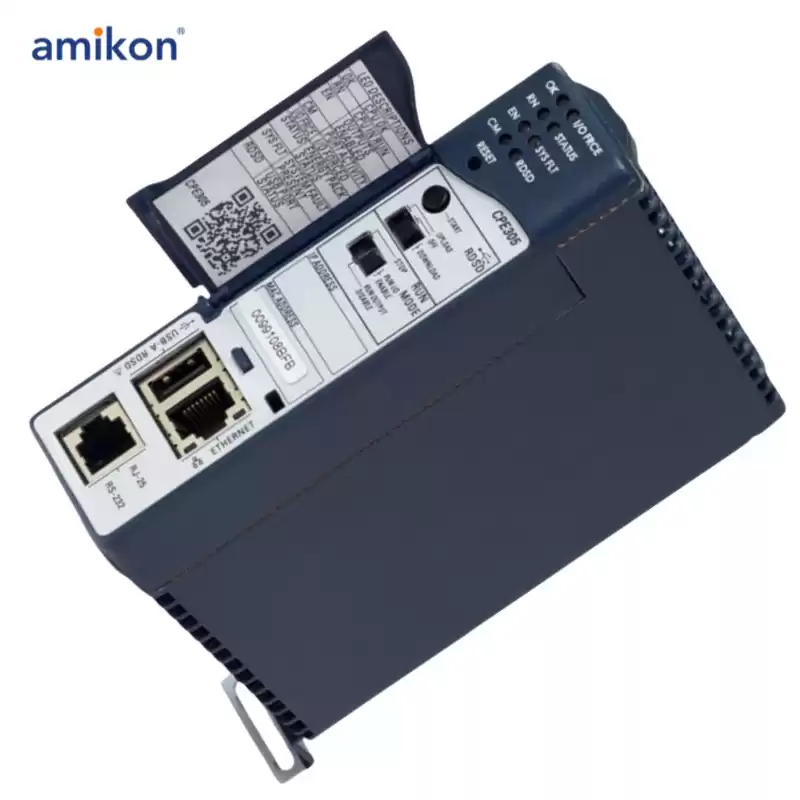

IC695CPE305CA-BCAD IC695CPE305CA PACSystems™ RX3i controllers provide the foundation for Industrial Internet connectivity. It is a powerful, modular Programmable Automation Controller with a focus on high availability. The RX3i features a single control engine and a universal programming environment to provide application portability across multiple hardware platforms.
|
Form Factor:Backplane
User Memory:6MB
I/O32k Bits Discrete I/O: 32k Words for Analog I/O
Energy Pack: Included
Redundancy Support: Media Redundancy (MRP) with PNC001
Ethernet Port: 2 - 2 port switch 10/100/1000
Ethernet Protocols: SRTP Client/Server, Modbus TCP/IP, OPC UA , EGD, PROFINET, DNP3 Outstation, IEC-61850 Client, IEC-104 Server, HART passthrough
Serial Protocols: ASCII Serial, Modbus/RTU
Remote I/O Devices: 255 Simplex with PNC001
USB Interface: 1x USB-A 2.0
Environmental: 0 to 60C
Agency Approvals: UKCA, UL, cUL, RoHS, CCC, FCC, Reach, UL HazLoc C1D2, ATEX Zone 2
Marine Certifications: ABS, BV, LR. DNV GL
|
