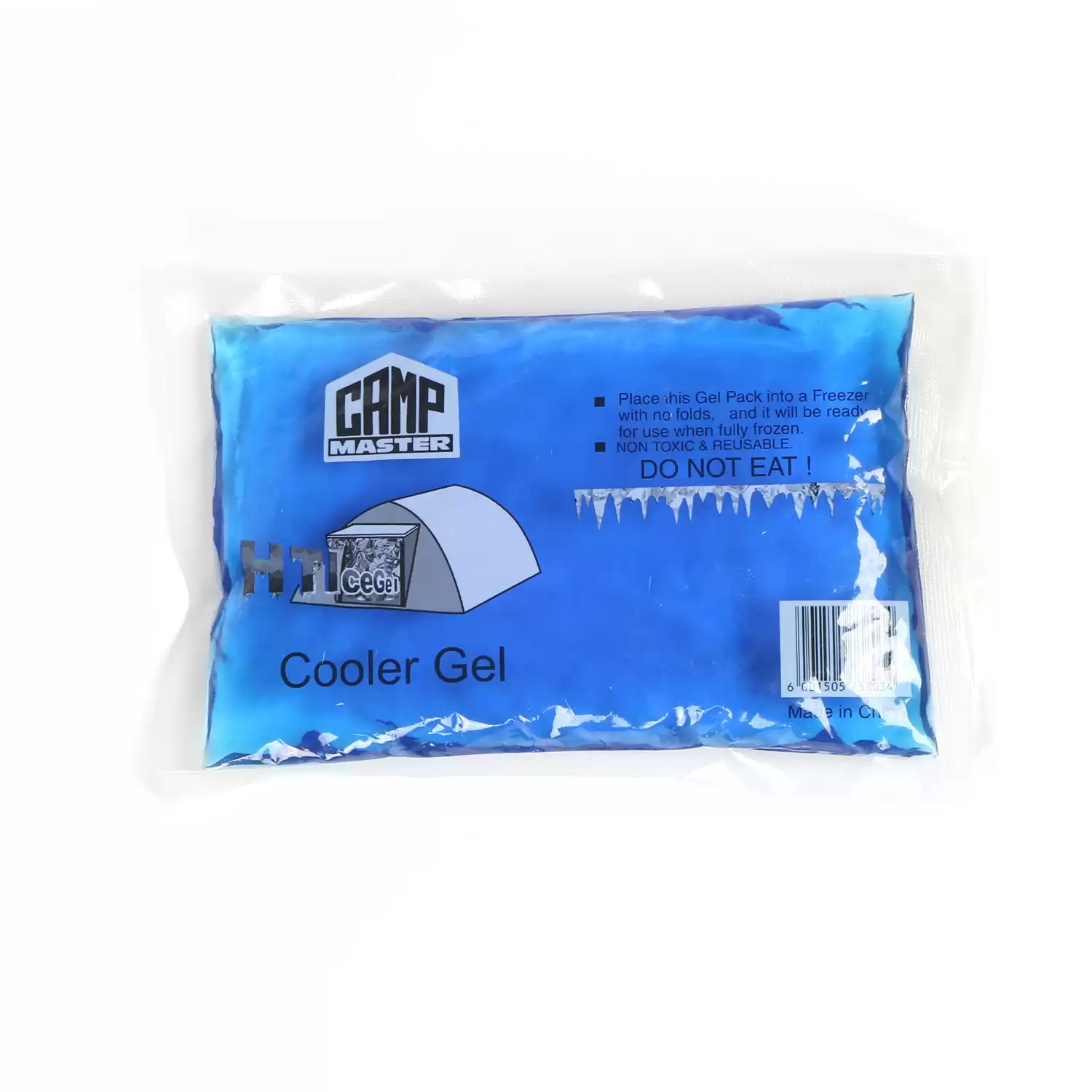

ice pack for vaccine carrier
1.size:19.5*13 cm
2.weight:300g +/-20g
3.Non-toxic,non-caustic,reuable
1 product info.
|
Features
|
Specification
|
Advantage
|
|
Dimensions
|
Outer: 195*130 mm
|
Pad shape, Good for narrow Insulated Ice pocket
|
|
Materials
|
Outer: Sealed rotational moulded polypropylene
|
Durable,waterproof outer ; Phase changing solution; gives a long service life and provides longest cold life. Semi-transparent, neutral color gel at ambient temperature. Opaque solid when less than 0°C. No hazard during normal use and handling.
|
|
Inner: Super Absorbent Polymer (Sodium polyacrylate)
|
|
Stability and Reactivity
|
Stable under normal temperatures and pressures.
|
provide a safe cold chain environment to ensure product protection and quality
|
|
Cold life
|
>2 hours at 2°C to 8°C in an ambient temperature of 43°C
|
Depends on outer cooler used and ambient temperature
|
|
Weight
|
290g
|
Light and easy to carry, save on transportation costs
|
|
Carton size
|
37*26*18.5cm/50pcs
|
Save on packing and transportation cost
|
1.1 Application of ice pack:
Specially for Cold Chain Bags and Boxes to hold temperatures within essential safe temperature limits without electricity during transport or use for:
--Vaccines
--Insulin
--Biopharmaceutical, Life Science and other Medical Products
--IVD products and biological specimens
--Selected fresh food, drink and dairy products
1.2 Usage of ice pack:
Before using, wipe the non toxic sealed HT Ice Bricks dry, and place into a freezer until they are fully frozen (about 10 hours). If using HT Ice Packs, fill with clean fresh water, firmly replace the screw cap, then follow the same procedure.
Remove the frozen packs from the freezer, and place every pack into the box in the positions indicated, and close the lid.
When the temperature of the box reduces to below 8oC, open the lid and place the contents to be kept cold in the Cold Chain Box. Close the lid.
1.3 Notes of ice pack:
When not using your Cold Chain Box, store your sealed HT Ice Bricks and water filled Ice Packs in the freezer - then they will be ready for using just when you want them.
For longest cold life, make sure that the temperature of the contents to be loaded into the Cold Chain Box is below 8oC.
2 shipping & payment
|
MOQ
|
30,000pcs
|
|
Samples
|
Sample lead time:3-5 days
|
|
The freight should be paid by buyers
|
|
Packing detail
|
Carton size: 37* 26 * 23cm
|
|
50pcs in one Carton
|
|
N.W.: 15kgs G.W.: 16.5kgs
|
|
Bulk lead time
|
30 days after sample approval
|
|
Delivery Clause
|
FOB Xiamen
|
|
Terms of payment
|
T/T, L/C at sight
|
