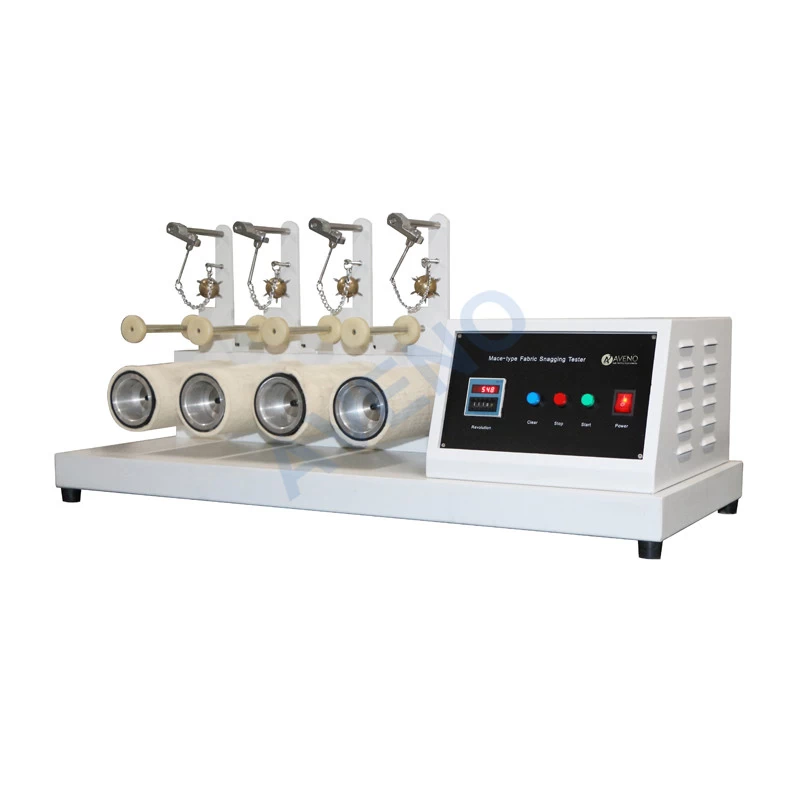

AG07-ICI Mace Snag Tester
Application Of ICI
Mace Snag Tester
ICI mace snag tester applies to rapid determine
the snag resistance of fabric, (pull yarn loops from fabric). And suitable for
woven and knitted fabrics made by textured yarn, non-textured yarn, and spun
yarn, etc.
Standards Of ICI Mace Snag Tester
ASTM D3939, GB/T
11047, JIS L1058.
Key Specification Of ICI Mace Snag
Tester
|
Mode
|
AG007-1
|
AG007-2
|
|
Test position
|
2
|
4
|
|
Test speed
|
60±2 r/min
|
|
Testing Cylinder
|
φ82mm, width 210mm
|
|
Mace ball
|
Weight 160±10g, 11mace
|
|
Mace
|
Length 10±1, Tip radius R0.13mm
|
|
Felt thickness
|
3-3.2mm, Width 165mm
|
|
Guide rod working width
|
125mm
|
|
Distance between nail hammer and guide rod
|
45mm
|
|
Counter
|
0-9999
|
|
Power Supply
|
AC220V, 50/60HZ
|
