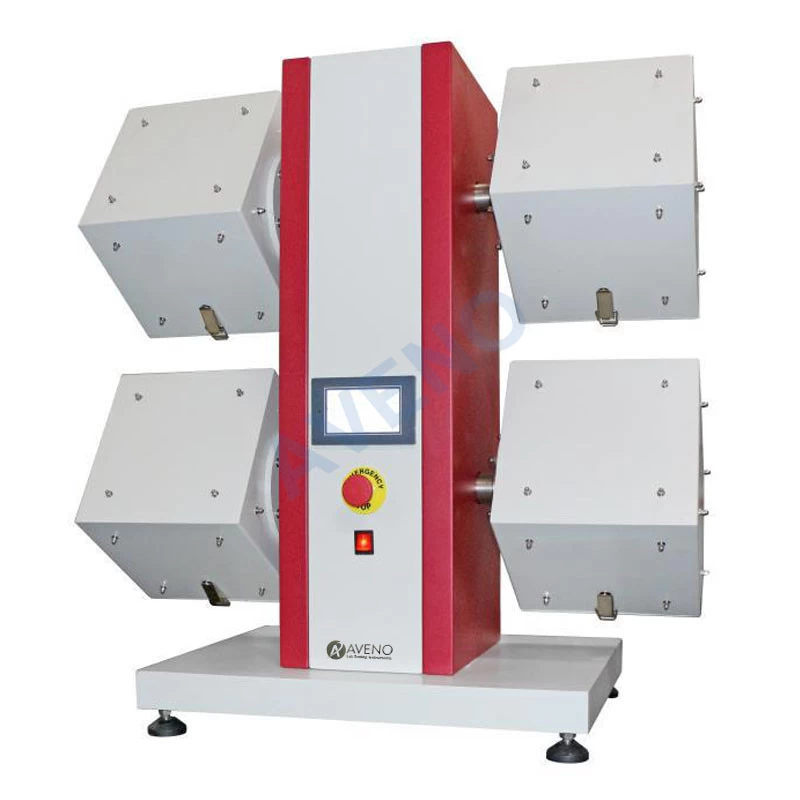

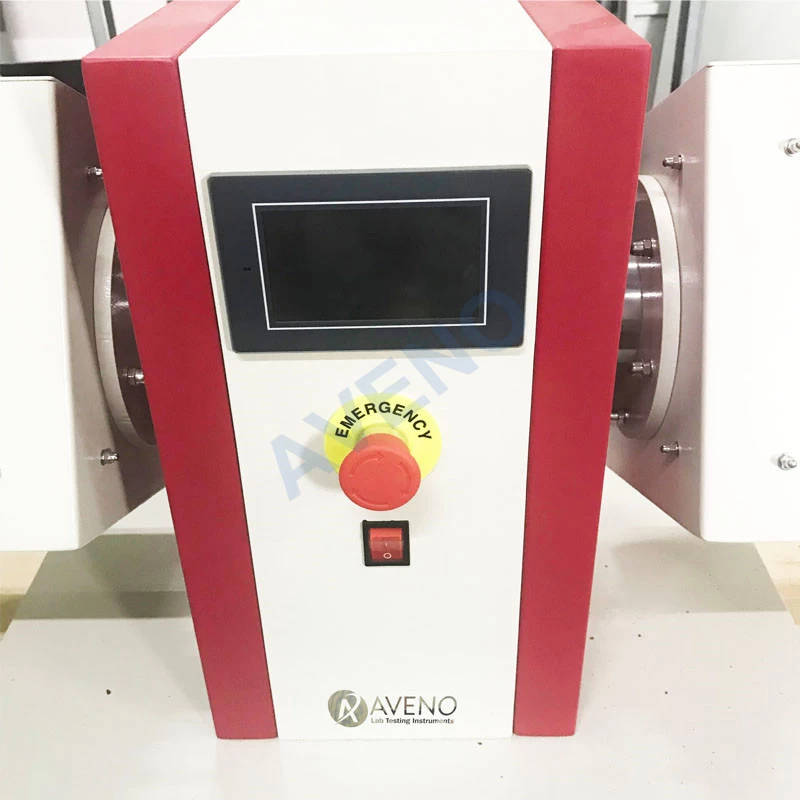

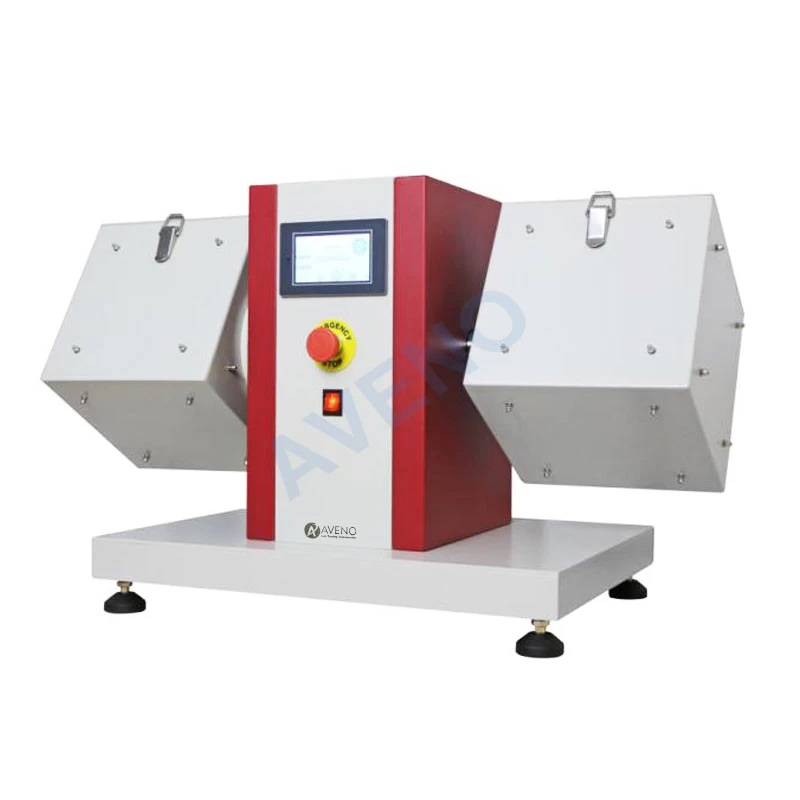

ICI Pilling and Snagging Tester AG05

ICI Pilling and Snagging Tester is used to determine the surface fuzzes and pilling properties of both woven and knitted materials. It complies in full with the requirements of EN ISO 12945-1 and BS 5811, etc.



AG05- ICI Pilling and Snagging Tester



Application Of ICI Pilling and Snagging Tester

ICI Pilling and Snagging Tester is used to determine the surface fuzzes and pilling properties of both woven and knitted materials. It complies in full with the requirements of EN ISO 12945-1 and BS 5811, etc.


Standards Of ICI Pilling and Snagging Tester

EN ISO 12945.1

IWS TM 152,BS 5811, JIS L1058 L1076

M&S P18A P18B


Key Specification Of ICI Pilling and Snagging Tester

Model

AG05 ICI Pilling and Snagging Tester

Quantity of pilling box

2box

4box

6box

Inter size of box

235×235×235mm

Rotational speed

60-80 r/min, can be set

Count range

0-99999

Timer range

0~99h 99min

Sample tubes

Φ31.5×140 mm,  weight 52.25g

Sample size

125mm×125mm

Power Supply

AC220V, 50/60HZ

Dimension

82×42×55cm

82×42×85cm

90×51×120cm

Weight

40kg

60kg

142kg


Accessories Of ICI Pilling and Snagging Tester

Standard Accessories

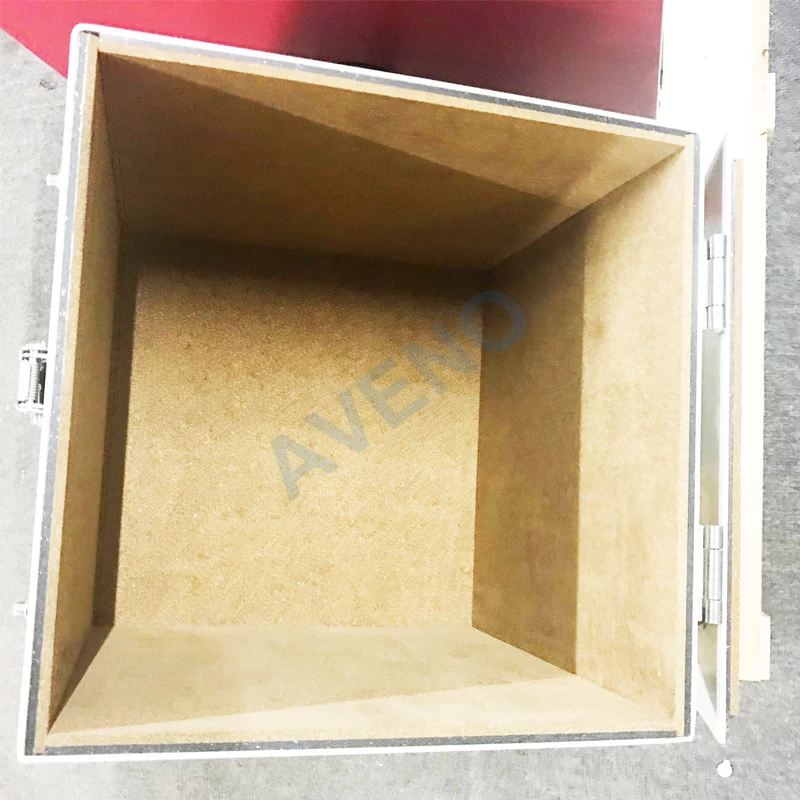

Cork lining

6pcs each box

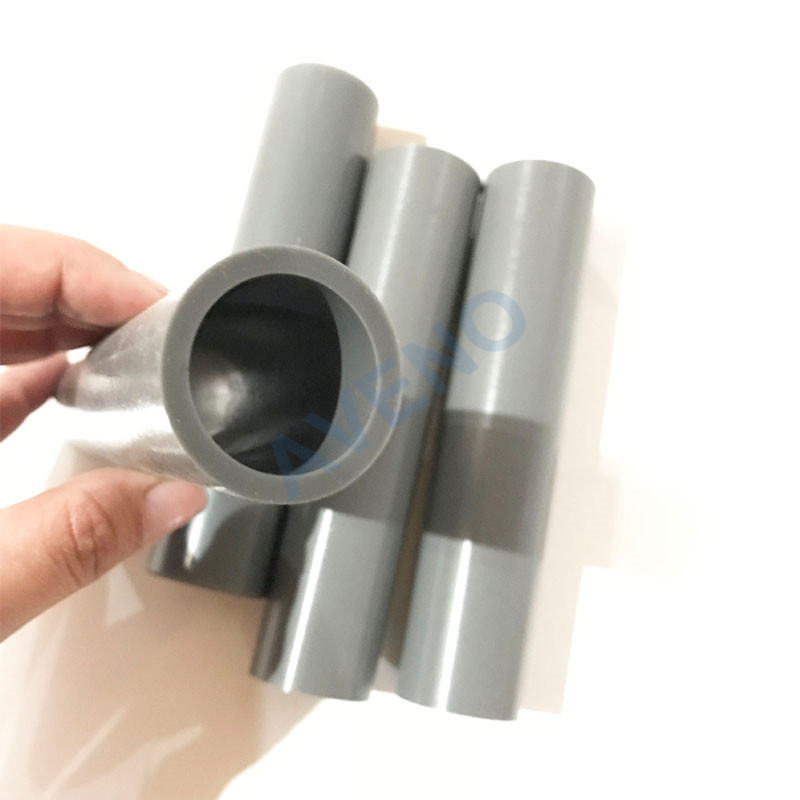

Polyurethane sample tubes

4pcs each box

Sample template

1pc

Power line

1pc

Option Accessories

JIS L1058 square snagging test box

BS 8479 octagon snagging test box

M&S P18A, 18B round pilling test box



Related products

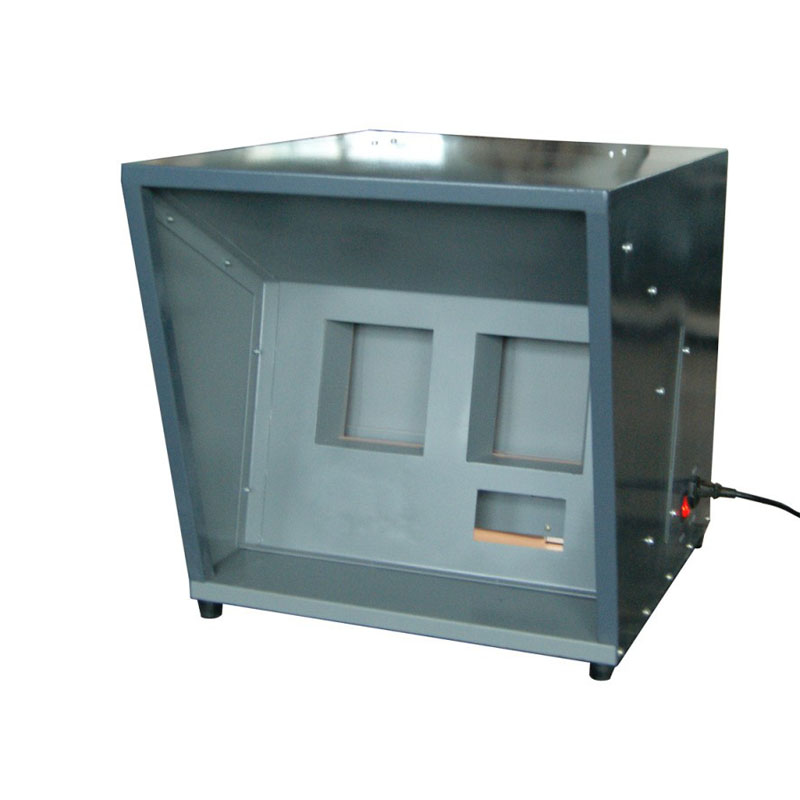

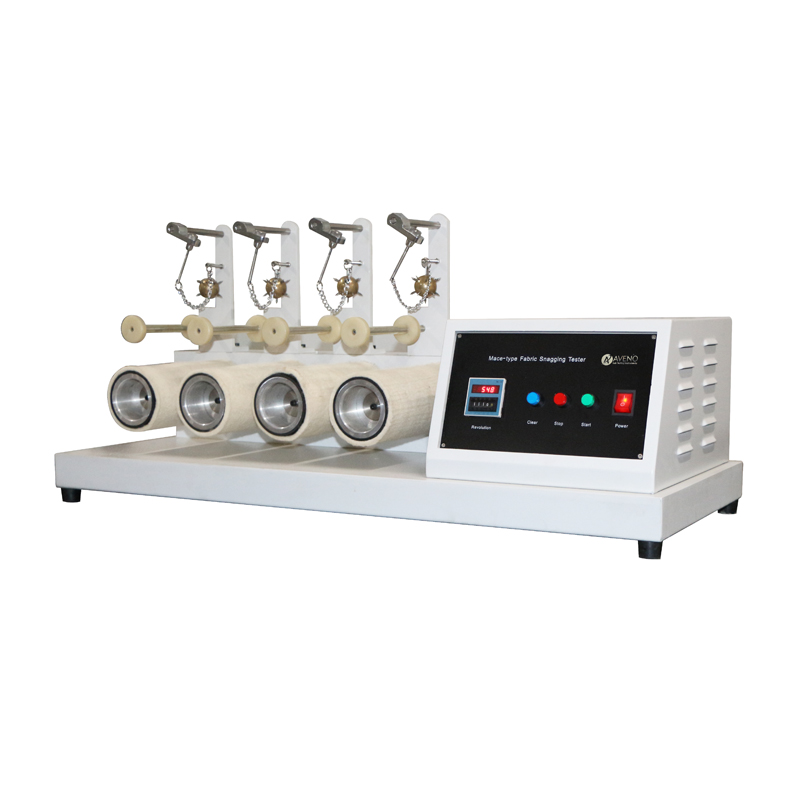

Martindale Abrasion and Pilling Tester         ICI Mace Snag Tester                   Snagging Assessment Box
