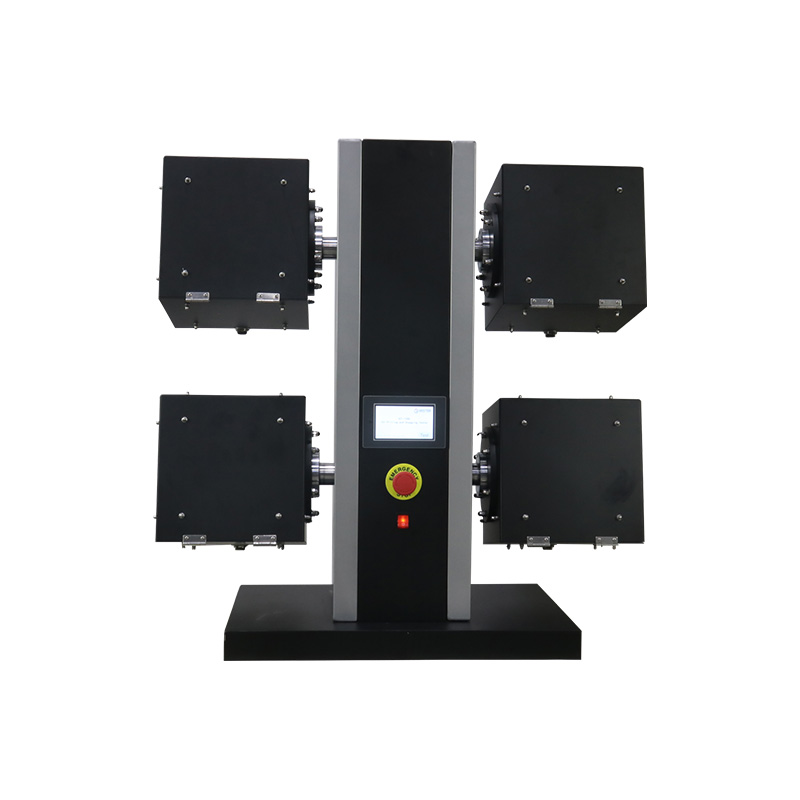

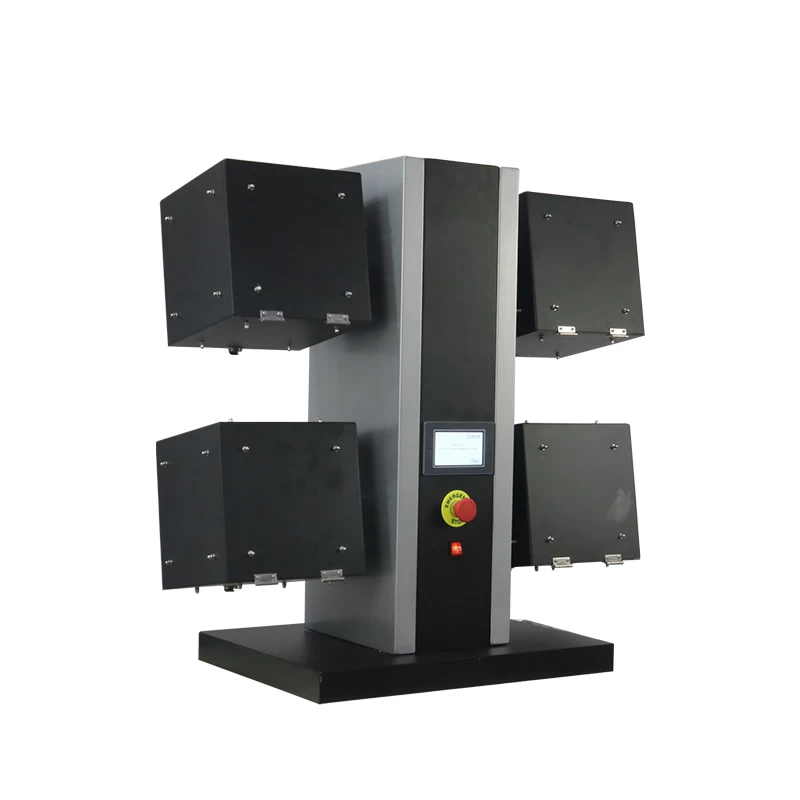

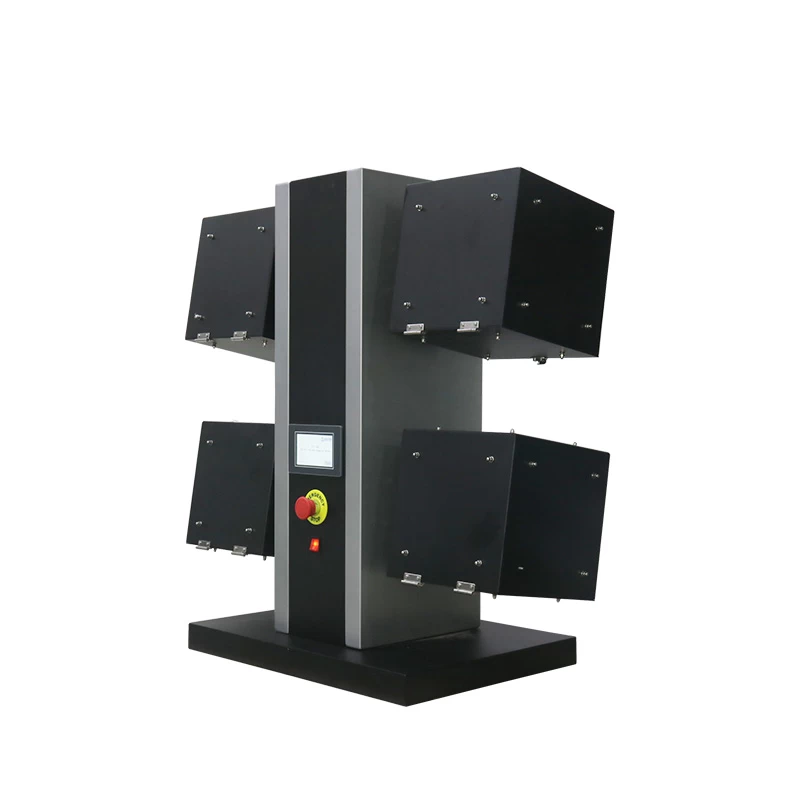

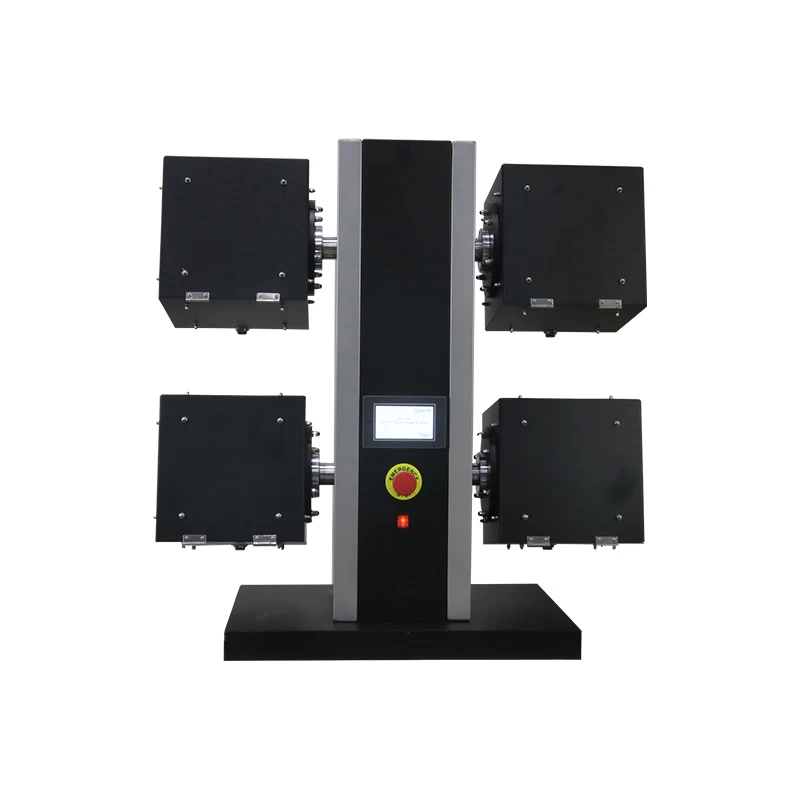

ICI Pilling Box Tester GT-C18

ICI Pilling Box Tester is to determine the surface pilling and snagging properties of both woven and knitted materials.



ICI Pilling Box Tester GT-C18


Product Introduction of ICI pilling box

Application:

ICI Pilling Box Tester is used to rapidly replicate pilling on fabrics in a fraction of the time due to normal wear. then determine surface pilling and snagging properties of both in woven and knitted fabrics.


ICI Pilling Tester complies with ISO12945-1, BS 5811 etc. ICI pilling tester uses a universal drive system with 2 or 4 position, electronic digital counter, and sample mounting fixture. The machine accepts ICI Pilling boxes and ICI pilling drums.


Specimens are mounted on polyurethane tubes and tumbled randomly under defined conditions in a cork lined box. Pilling is assessed visually after a defined period of tumbling.

Contact us for more information about ICI pilling test method.


Standards:

GB/T4802.3, ISO 12945.1, BS5811, IWS TM152


Feature of ICI pilling box

  • Simplified designing, more convenient to operate, and easy to maintain.

  • Synchronous speed motor drives the test boxes, ensuring constant speed of rotation.

ICI Pilling and Snagging Tester



Key Specifications of ICI pilling tester



Model

GT-C18

Number of pilling boxes

2 Boxes

4 Boxes

9 Boxes

Rotational speed

60±2 rpm

Internal dimensions

235×235mm

Count range

0-99999

Polyurethane sample tubes

External dia.: 31.5±1mm; L:140±1mm; thickness: 3.2±0.5mm;

Power supply

AC 220V 50/60HZ

Dimensions (L x W x H)

120x 50x 50 cm

120x 50x80 cm

140x 50x 160 cm

Weight

40kg

60kg

180kg

Standards

GB/T4802.3, ISO 12945.1, BS5811, IWS TM152



Standard accessories

6pcs /each box

Cork lining

4pcs /each box

Polyurethane sample tubes

1pc

Sample template

1pc

Power line



Optional accessories

Optional

Pilling specimen mounting device

Optional

Standard photographs

Optional

GT-C78 Pilling Assessment Box

Optional

M&S Random Tumble Pilling/

Snagging Drum complete with Liner,

Step, and 8 polyurethane sample

mounting tubes with locking rings -

M&S suppliers only.



Application Industry of ICI pilling box

All kinds of below materials can be tested on the ICI Pilling Box Tester GT-C18

 ICI Pilling and Snagging Testing Equipment
