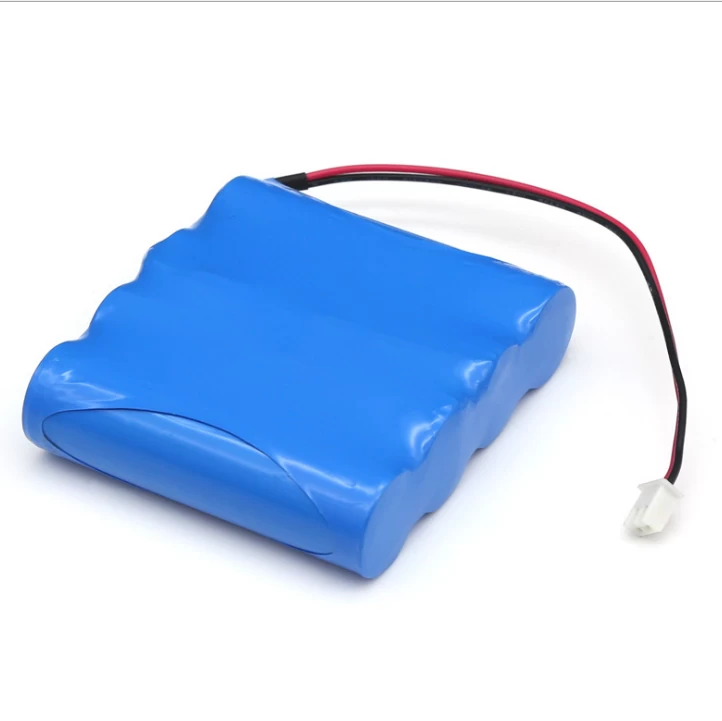

ICR18650 4S1P 14.8V 2200mAh battery pack for detector


  • Weight (g)195
  • Dimension (mm)101 X 76 X 28mm
  • Nominal Voltage (V)2200mAh
  • Nominal Capacity (mAh)14.8
  • Internal Impedance (mΩ)150

ICR18650 4S1P 14.8V 2200mAh battery pack for detector


S/N

Details

Parameters

Remarks

1

Rated voltage

14.8V

2

Rated capacity

2200mAh

discharge with 0.2C to 5.5V after fully charge within 1h, measuring the discharge time

3

Limited charge voltage

16.8V

4

Internal resistance



5

charge mode

C.C/C.V.

6

Standard charge current

440mA

0.2C

7

Max Charge Current

2200mA

1C

8

Standard discharge current

440mA

0.2C

9

Max Discharge current

Continuous: 2200mA

1C

10

Working temperature

charging

0~45

discharging

-10~60

11

Storage temperature

1 Month

-10~45

Charge to 40%~50% of capacity when storage

6 months

-10~30

12

Storage humidity

45%~75

relative humidity

13

Weight

Approx 200g

14

Cycle life

300 times

capacity≥80%
