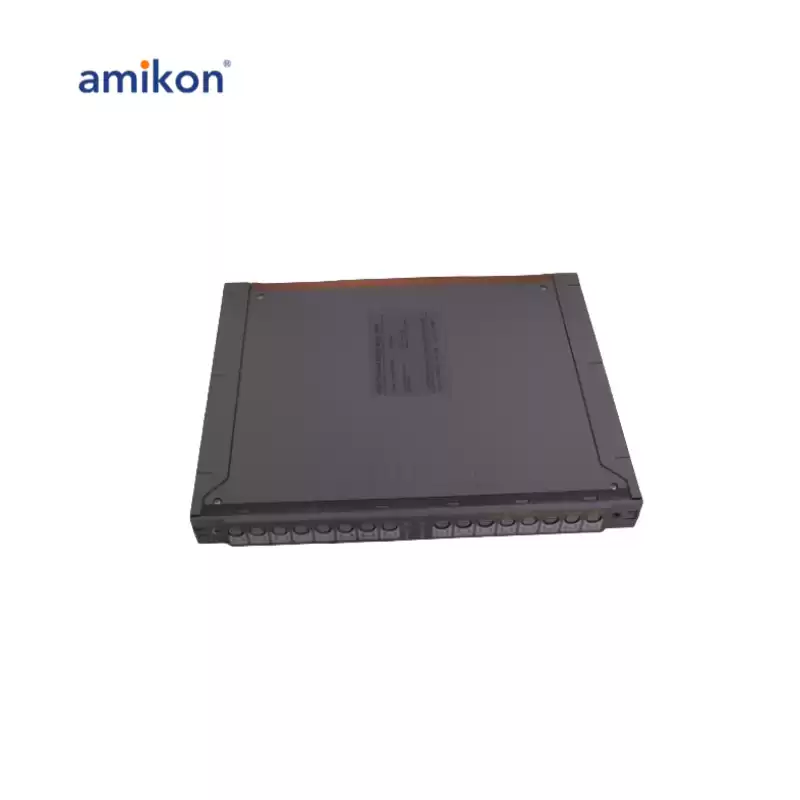

ICS Triplex Automation T8240 I/O Chassis

The T8240 module provides fault containment for the Expander Bus, the module itself, and the IMB in the Controller Chassis, ensuring that any faults are localized to minimize their impact and maximize system availability. It supports the Expander Bus, enabling the implementation of multiple chassis systems via UTP cable connections, while maintaining the fault-tolerant, high-bandwidth capabilities of the IMB. The module features fault tolerance with HIFT TMR architecture, and includes comprehensive diagnostics, monitoring, and testing for rapid fault identification. Additionally, it supports hot standby and module spare slot configurations, allowing both automatic and manual repair strategies.

FAQ for T8240 Module
Q1: What is the T8240 module used for?
A1: The T8240 module is used to provide fault containment for the Expander Bus, the module itself, and the IMB in the Controller Chassis. It ensures that faults are localized to minimize their impact and maximize system uptime.

Q2: How does the T8240 support multiple chassis systems?
A2: The T8240 supports the Expander Bus, which allows multiple chassis systems to be implemented using UTP cable connections while maintaining the fault-tolerant, high-bandwidth capabilities of the IMB.

Q3: What fault tolerance features does the T8240 have?
A3: The module is designed with HIFT TMR architecture for fault tolerance. It also includes comprehensive diagnostics, monitoring, and testing to provide rapid fault identification.
