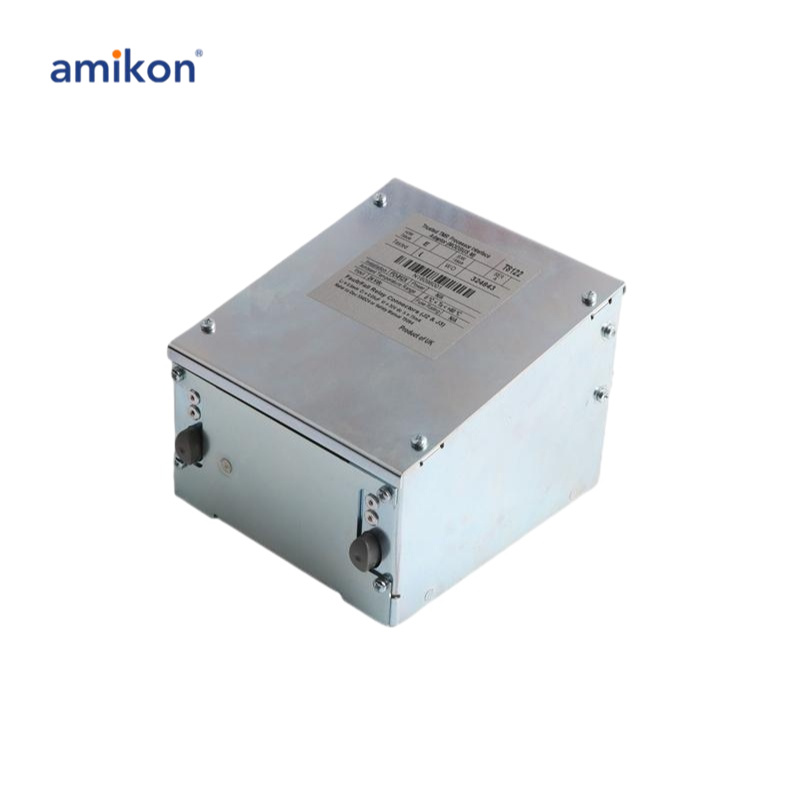

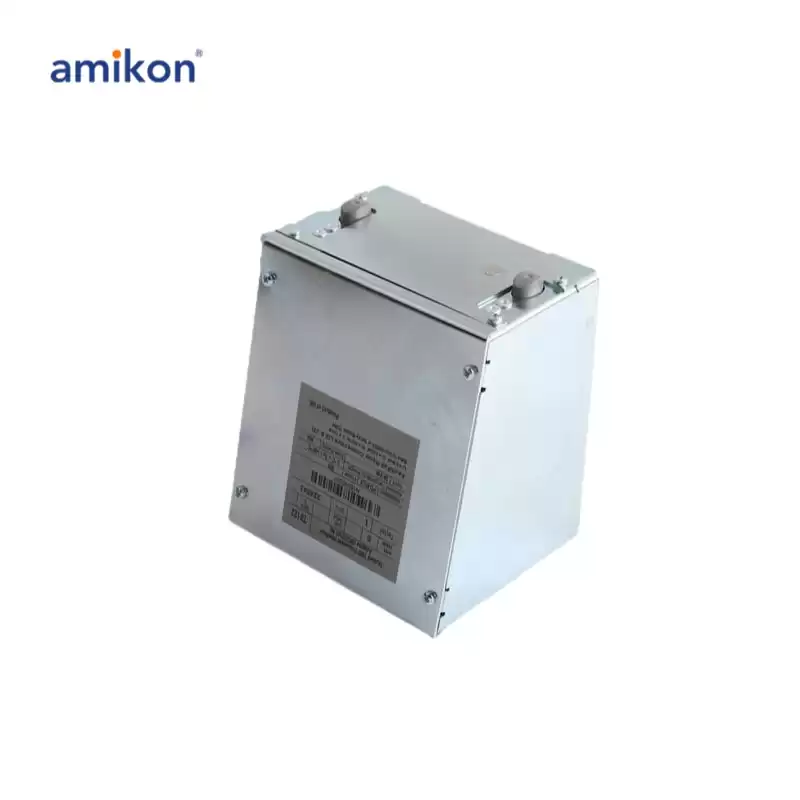

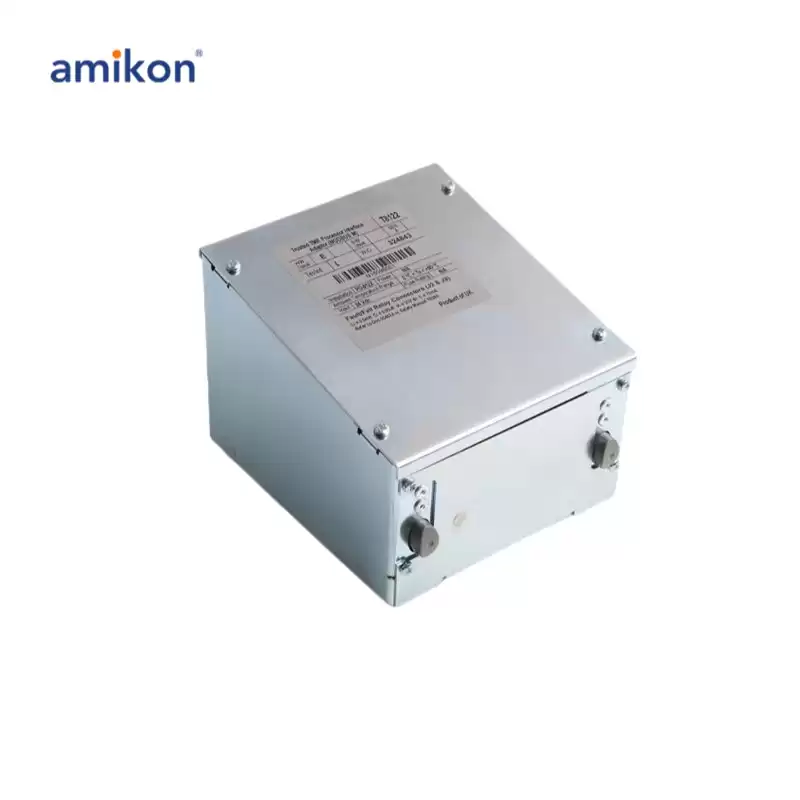

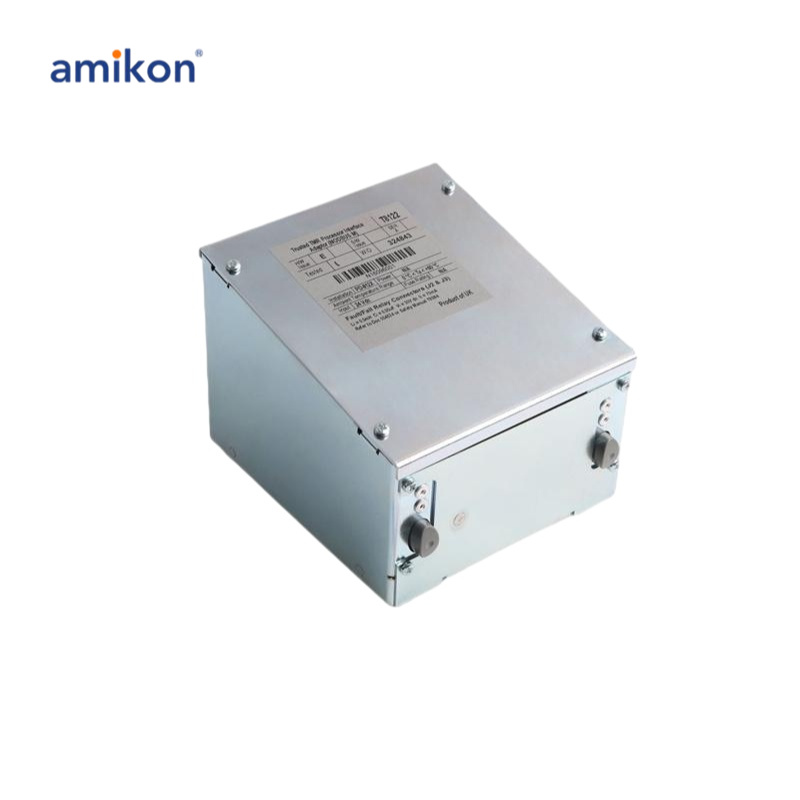

ICS Triplex Processor Interface Adaptor T8122

Product Model

 T8122

Product Parameters

Processor Interface Adaptor

Tariff Code

 T8122

Country of origin

USA

Place of shipment

 XIAMEN

Estimated Shipping Size

9.3cmx30.2cmx26.5cm

Manufacturer

 ICS TRIPLEX

weight

3.06KG

The Adapter provides easy access to the communications ports of the Trusted Triple Modular
Redundant (TMR) Processor (T8110B & T8111) in the Controller Chassis for the Distributed Control System (DCS) and other links. The unit is also used to enable a number of extended facilities available on the Trusted TMR Processor including facilities for the reception of IRIG-B time synchronisation signals, enabling the use of Dual (‘enhanced’) Peer to Peer and enabling the Trusted System to become MODBUS Master.

Features:
Allows easy access for external systems to communicate with a Trusted TMR Processor.
• Easy installation (connects directly to the rear of the Controller Chassis).
• Two RS422/485 configurable 2 or 4 wire connections.
• One RS422/485 2 wire connection.
• Fault/fail connections for Active and Standby Processors.
• Processor diagnostics connection.
• PSU shutdown monitor connections.
• Option for connecting IRIG-B122 and IRIG-B002 time synchronisation signals.
• Option to enable MODBUS Master on the Trusted Communications Interface.
