Manufacturer：
|
ICS Triplex |
|
Product Package：
|
Original Package |
|
Part Number：
|
T8310 |
|
Shipping Term：
|
TNT DHL FEDEX EMS UPS |
|
Product Description：
|
Trusted Expander Processor |
|
Dimensions:
|
39cmx17.8cmx9cm
|
|
Weight:
|
2.8kg |
|

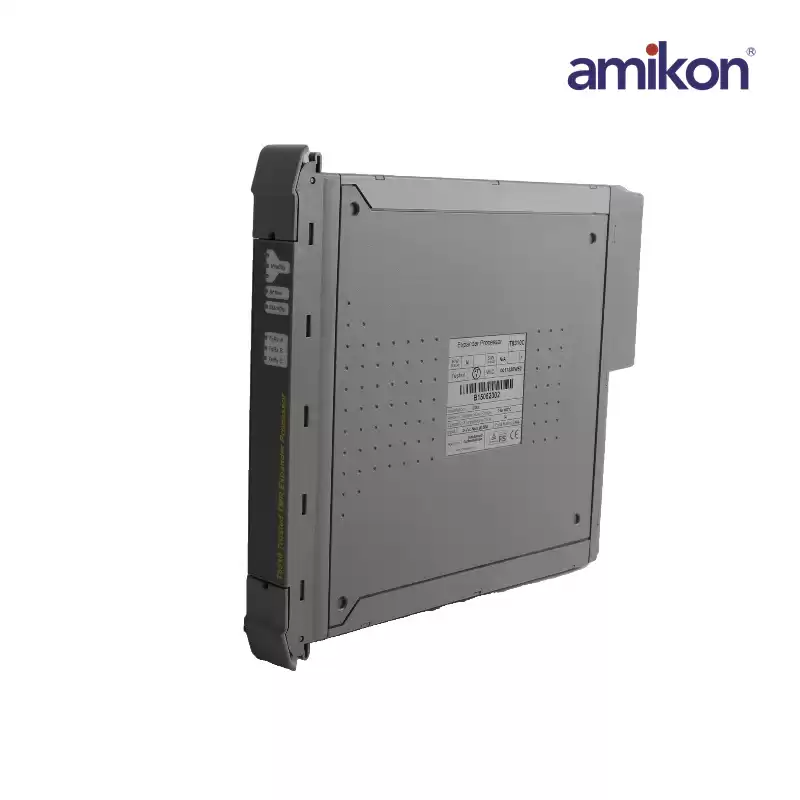

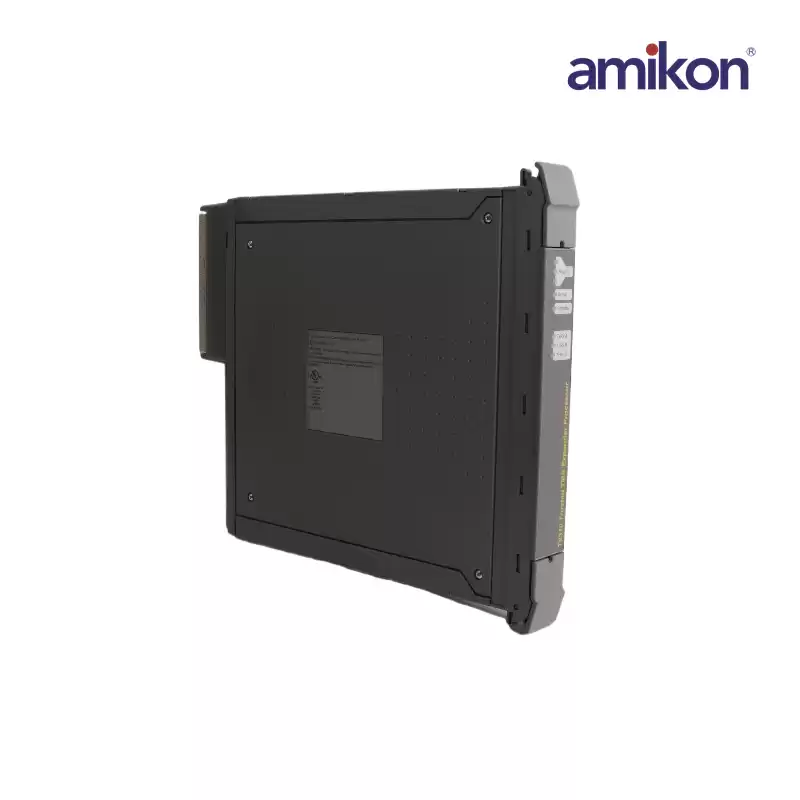

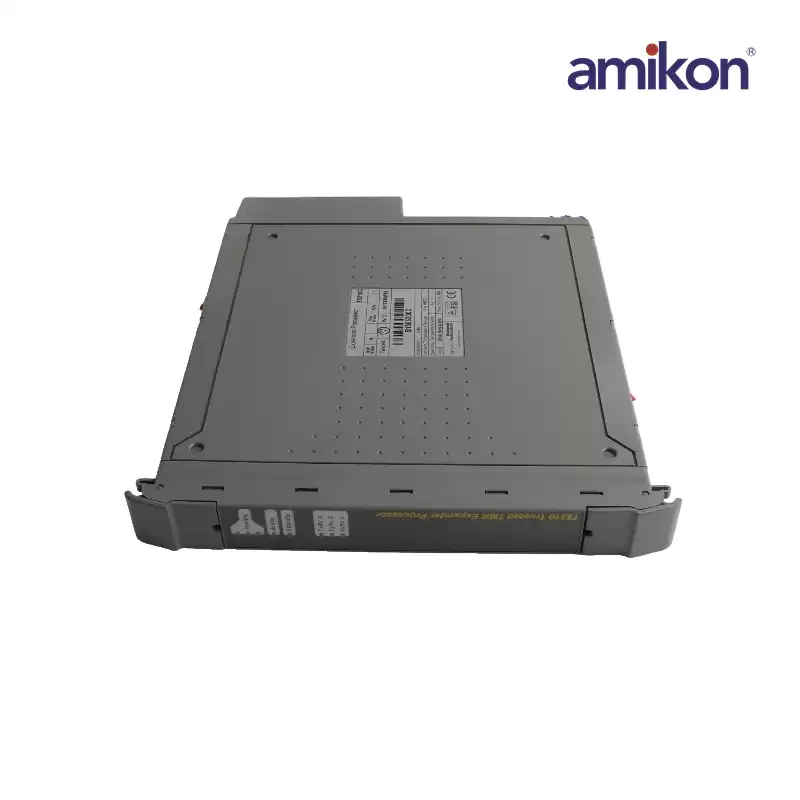

About T8310
The T8310 is a Trusted Expander Processor. The Module has three main fault containment regions (FCR A, B and C). Each of the main FCRs contains interfaces to the Expander Bus and Inter-Module Bus (IMB), an active/standby interface to the other TMR Expander Processor in the Chassis, control logic, communications transceivers and power supplies.Communication between the Module and the TMR Processor is via the TMR Expander Interface Module and the triplicated Expander Bus.
The Expander Bus is triplicated, point-topoint architecture. Each channel of the Expander Bus comprises separate command and response media.Voting is provided at the Expander Bus Interface to ensure that cable faults are tolerated, and the remainder of the Expander Processor operates in a fully triplicated mode, even in case of cable faults occurring.
Where systems may be required to start up with Modules in the secondary position as the Active Module, for example, primary Module is not installed when application is started, the secondary Module’s position should be declared in the Module definition of the System Configuration Manager.
|
