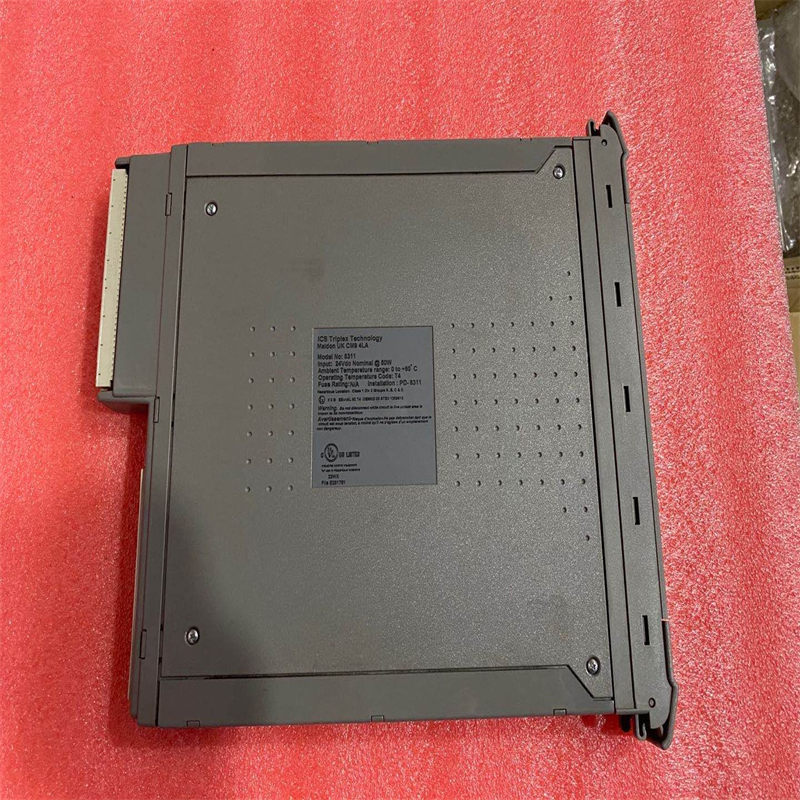

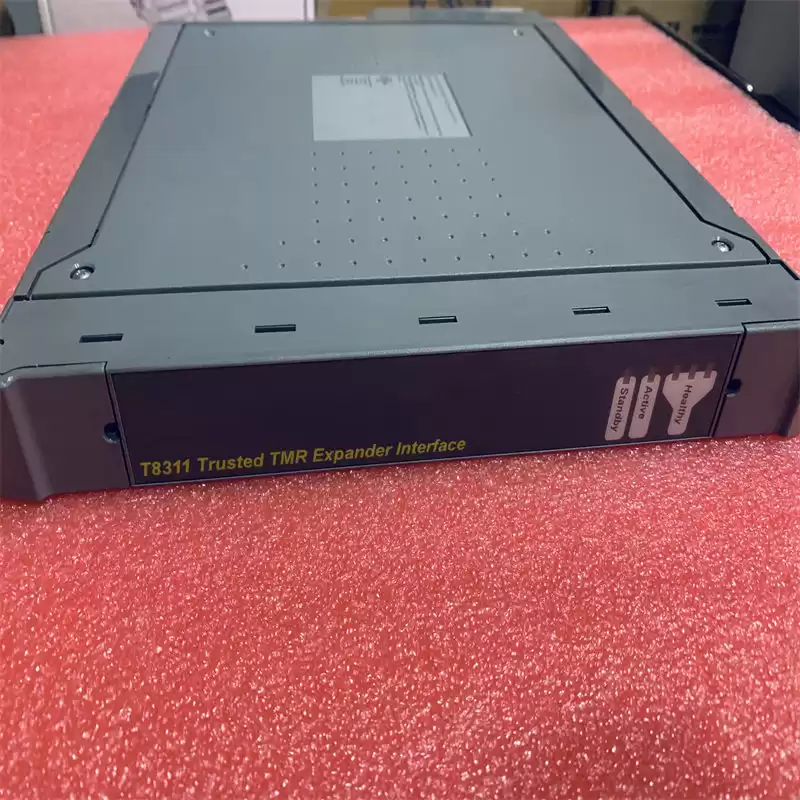

The ICS Triplex T8311 Trusted TMR Expander Interface is a specific module designed to expand the capabilities and functionality of the Trusted TMR (Triple Modular Redundant) system. It is commonly used in critical process control and safety applications where high availability and fault tolerance are crucial.
Here are some key features and details about the ICS Triplex T8311 Trusted TMR Expander Interface:
1. System Expansion: The T8311 module allows for expansion of the Trusted TMR system by providing additional input/output (I/O) capabilities. It can be connected to the main Trusted TMR controller or other expanders in the system to increase the number of I/O points or to interface with additional field devices.
2. Redundancy: The Trusted TMR system utilizes a triple modular redundant architecture, where three identical modules work in parallel to provide fault tolerance and ensure continuous operation even in the event of a failure. The T8311 expander interface module is designed to integrate seamlessly into this redundant system, contributing to its overall reliability.
3. Interface and Communication: The T8311 module interfaces with the other components of the Trusted TMR system through dedicated communication links and protocols. It communicates with the main controller and other modules to exchange data, synchronize operations, and maintain system integrity.
4. I/O Capabilities: The T8311 expander interface provides additional digital and analog I/O points, allowing for connection to a wide range of field devices. It may offer various types of inputs, such as discrete (on/off) inputs or analog inputs, and outputs for controlling actuators, signals, or relays.
5. Configuration and Programming: The T8311 module can be configured and programmed using the ICS Triplex software tools and programming environments provided for the Trusted TMR system. It allows for customization of the module's behavior, such as assigning I/O points, configuring signal processing, and managing the redundancy settings.
