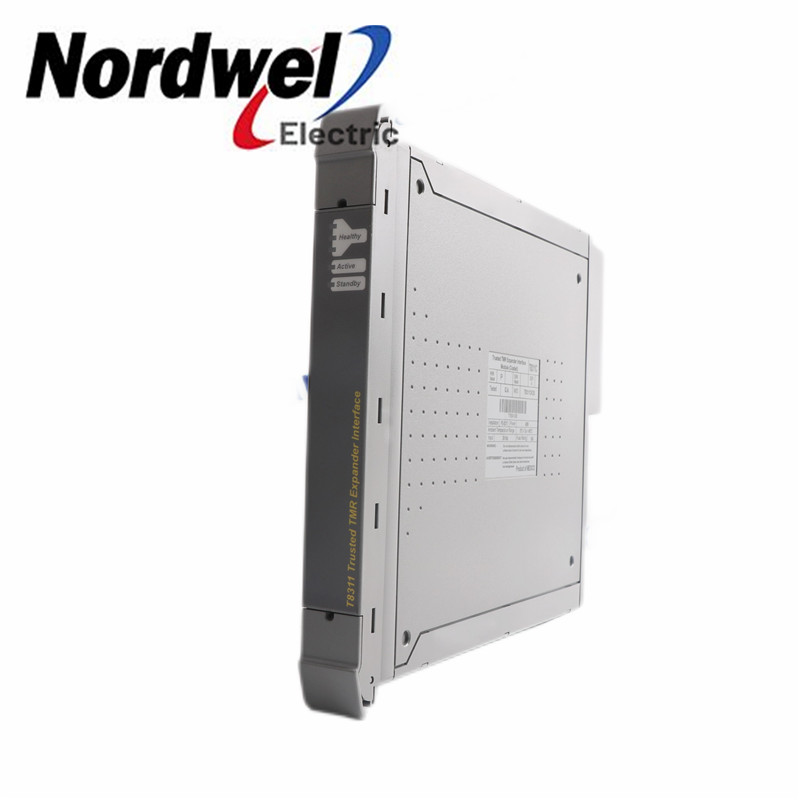

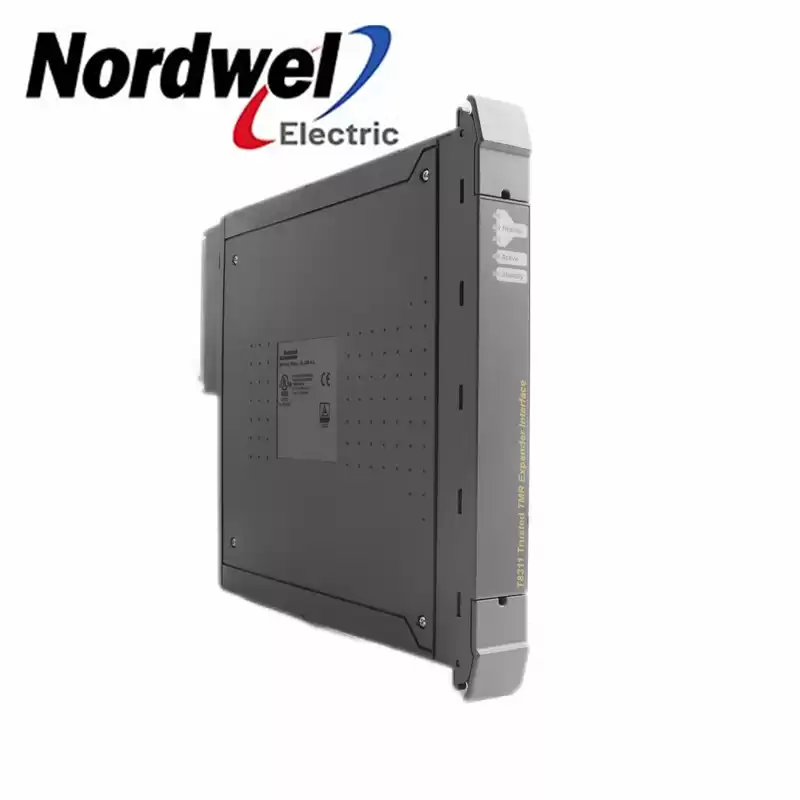

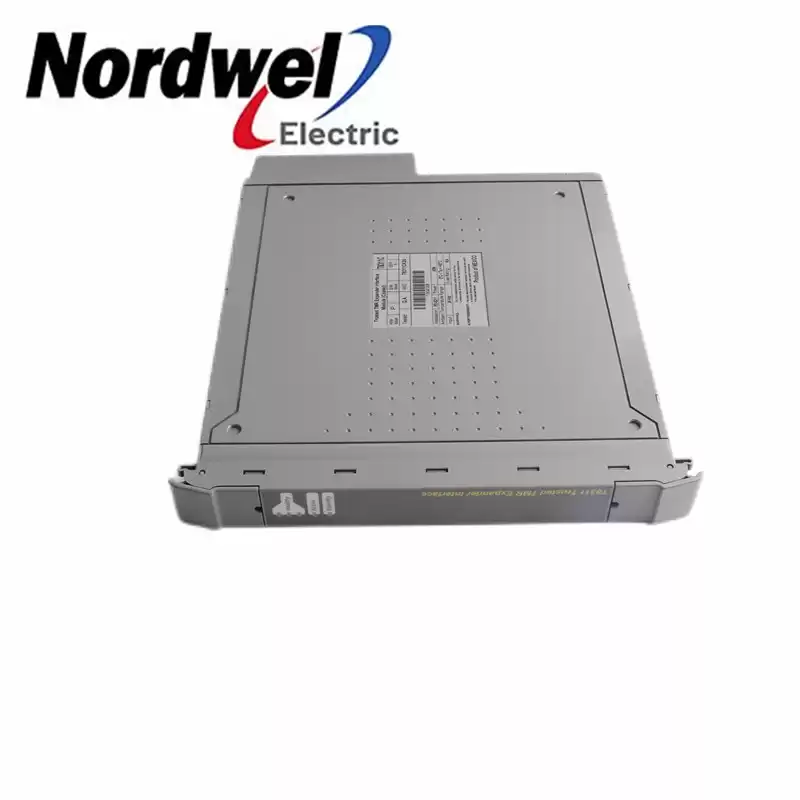

T8311C
DISCONTINUED BY MANUFACTURER
EXPANDER INTERFACE
TMR
The TrustedTM TMR Expander Interface module resides in the TrustedTM Controller Chassis and
provides the ‘master’ interface between the Inter-Module Bus (IMB) in the Controller Chassis and the
Expander Bus. The Expander Bus allows multiple chassis systems to be implemented using UTP
cable connections whilst maintaining the fault tolerant, high bandwidth IMB capabilities.
The module provides fault containment for the Expander Bus, the module itself and the IMB in the
Controller Chassis, ensuring that the effects of these potential faults are localised and system
availability maximised. The module is fault tolerant with HIFT TMR architecture. Comprehensive
diagnostics, monitoring and testing provide rapid fault identification. Hot standby and module spare
slot configurations are supported, allowing automatic and manual repair strategies.
