Decription:

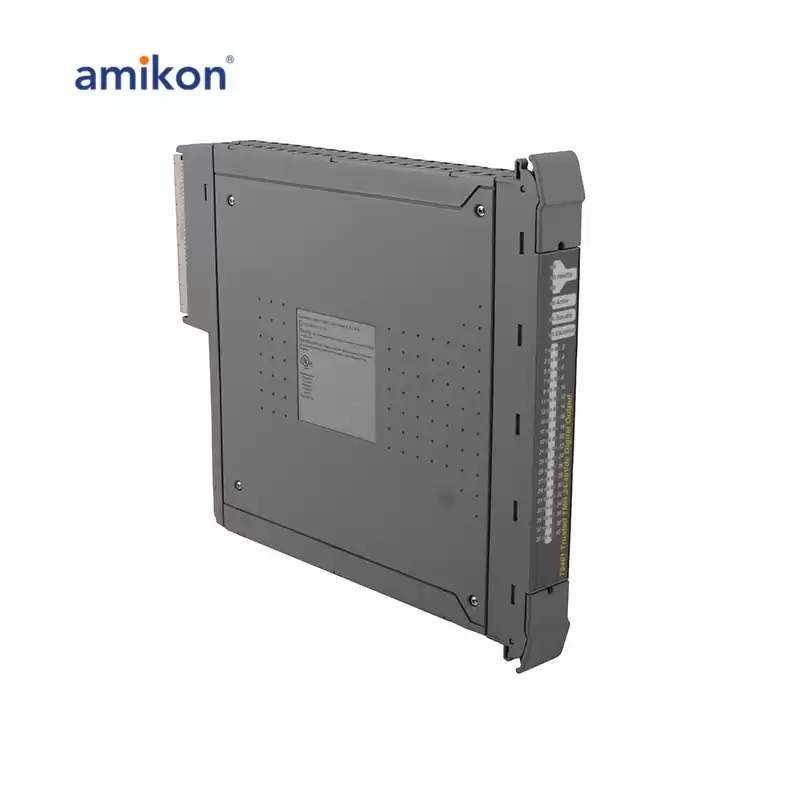

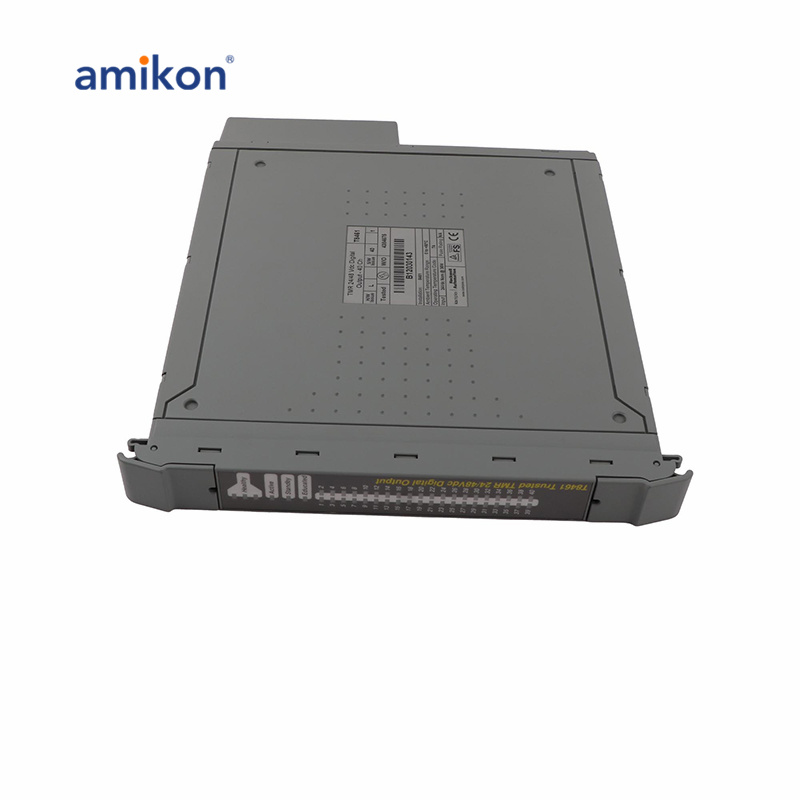

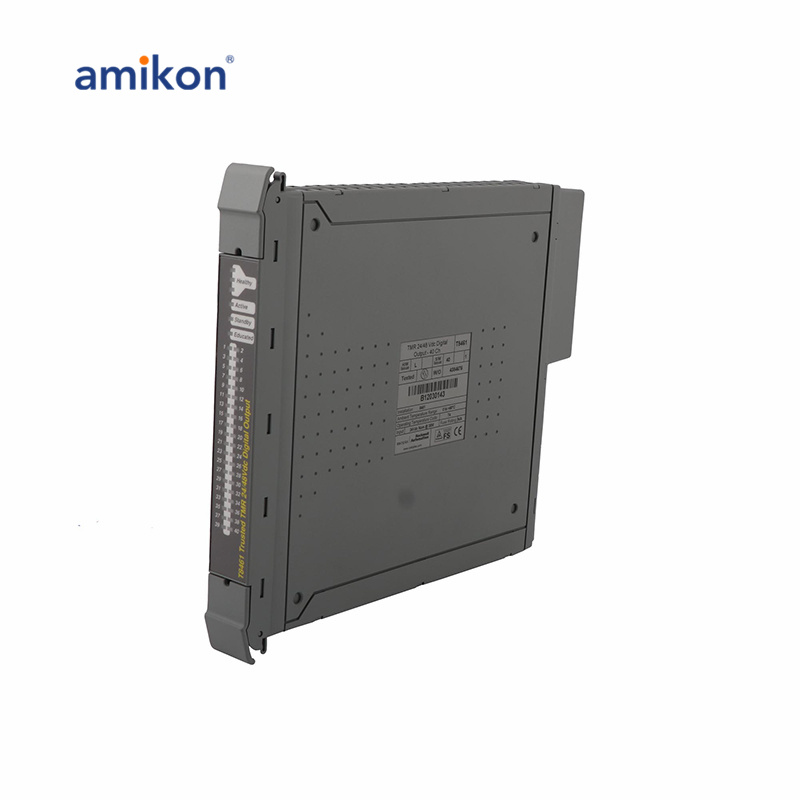

The ICS Triplex T8461 TrustedTM TMR 24/48V dc Digital Output module features a fault-tolerant, fully triplicated circuit with optional line monitoring. It provides 40 output channels, with 5 independent power groups, each containing 8 outputs. The operational output/field voltage range is 18 to 60V dc. The module has a measurement range of 0 to 60V dc and can withstand a voltage range of -1 to 60V dc. The continuous output current rating is 0.75A per channel, with a total of 6A per power group.
|
Attribute
|
Specification
|
|
Manufacturer
|
ICS Triplex
|
|
Model
|
T8461
|
|
System Supply Voltage Range
|
20 to 32 Vdc
|
|
Circuit Type
|
Fault tolerant, fully triplicated with optional line monitoring
|
|
Number of Outputs
|
40 Channels
|
|
Independent Power Groups
|
5 groups, each with 8 outputs
|
|
Operational Output/Field Voltage Range
|
18 to 60 Vdc
|
|
Output Off State Resistance (effective leakage)
|
33 kΩ
|
|
Maximum Capacitance
|
Pre-release 3.5: 30-55 μF
Release 3.5: at least 3500 μF at 0.75A
|
|
Flashing/Pulsing Current Loads
|
Release 3.5 is recommended
|
|
Output On State Resistance
|
0.6 Ω
|
