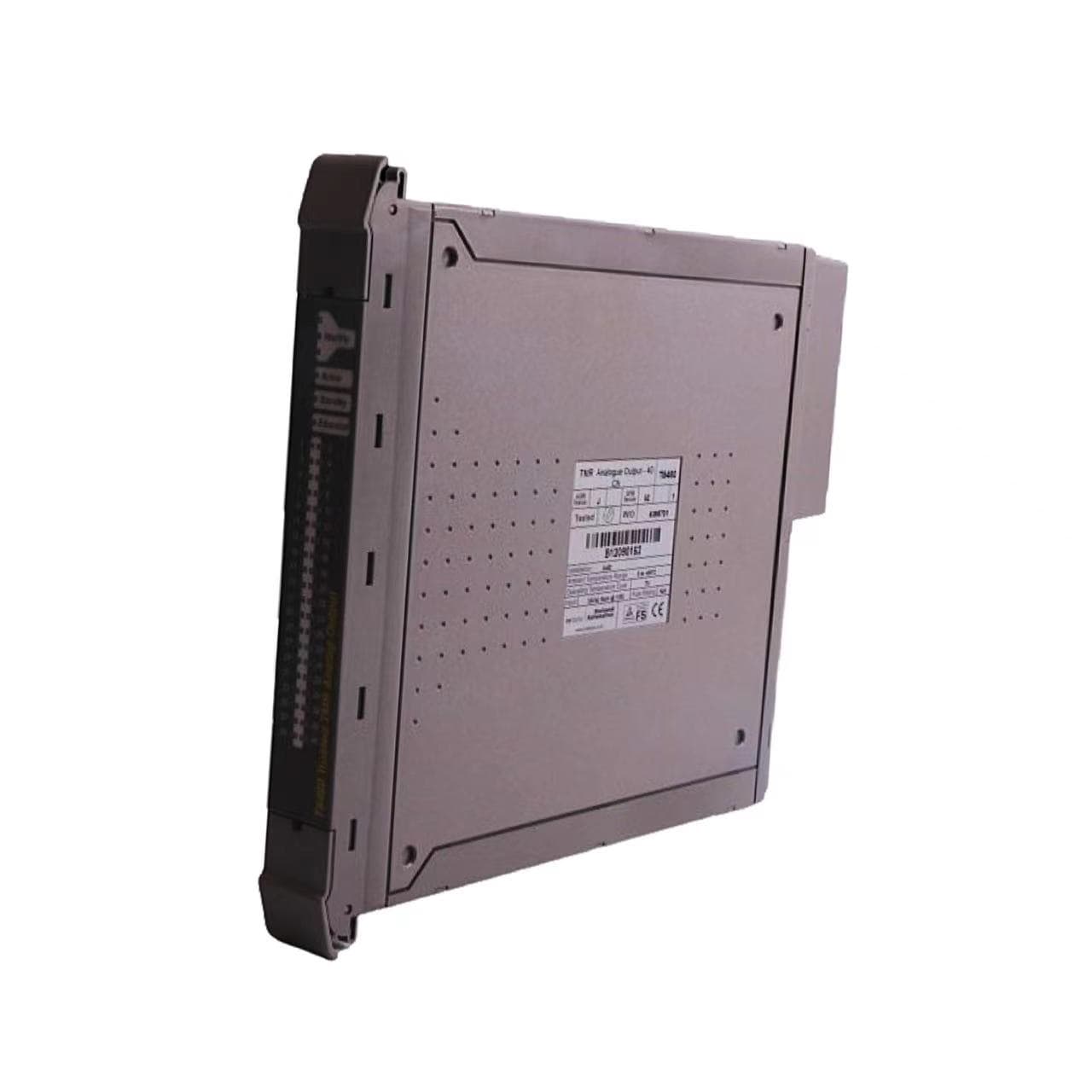

ICS Triplex T8480 Trusted TMR Analog Output Module 40 Channel
The Trusted® TMR Analog Output Module interfaces to 40 field devices. Triplicated diagnostic tests are performed throughout the Module including measurements for current, and voltage on each portion of the voted output channel.
Tests are also performed for stuck on and stuck off failures. Fault tolerance is achieved through a Triple Modular Redundant (TMR) architecture within the Module for each of the 40 output channels.
Automatic line-monitoring of the field device is provided. This feature enables the Module to detect both open and short circuit failures in field wiring and load devices.
The Module provides onboard Sequence of Events (SOE) reporting with a resolution of 1 ms. An output change of state triggers an SOE entry. Voltage and current measurements onboard the Module automatically determine the output states.
This Module is not approved for direct connection to hazardous areas and should be used in conjunction with Intrinsic Safety Barrier devices.
Features
• 40 Triple Modular Redundant (TMR) output channels per Module.
• Comprehensive, automatic diagnostics and self-test.
• Automatic line monitoring per point to detect open circuit and short circuit field wiring and load faults.
• 2500V impulse withstand opto/galvanic isolation barrier.
• Automatic overcurrent protection (per channel), no external fuses required.
• Onboard Sequence of Events (SOE) reporting with 1 ms resolution.
• Module can be hot-replaced online using dedicated Companion (adjacent) Slot or SmartSlot (one spare slot for many Modules) configurations.
• Front Panel output status light-emitting diodes (LEDs) for each point indicate output status and field wiring faults.
• Front Panel Module status LEDs indicate Module health and operational mode (Active, Standby, Educated).
• TϋV Certified for non-interfering applications, refer to the safety manual T8094.
• Outputs are powered in isolated groups of eight. Each such group is a Power Group (PG).
Technical Specifications
| Part Number |
T8480 |
| Ordering Information |
T8480 |
| Product Catalog |
Trusted TMR System |
| Description |
Trusted TMR Analog Output Module |
| Voltage |
20V DC to 32V DC |
| Power |
22 W |
| Dimension |
266 mm x 31 mm x 303 mm |
| Weight |
1.3 kg |
