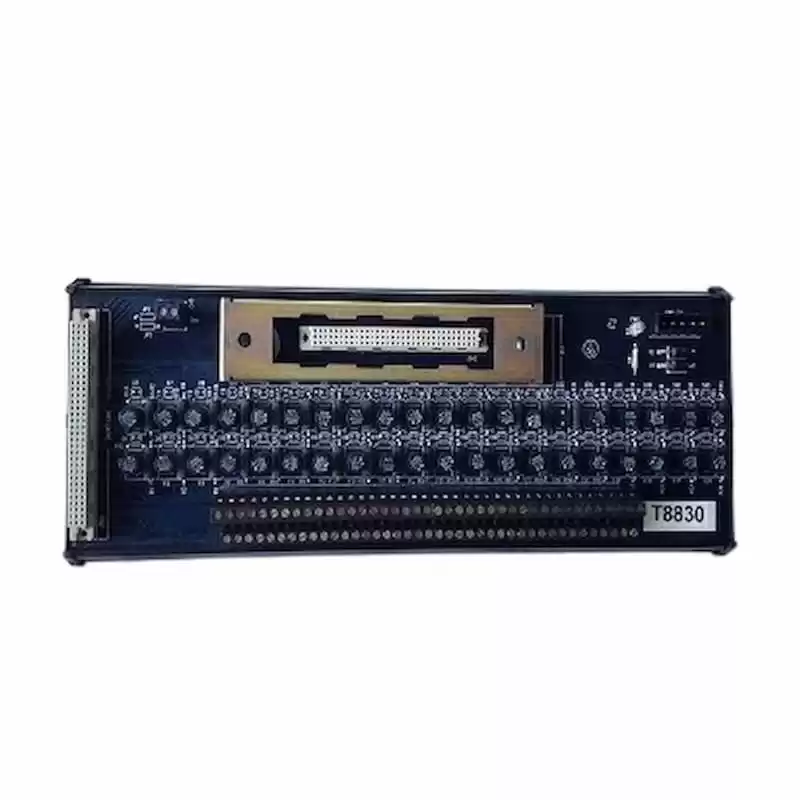

ICS Triplex T8830 Trusted 40 Channel Analogue Input FTA
The Trusted® 40 Channel Analogue Input Field Termination Assembly (FTA) T8830 is designed to act as the main interface between a field device generating an analogue signal and the Trusted TMR Analogue Input Module T8431.
Features:
• 40 input channels per FTA.
• Industry standard field device connections (2-wire).
• Standard DIN rail compatibility.
• Simple installation and connection.
• 24 Vdc operation.
• SmartSlot connection for ‘one to many’ hot replacement of input modules.
• Fused field power supply per channel.
• On-board Light Emitting Diode (LED) indication of field power supply integrity.
Technical Specifications
| Part Number |
T8830 |
| Ordering Information |
T8830 |
| Product Catalog |
Trusted TMR System |
| Description |
Analogue Input FTA |
| Voltage |
18 Vdc to 32 Vdc |
| Power |
0.25 W |
| Dimension |
111 mm x 335 mm x 51 mm |
| Weight |
900 g |
