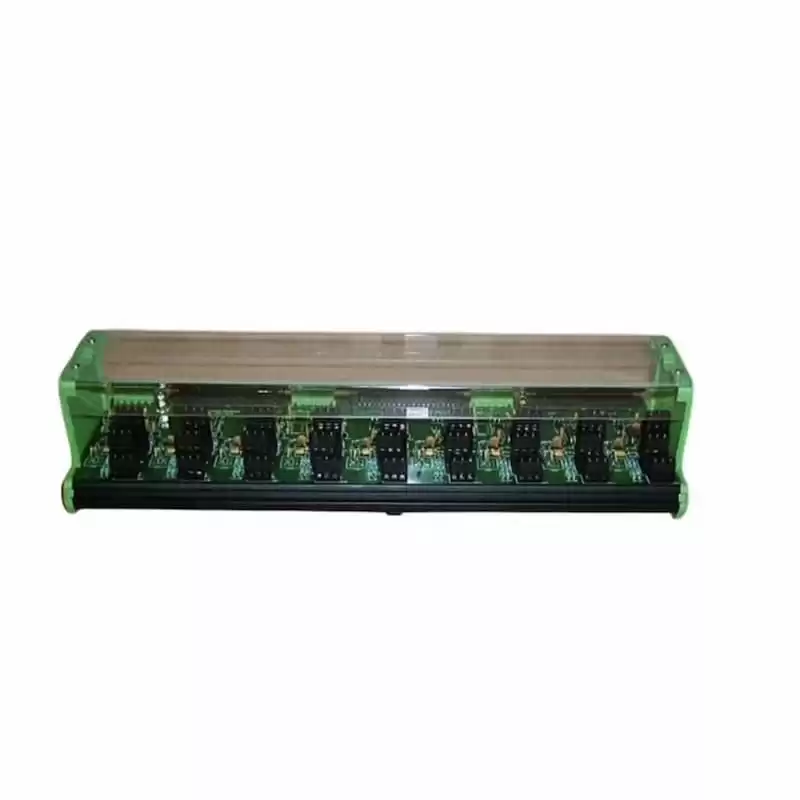

ICS Triplex T8846 Speed Input Field Terminal Assy (SIFTA)
The Trusted® Speed Monitor Input Field Termination Assembly (SIFTA) is a DIN rail assembly. It provides the input field interface for three rotating machine groups when used as part of a Trusted T8442 Triple Modular Redundant (TMR) Speed Monitor system.
Features:
• Provides all necessary input interfaces for a Trusted T8442 TMR Speed Monitor.
• Nine speed input channels arranged as three groups of three inputs.
• Separate field power inputs for each of the three speed input groups.
• Field power and signal isolation between input groups.
• Versatile input connectivity allows interfacing with:
o Active speed sensors with totem-pole outputs.
o Active speed sensors with open-collector outputs.
o Passive magnetic, inductive speed sensors.
• Standard DIN Rail mounting.
• All fuses can be replaced in situ.
Technical Specifications
| Part Number |
T8846 |
| Ordering Information |
T8846 |
| Product Catalog |
Trusted TMR System |
| Description |
Trusted Speed Monitor Input FTA |
| Voltage |
18 Vdc to 32 Vdc |
| Power |
62.5 mA |
| Dimension |
102 mm x 391 mm x 127 mm |
| Weight |
0.75 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
