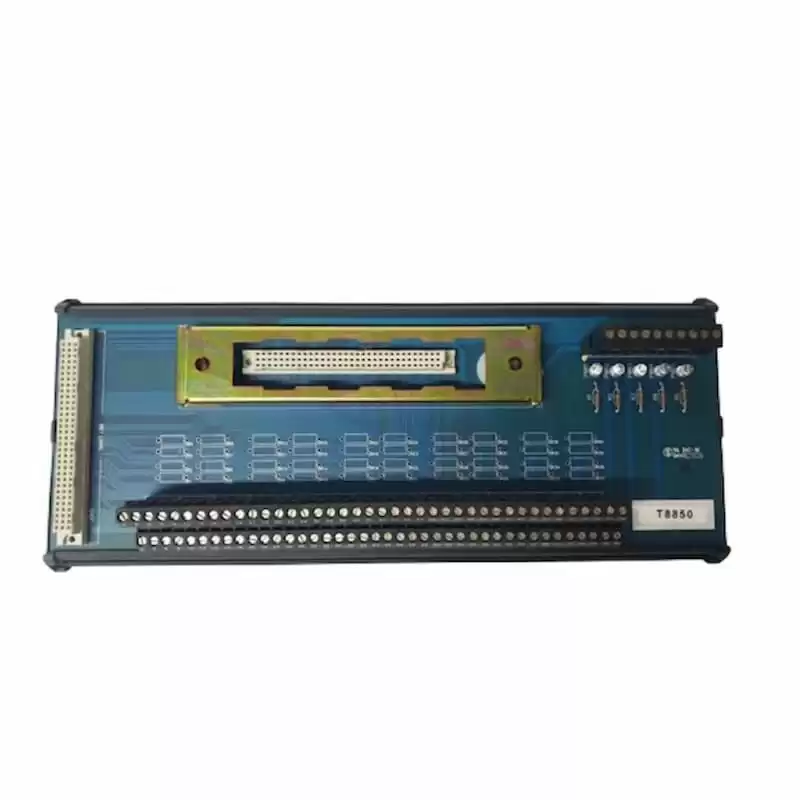

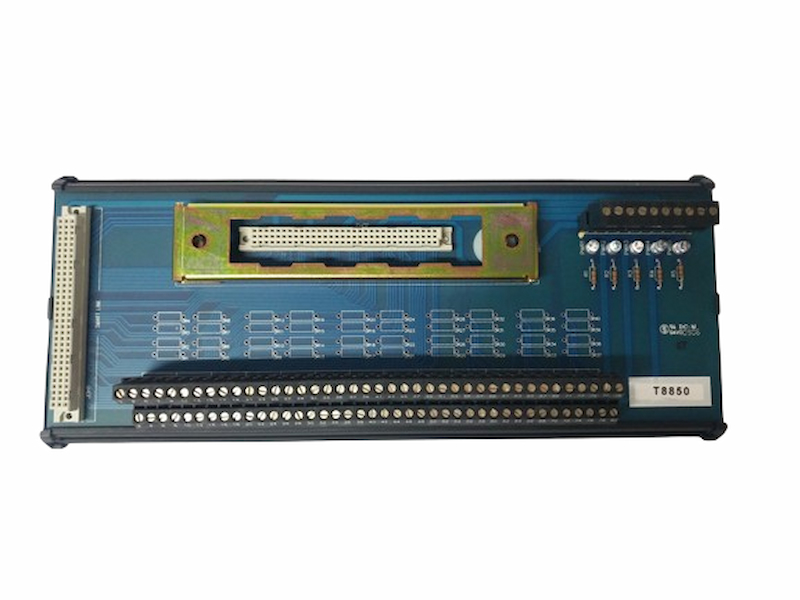

ICS Triplex T8850 Trusted 40 Channel Analogue or Digital Output FTA

 ICS Triplex T8850 Trusted 40 channel Analogue or Digital Output FTA. ICS Triplex T8855 Trusted 60 Channel Analogue Input FTA. $1,200.00







The Trusted® 40 Channel Analogue Output or Digital Output Field Termination Assembly (FTA) is designed to act as the main interface between the Trusted Triple Modular Redundant (TMR) 24 Vdc Digital Output Module T8451, Trusted Triple Modular Redundant (TMR) 24/48 Vdc Digital Output Module T84611 or Trusted TMR Analogue Output Module T8480 and the field device.


Features:



• 40 output channels per FTA.



• Industry standard field device connections (2-wire).



• Standard DIN rail compatibility.



• Screw clamp terminals on both field and power.



• Simple installation and connection.



• 24 Vdc operation.



• SmartSlot connection for ‘one to many’ hot replacement of output modules.



• Five isolated groups of eight channels.



• On-board LED indication of field power supply.



• Field terminal wire size allowance 12 AWG to 28 AWG

ICS Triplex T8850

Technical Specifications

Part Number T8850
Ordering Information T8850
Product Catalog Trusted TMR System
Description Analogue or Digital Output FTA
Voltage  60 Vdc
Power  0.5 W
Dimension 110 mm x 360 mm x 68 mm
Weight 950 g



100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.



Questions? Call +86 18050017653  or Email sales4@nseauto.com




Product Tags ics triplex          ICS T8850          T8850 Digital Output FTA          T8850 Expander Interface Module
