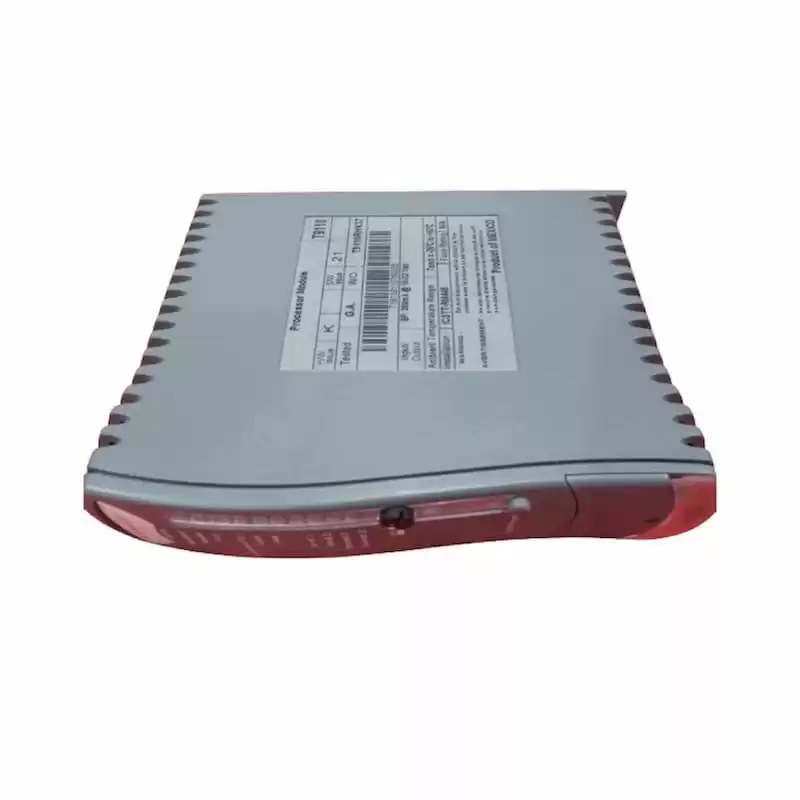

ICS Triplex T9110 Processor Module

ICS Triplex T9110 Processor Module short description: Item no: T9110 brand: ICS Triplex price:$2200 Delivery time: In Stock Payment: T/T shipping port: xiamen.Excellent quality, favorable price, welcome to inquire! $2,200.00





ICS Triplex T9110 Processor Module



The T9110 processor module is the central processing unit of an AADvance® controller. It carries out the following process and safety controller tasks:



• Execution of the AADvance Safety Kernel to solve application logic



• Interfacing with the controller I/O modules, reading and processing input data and writing output data



• Communication with other processor modules, both locally and across the control network



• Initiation of periodic diagnostics for the controller



• Communication with other systems such as HMIs



• Message encapsulation and verification for secure channel communication to other nodes



Each processor module is galvanically isolated from external power supplies and data links so that any faults developed in the field cannot cause the module to fail. The module will continue to operate if a failure occurs in one of its dual redundant 24 Vdc power supplies. The module incorporates under- and over voltage protection for its internal power supplies, which show a 'power valid' signal to the modules own diagnostics microprocessor.



The modules regularly initiates internal diagnostic tests which, together with a watchdog circuit, monitor the processor performance. If the tests find a serious fault, the processor module will shut down. A single processor system will fail-safe. If a controller uses two or three processor modules and one processor module develops a fault, you can fit a new processor module while the controller is on-line without interrupting the operation of the other processors.



The new processor module automatically carries out self-education and synchronizes with the other processors.

Fault detection and fail-over in redundant processor configurations is automatic and has no impact on controller operation.



ICS Triplex T9110

Technical Specifications

Part Number T9110
Ordering Information T9110
Product Catalog Trusted TMR System
Description Processor Module
Voltage  18 Vdc to 32 Vdc
Power  8 W
Dimension 166 mm × 42 mm × 118 mm
Weight 460 g
