ICS TRIPLEX T9300 I/O Backplane

Contact me to get the best price:

Decription:

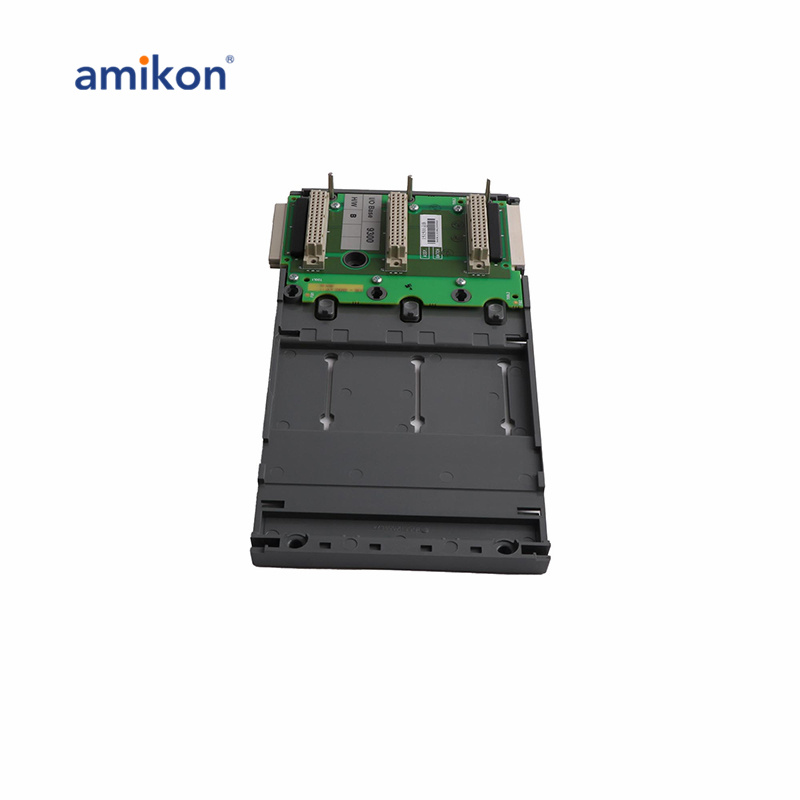

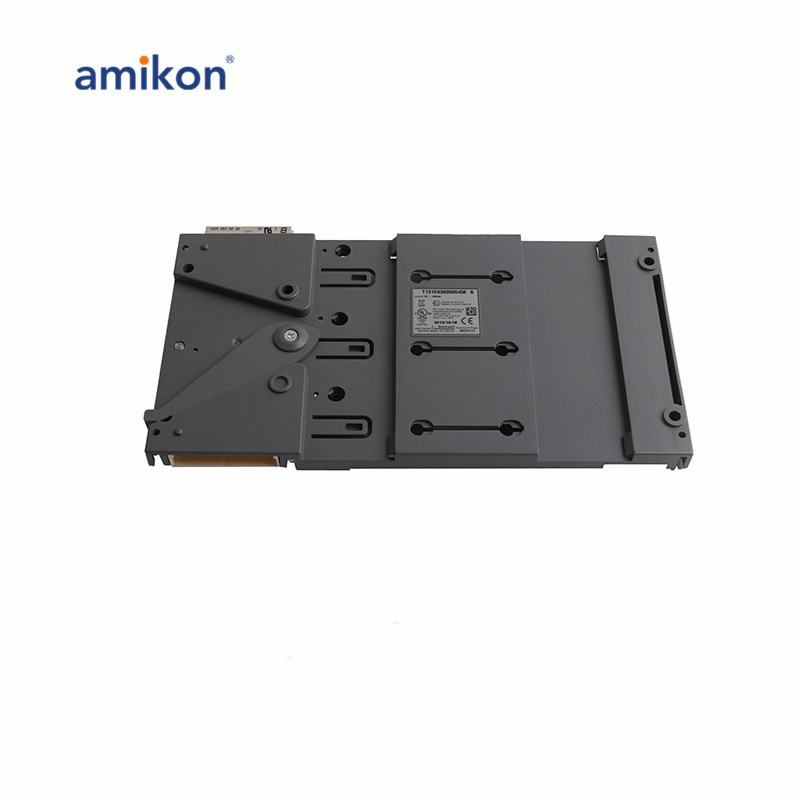

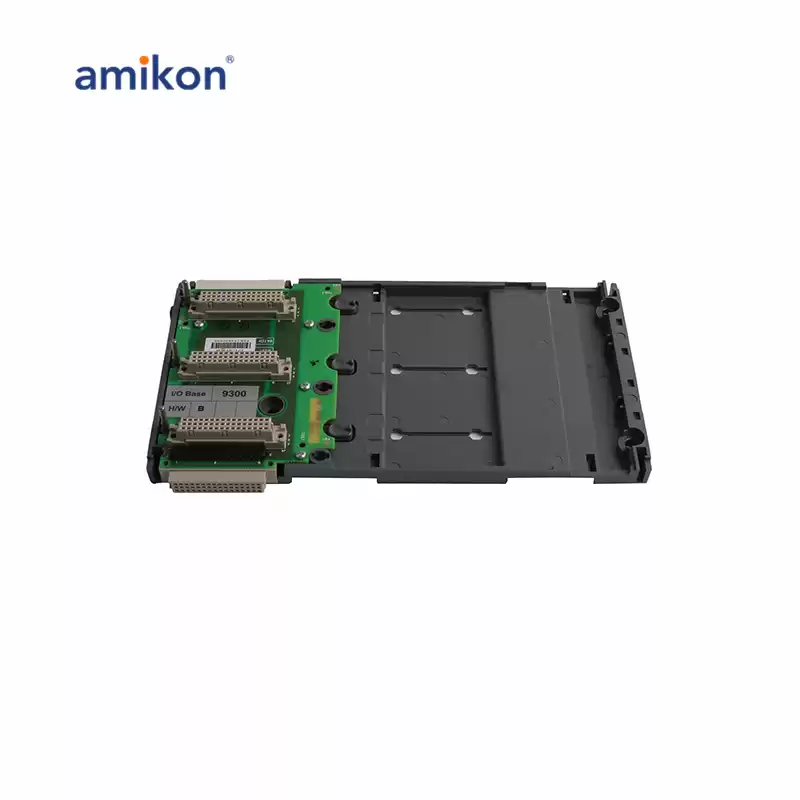

The AADvance T9300 I/O base units are designed to connect seamlessly with the T9100 processor base unit (I/O Bus 1) via a direct plug-and-socket connection. Additionally, the units can be expanded by connecting the right-hand side of one T9300 I/O base unit to the left-hand side of another, utilizing an expansion cable. This setup allows the installation of additional rows of I/O base units, providing a flexible configuration for expanding the system.

For connecting to the processor base unit, the T9300 I/O base units link to the left-hand side of the processor using the T9310 expansion cable (I/O Bus 2). The base units are securely fastened with top and bottom clips that fit into designated slots on each unit, ensuring stable and reliable installation. Finally, to complete the connection, the free end of the expansion cable is inserted into the right-hand socket of the T9300 I/O base unit.

FAQ:
1. What is the purpose of the T9300 I/O base unit? The T9300 I/O base unit is designed to connect to the T9100 processor base unit and provide an interface for various I/O modules in the AADvance control system. It facilitates communication between the processor and the connected I/O devices, allowing for system expansion and integration.

2. How do I connect multiple T9300 I/O base units? Multiple T9300 I/O base units can be connected by using an expansion cable. The right-hand side of one I/O base unit can be connected to the left-hand side of another unit, creating a chain of connected units. This allows you to add extra rows of I/O base units to the system.

3. What is the role of the T9310 expansion cable? The T9310 expansion cable is used to connect the T9300 I/O base units to the T9100 processor base unit on the left-hand side, forming I/O Bus 2. It enables communication between the processor and the I/O units.
