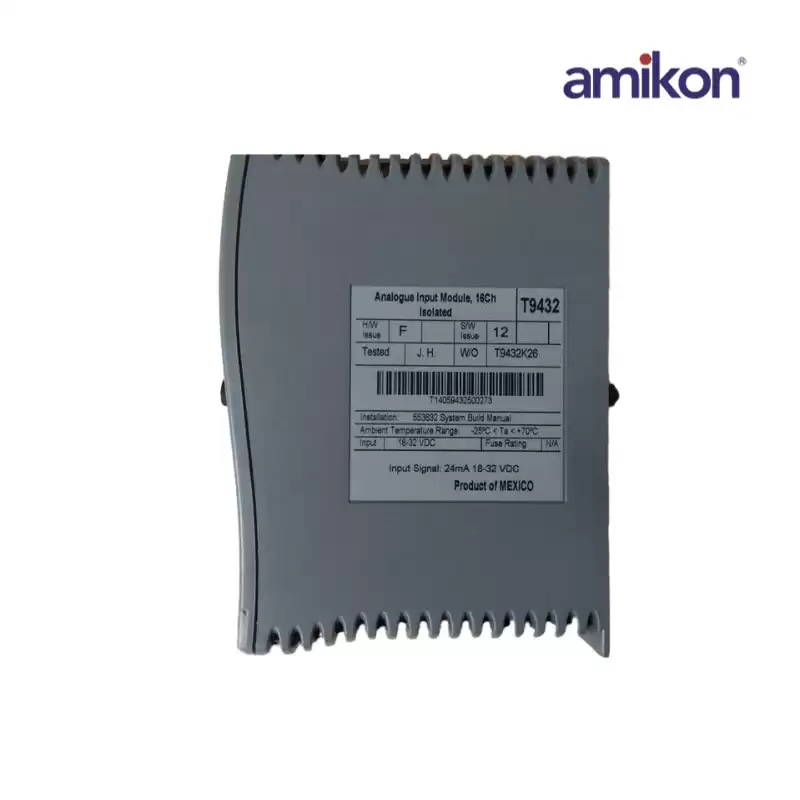

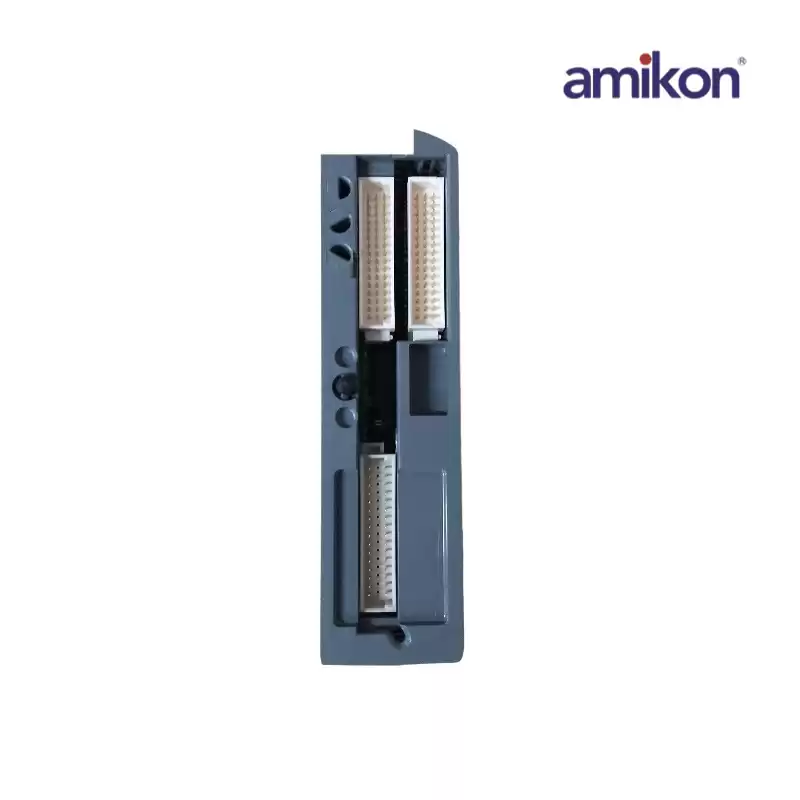

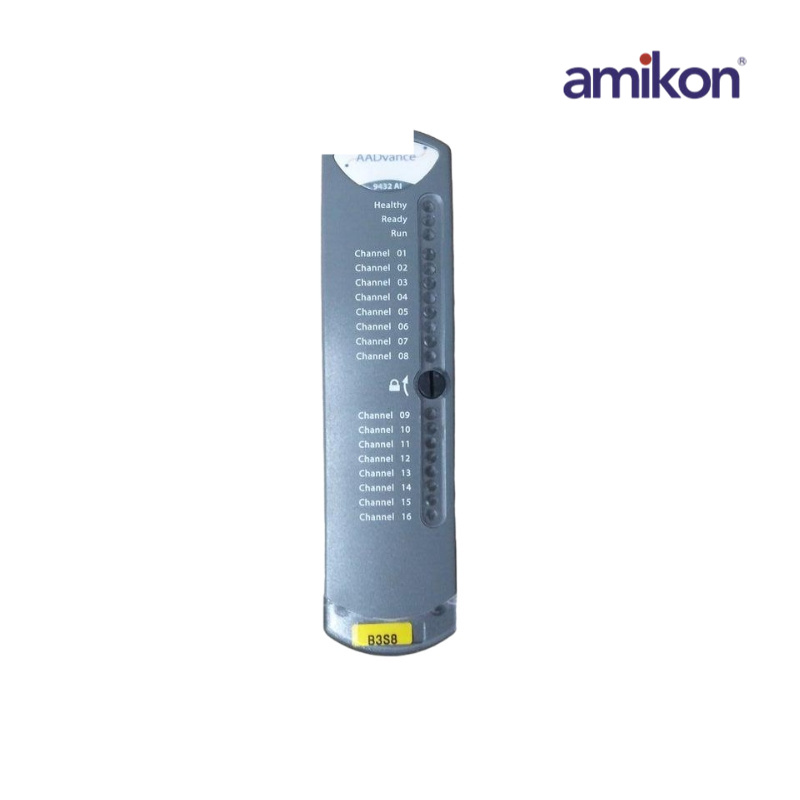

ICS Triplex T9432 Analogue Input Module, 16 Channel, Isolated

Manufacturer：

Product Package：

Part Number：

Shipping Term：

Product Description：

Dimensions:

Weight:

The T9432 is a Analog Input Module. To estimate overall controller power dissipation it is necessary to include the field power component dissipated within the controller. Refer to the table "Field Loop Power Heat Dissipation". The field power requirements should be calculated separately and is dependent on the number and type of field elements. Refer to the specifications for the Digital and Analogue output modules for details of the channel output electrical specifications.

The controller is designed to operate in its specified environment without forced air cooling. However, forced air cooling may be needed in individual circumstances when the controller shares its enclosure with other heat producing equipment and the internal temperature could exceed the recommended operating temperature range.
