IEC 60227 BVVB Flat Twin PVC Insulated Electrical Wire and Cables
PRODUCTS NAME
IEC 60227 BVVB Flat Twin PVC Insulated Electrical Wire and Cables.
PRODUCTS KEYWORDS
BVVB, VAF, VAF-G, flat twin cable, flat twin and earth cable, pvc insulated cable, electrical wire, electric cable, wire and cables.
PRODUCTS APPLICATION

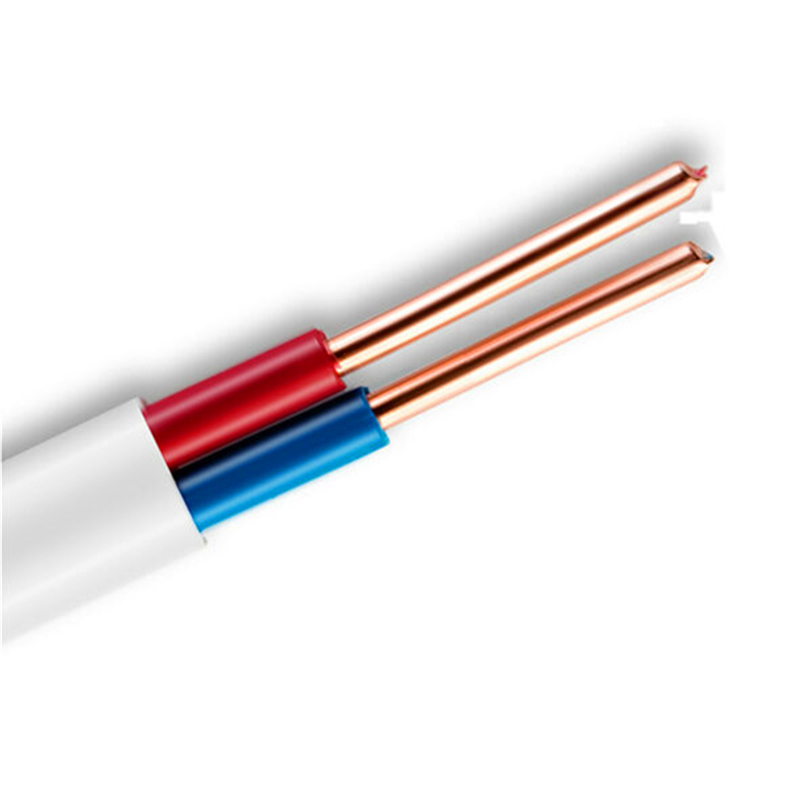

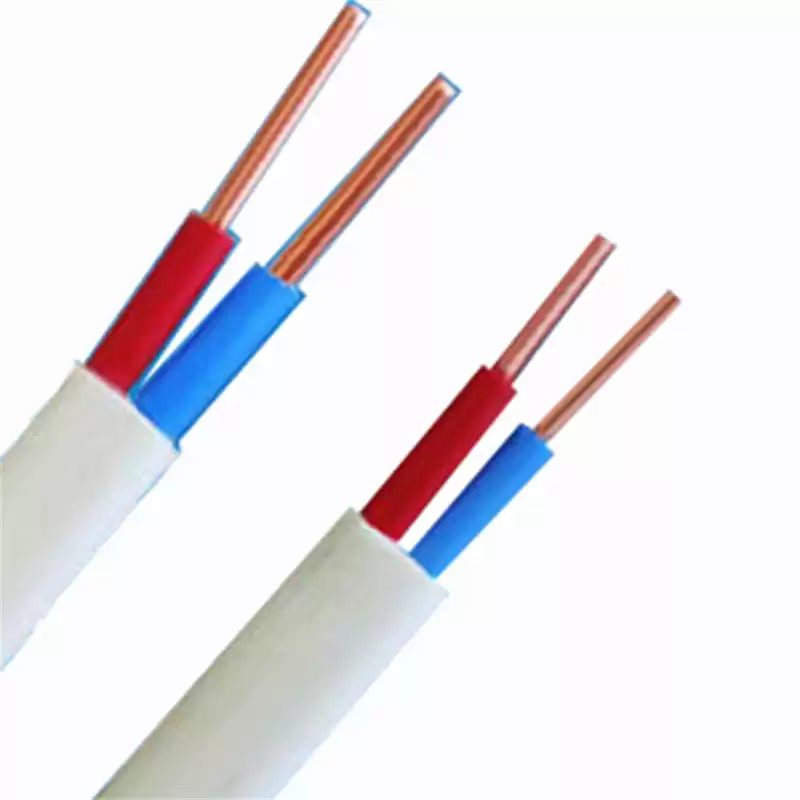

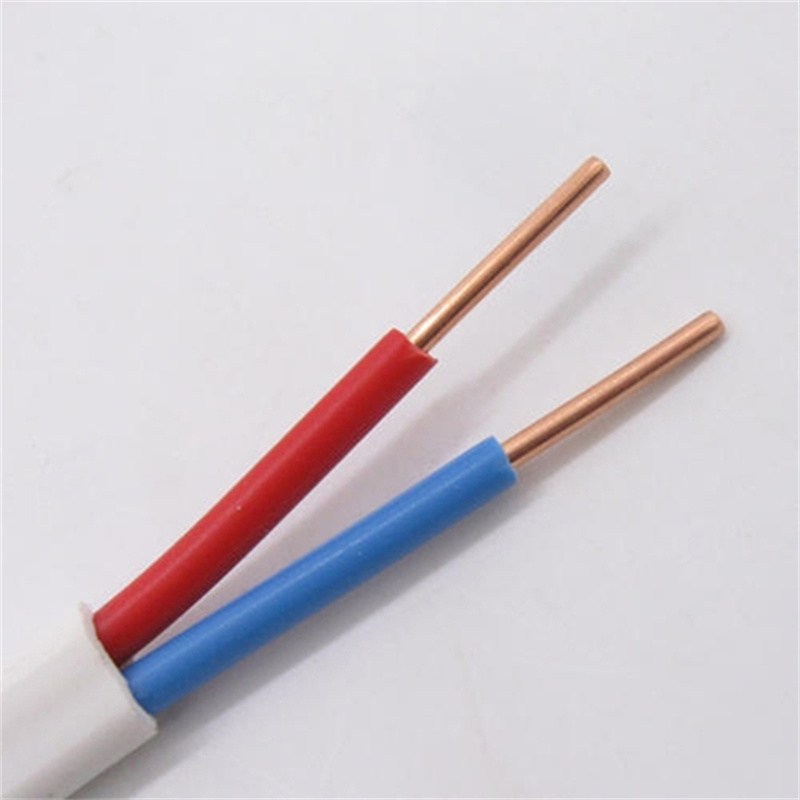

IEC 60227 BVVB Flat Twin PVC Insulated Electrical Wire and Cables, the BVVB flat twin cable is used in building wiring, installation on insulator or cable conduit, and widely used in household appliances. But cables cannot be installed in conduit or buried underground. BVVB flat twin cable, it is simply understood that 2 or 3 pieces BV cables are placed in parallel, and a layer of sheath material is added outside, the cable’s surface and appearance is flat, is not round.
PRODUCTS STRUCTURE

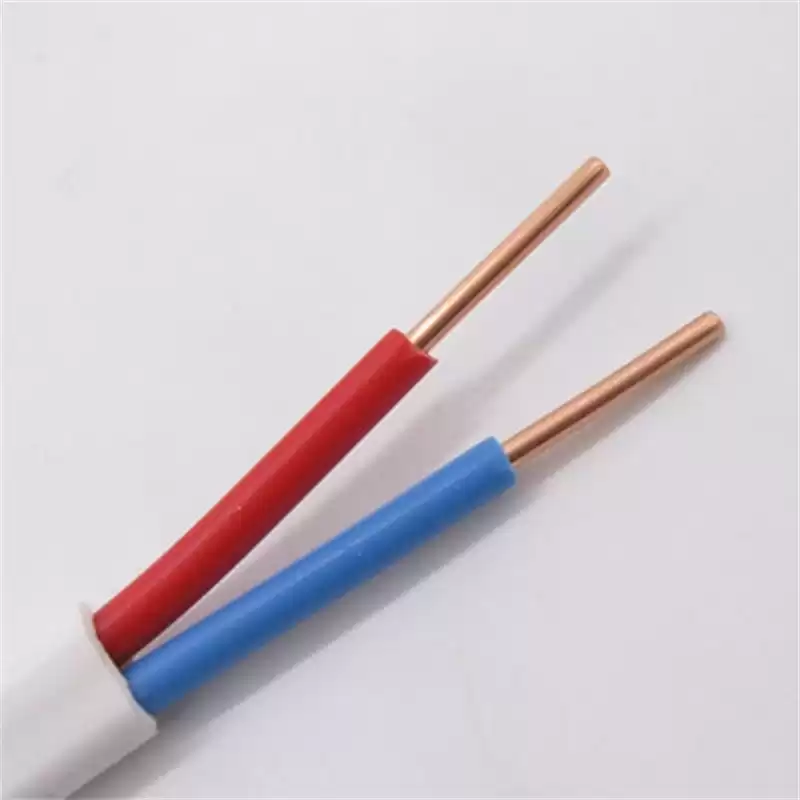

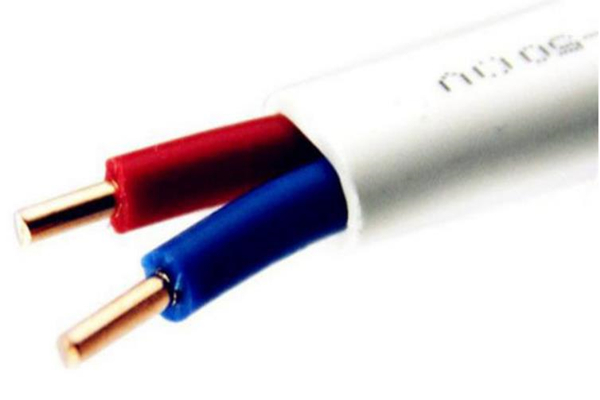

IEC 60227 BVVB Flat Twin PVC Insulated Electrical Wire and Cables, the structure as below:
---Conductor Material
Plain annealed copper wire, solid Class 1, or stranded Class 2.
---Insulation Material
PVC (polyvinyl chloride).
---Sheath Material
PVC (polyvinyl chloride).
---Core Number

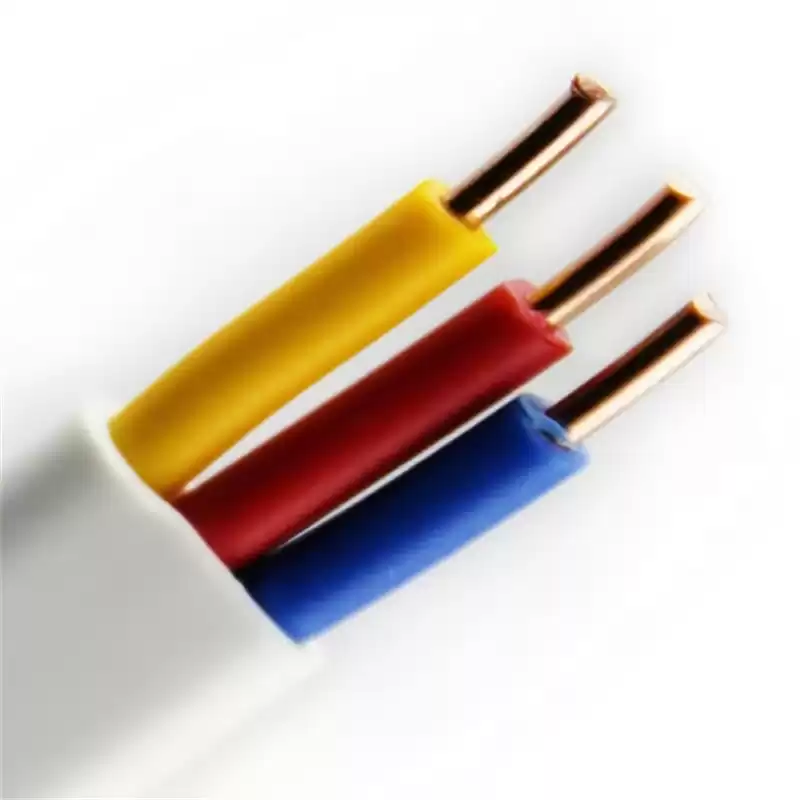

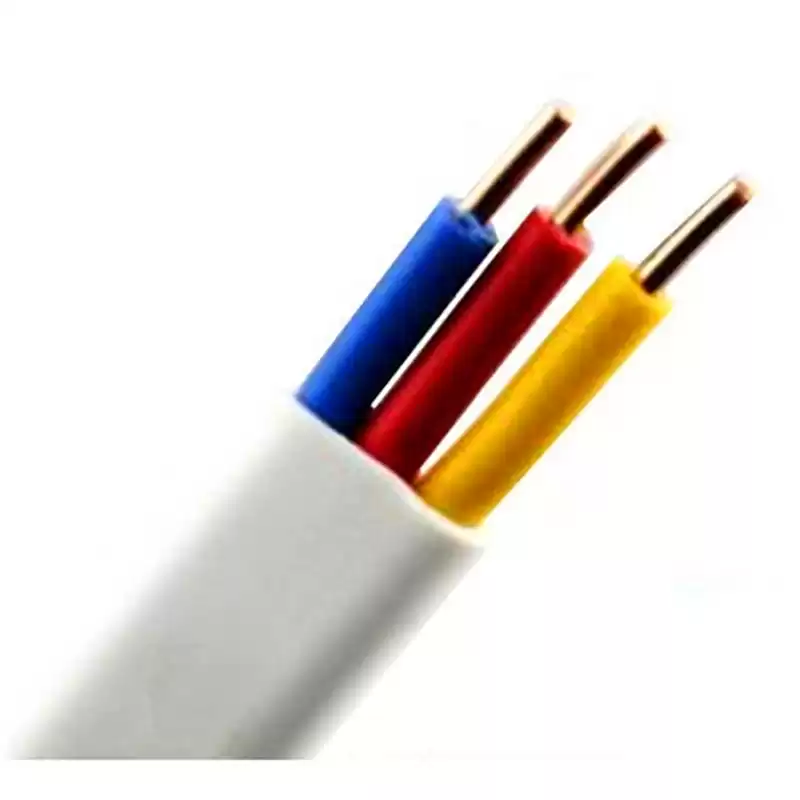

2 Cores, 3 Cores; 2C, 3C.

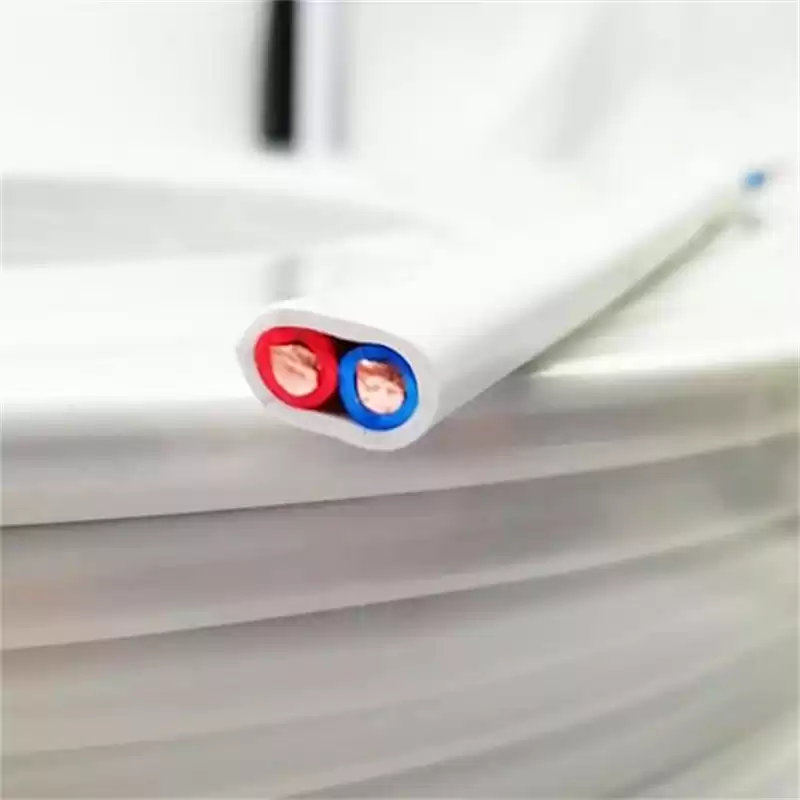

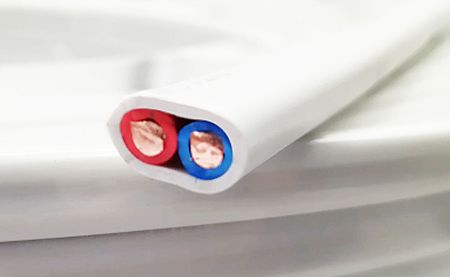

---Products Surface
Flat, it is not groud and circular.
aPRODUCTS DIMENTIONS
|
Description of Cable
|
Products Main Technical Sheet
|
|
Products Name
|
IEC 60227 BVVB Flat Twin PVC Insulated Electrical
Wire and Cables.
|
|
Conductor Material
|
Plain annealed copper wires, solid Class 1, or stranded Class 2.
|
|
Conductor Structure
|
2C x 1/1.78 mm.
|
|
Insulation Material
|
PVC (Polyvinyl Chloride).
|
|
Insulation Thickness
|
0.8 mm.
|
|
Insulation Colour
|
Brown, blue; red, blue; brown, blue, Y/G; or others.
|
|
Sheath Material
|
PVC (Polyvinyl Chloride).
|
|
Sheath Thickness
|
1.0 mm.
|
|
Sheath Colour
|
White.
|
|
Conductor Cross-section
|
2 x 2.5 mm2.
|
|
Core Number
|
2 cores, 2C.
|
|
Out Diameter
|
Max. 6.2 x 10.1 mm.
|
|
Voltage Rate
|
300/500V (U0/U).
|
|
About Net Weight
|
90 kg/km.
|
|
Production Standard
|
JB/T 8734-2016, GB/T 5023-2008, IEC 60227.
|
|

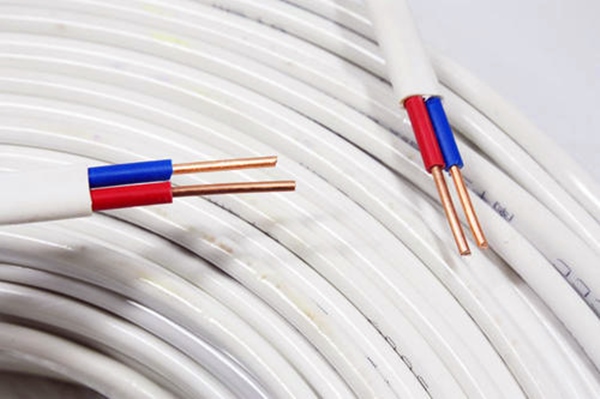

Packing Type
|
100m/roll; 100 meters per plastic reel, or according to
the customers requirements.
|
|
Max. Conductor DC
Resistance at
20℃ in Air
|
7.41 Ω/km.
|
|
Min. Insulated
Resistance at 70℃
|
0.010 MΩ.km.
|
|
Max. Ampacity
at 40 ℃ in air
|
27A.
|
