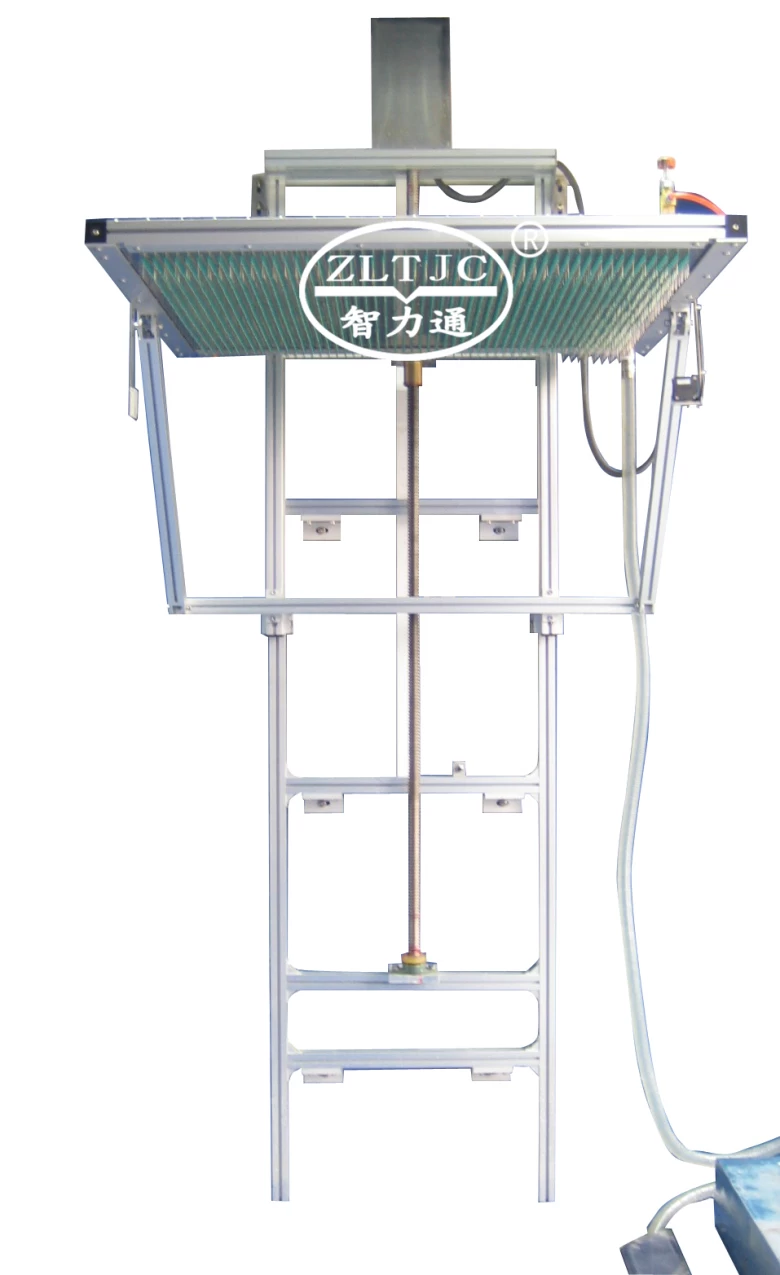

IEC 60529 Drip Box
ZLT-DB. For checking the protection against water to prove the degrees of protection with the second characteristic numerals 1 “Protection against water drops” and 2 “Protection of a specimen in a position of tilt against water drops”
According to IEC60529 Fig 3 Table 8, IEC60335-1 clause 15.1.1, IEC60947-1 Annex C.14.1, IEC60598-1 clause 9.2.3Drip Box
Product details: Model ZLT-DB
For checking the protection against water to prove the degrees of protection with the second characteristic numerals 1 “Protection against water drops” and 2 “Protection of a specimen in a position of tilt against water drops”
According to IEC60529 Fig 3 Table 8, IEC60335-1 clause 15.1.1, IEC60947-1 Annex C.14.1, IEC60598-1 clause 9.2.3Standard Outfit:
1 water tank with drip nozzle in the bottom spaced 20 mm Χ20 mm, provided with a hermetically tight cover, with overpressure/ air drain valve, with 1 aluminum support frame for suspending, precisely adjustable for leveling,
1 flow controlling valve with flow indication, with ball valve and rapid coupling to feed or to drain the water, on a separate plate for mounting on the wall,
1 set of hoses to feed and to drain the water and the overpressure, each approximately 5 m long,
1 set of pulley devices for controlling drip height from 200 mm to 2000 mm infinitely adjustable with the infrared sensors,
1 set of drip nozzles of 2651 with Φ0,4 mm, drip space 1000 mm Χ 1000 mm.
