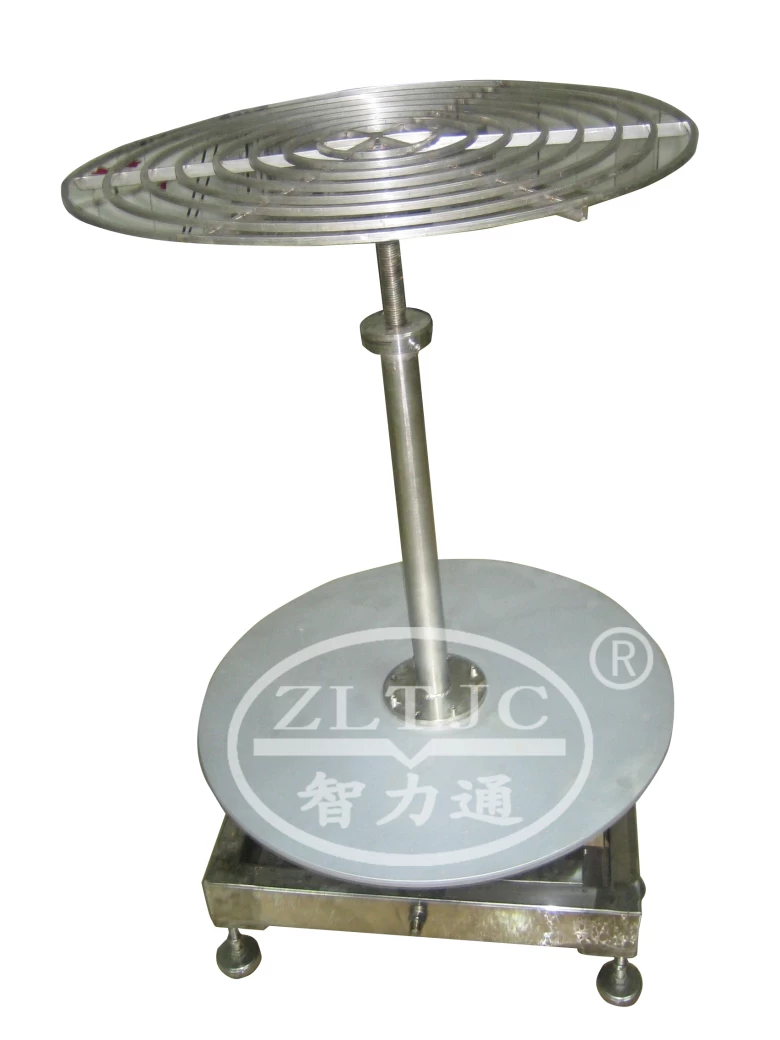

Turntable Test Device
Product details: Model ZLT-TD
To carry the specimens when determining the protection against water, according to IEC60529 figure 4, IEC 60335-1 clause 15.1.1, IEC60598 clause 9.2.4 and 9.2.5.
Standard Outfit:
1 tabletop with apron, circular, pivoted on a ball bearing turning rim, height of tabletop above floor approx.300 mm,
1 frame with AC geared motor, with additional gear reduction to 1+0,1 rpm, with 4 height adjustable caster wheels, 4 lockable，
1 tubular stand, with mounting flange,
2telescopic tubes, to clamp by tommy screws,
1 support grid, diameter 700 mm, 15°inclinable, to clamp by tommy screw,
All parts of stainless steel, screw of stainless steel, height of support grid above tabletop adjustable-unless otherwise agreed upon-from approx 600 mm to 1200 mm, carrying capacity maximally 150 kg.
