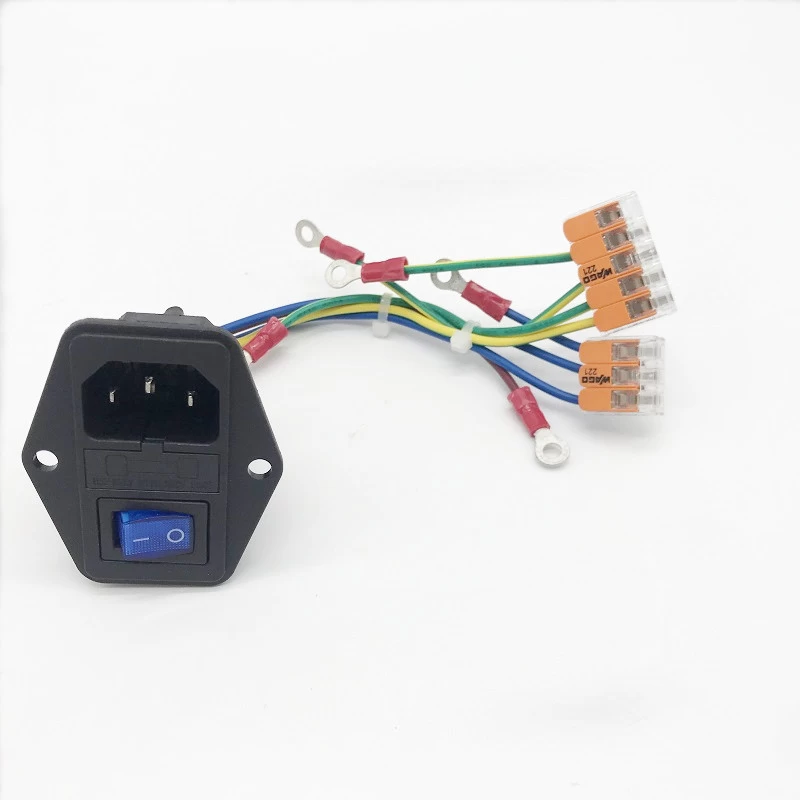

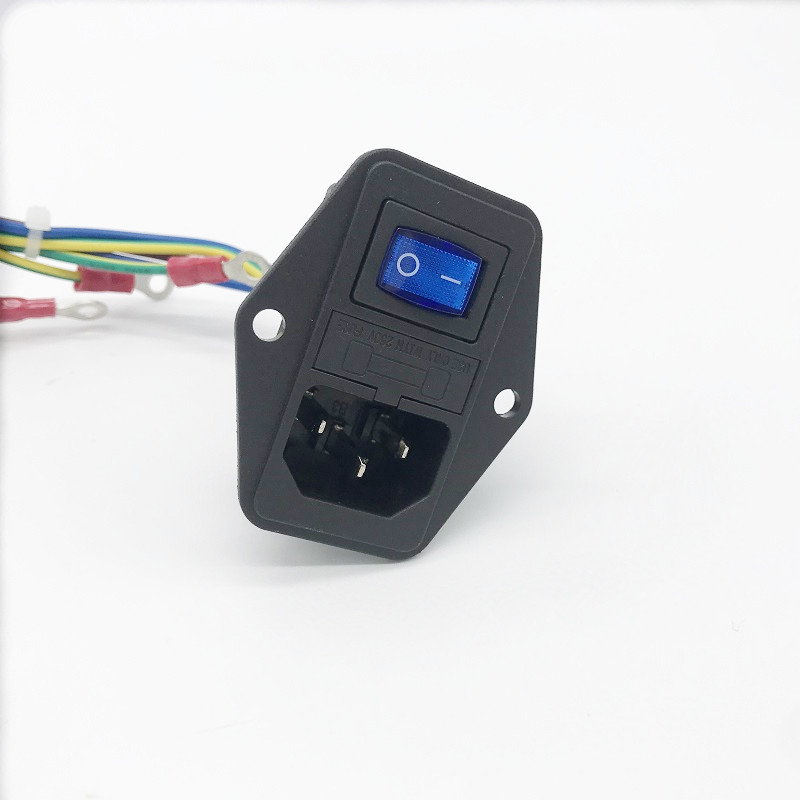

IEC Power Inlet Module 10A Fuse*2 Wire Cable With Lighted Switch

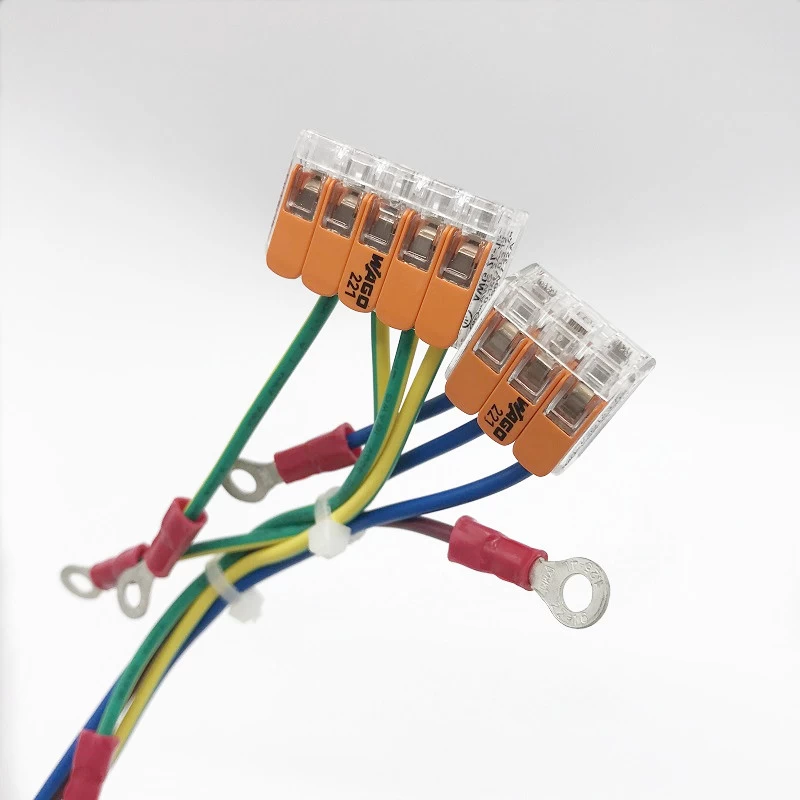

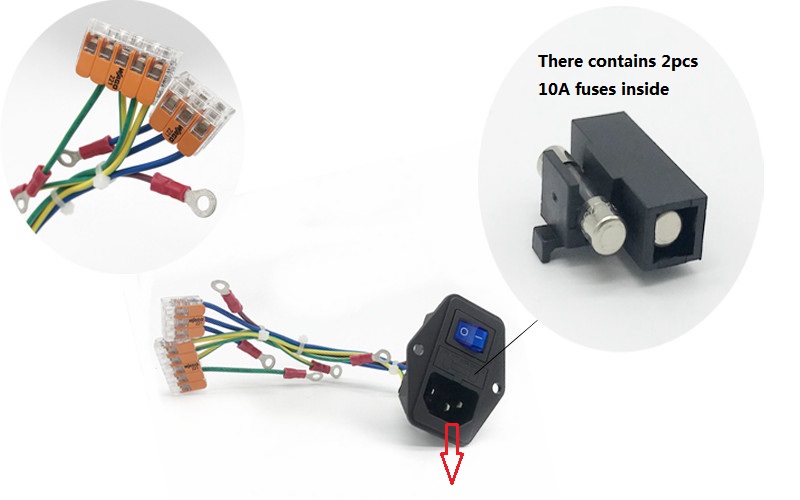

High Quality Blue Light Switch Snap-in Power Inlet, 10A, 250V/110V Fuse *2, with custom made wire harness #6 Ring Terminal and Wago 221 Connector.



DATA REFERENCE---Specification of AC Power Socket Series

Brand KEHAN  Certification  CCC/CE/TUV/RoHS
Humidity
93%+40
Temperature  -40°C~+70°C
External Material Nylon PA66 PC  Contact Material Copper
Rating Voltage
250V 10A Withstand Voltage  AC 500 V 50(Hz)/min
Insulation ≥100MΩ Contact Resistance
≤0.03Ω
Operating Force 5-40N Life Span  10000 times

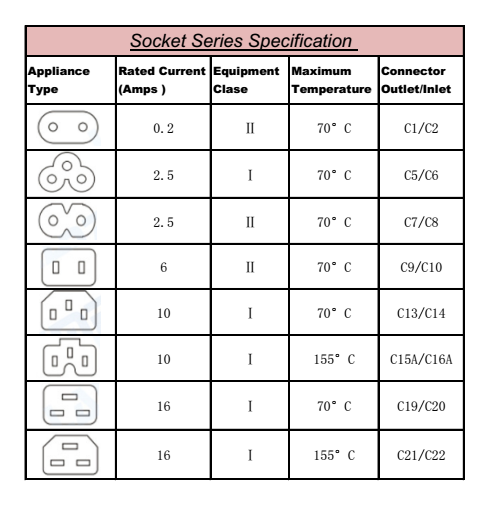

                         Power Socket Series Specification

KEHAN undertake custom manufacturing for various kind of Power Wire Harnesses with IEC Power Inlet/Outlet Modules. AC 3-IN-1 power control switch socket, widely used in industrial equipment, household appliances and other control devices. We will provide 1 to 2 fuses as you need.


Welcome to contact us for more details!


HOT SALE PRODUCTS!!!!

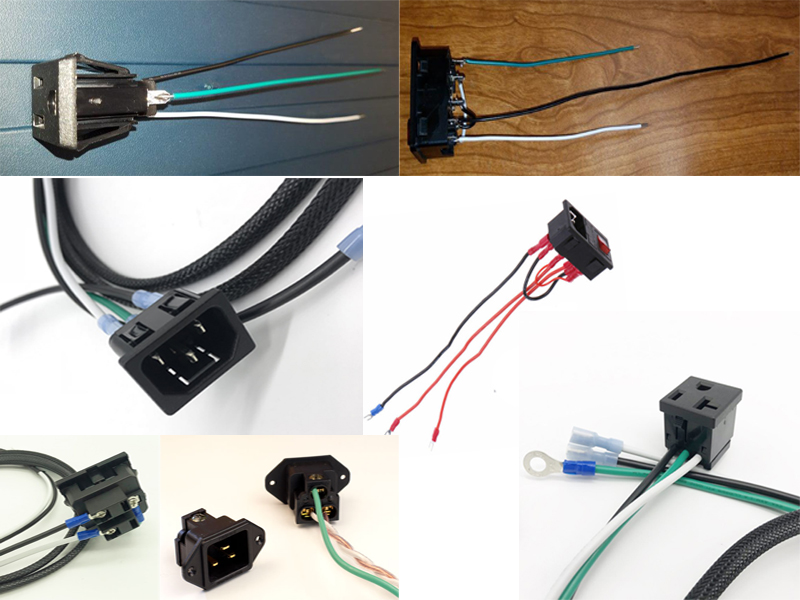

IEC Power Inlet Wire Harness


Product Tags wire cable harness          wire and cable harness          wire harness cable          custom cable harness          chassis harness wiring assembly          wire harness assembly equipment          wire harness assembly methods          wire harness assembly table          wholesale wire harness assembly
