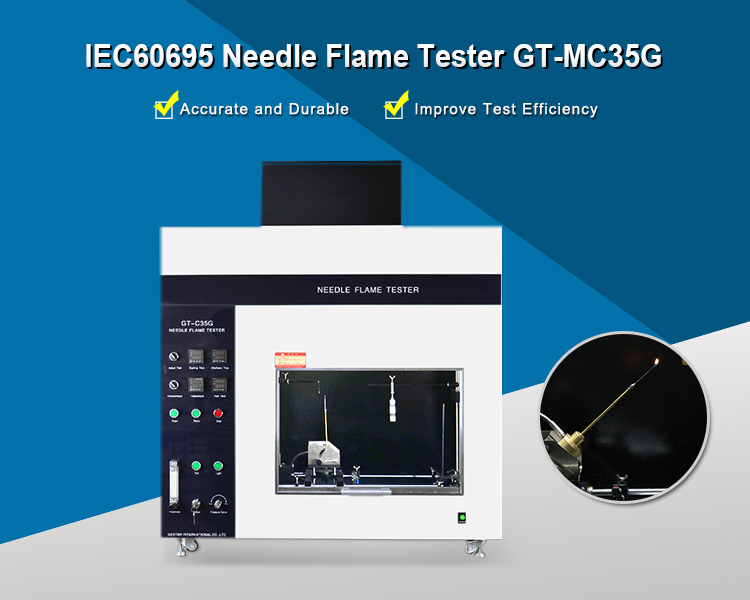

IEC60695 Needle Flame Tester Applications:
|
Needle flame tester is the latest release of the flaming test equipment, with imports of touch-screen controller and instrument.
New test circuit, stable performance, reliable, simple and easy to operate. wide range of parameter adjustment. Apply to the test standards IEC60695,GB5169, etc.
Standards:
IEC60695
GB5169
|
EC60695 Needle Flame Tester Feature
|
1. Glass windows
2. Full import control components.
3. Wireless remote control timing device.
4. LCD Display or touch-screen control system
5. Advanced temperature control ang measuremtnt system.
|
IEC60695 Needle Flame Tester Key Specifications
|
|
Model
|
GT-MC35G
|
|
After glow time
|
0-99h99m99.9s
|
|
Continue burning time
|
0-99h99m99.9s
|
|
Flam height
|
5-45mm (Can be adjustment)
|
|
Burn time
|
0-99.99s (Can be adjustment)
|
|
Temp range
|
0-1200degree (Can be adjustment)
|
|
Outside dimension
|
1120x600x1020mm (L x W x H)
|
|
After flam time resolution
|
0.1s
|
|
After glow time resolution
|
0.1s
|
|
Flam Temp. Resolution
|
1degree
|
|
Standards
|
IEC60695. GB5169
|
Applications Industry
All kinds of below materials can be tested on the Needle Flame Tester.

|
