IEVC Integrated Storage-Charging Series

The IEVC series introduces two cutting-edge solutions, IEVC-66.6/60 and IEVC-20/66.6/60, designed to integrate charging and energy storage. These devices enhance energy efficiency, optimize power distribution, and support rapid EV charging for the growing electric vehicle market. Ideal for commercial and residential applications, they also significantly reduce operational costs by enabling peak-load shifting and renewable energy integration.









  • IEVC Integrated Storage-Charging Series Features

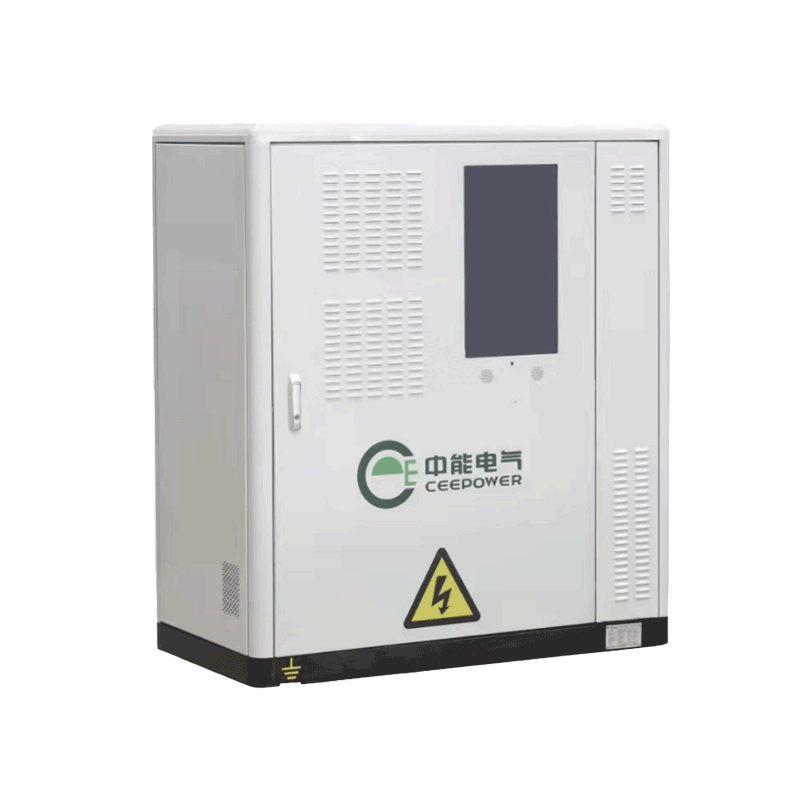

IEVC-66.6/60 Storage-Charging Integrated Station



This model utilizes high-quality LiFePO4 batteries and an integrated charging control module for efficient charging and low maintenance costs. It supports both single-phase and three-phase power, with quick-response fire suppression for safety.

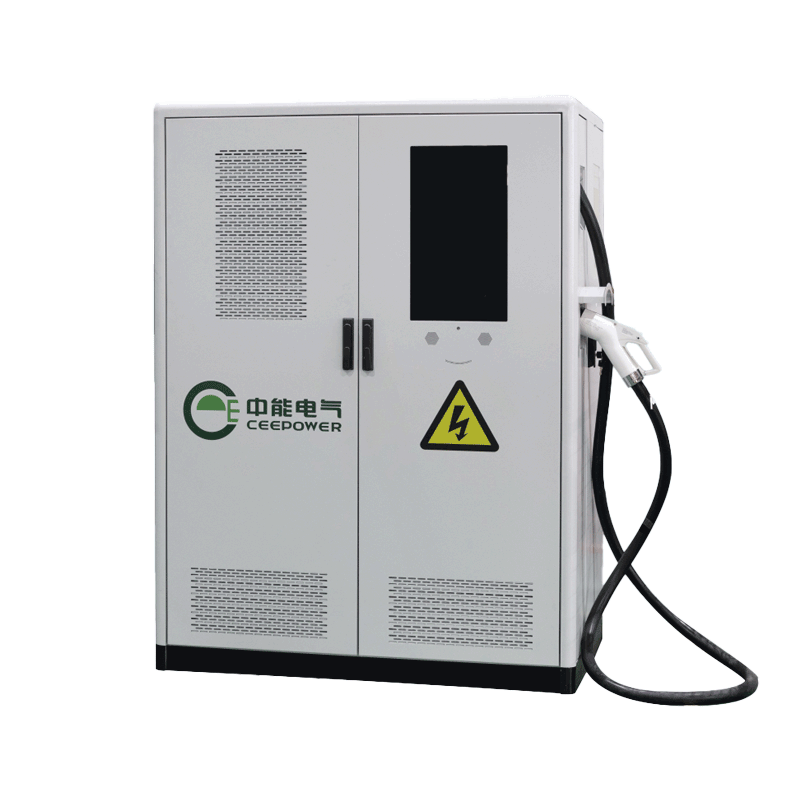

IEVC-20/66.6/60 PV Storage-Charging Integrated Station



This model integrates solar energy, charging, and storage, using LiFePO4 batteries and a dual-direction inverter for optimal energy management. It includes MPPT for optimal solar energy use and flexible power supply options.















  • IEVC Integrated Storage-Charging Series Features
  • #
    High Quality & High Safety
    LiFePO4 cells and an integrated charging control module ensure safe, efficient energy storage and smart management.
  • #
    Compact Design
    Designed easy transport and installation, optimizing space utilization while supporting both single-phase and three-phase power supply for flexible grid adaptation.
  • #
    Food Processing & Catering
    Using advanced pipe-based halon technology for enhanced safety.
  • #
    Cost-Effective Operations
    Features network deployment tailored to demand, reducing expenses, while the system also provides opportunities for additional revenue through advertising.

















  • Specifications



IEVC-66.6/60
Energy Storage System Electrode Type LFP 3.2V/100Ah
Combination Method 1P208S
Rated Voltage 665.6V
Rated Capacity 66.56kWh
Charge and Discharge Rate ≤ 1C
Charging Power Single Phase 7kW / Three Phase 20kW
Power Factor ≥ 0.99
Number of Cycles ≥ 6000 times @80%SOC
Charging System Voltage Platform 150V-750V
Rated Power 60kW
Maximum Output Current 150A
Pressure Precision ≤ ±0.5%
Steady Flow Precision ≤ ±1%
Gun Head Quantity 1
Charging Connection Mode GB/T20234.3-2015
Overall Parameters Overall Configuration Integrated
Comprehensive Efficiency ≥ 90%
Auxiliary Power Supply 12V/24V
Ingress Protection Rating IP54
Start-up Mode Card swiping, local activation
Display Screen Size 7 inches
Advertising Screen Size 27 inches
Noise Control < 75dB
Networking Mode 4G/Wi-Fi
Dimensions (W×H×D) 132*150*70cm
Safety System Anti-theft door lock, temperature/humidity monitoring, water/fog monitoring
Cooling Method Industrial air conditioning, forced air cooling
Operating Temperature -30 °C ~ 65 °C
Humidity Range 0-95%
Altitude Limit 3000M
Communication Protocol RS485/CAN/Ethernet

IEVC-20/66.6/60
Energy Storage System Electrode Type LFP 3.2V/100Ah
Combination Method 1P208S
Rated Voltage 665.6V
Rated Capacity 66.56kWh
Charge and Discharge Rate ≤ 1C
Charging Power 30kW
Power Factor ≥ 0.99
Number Of Cycles ≥ 6000 Times @80%SOC
Photovoltaic Interface Photovoltaic Voltage Range DC200V-900V (530V Above Full Power)
Photovoltaic Channel Number 1
Rated Power 20kW
Charging System Voltage Platform 150V-750V
Rated Power 60kW
Maximum Output Current 150A
Pressure Precision ≤ ±0.5%
Steady Flow Precision ≤ ±1%
Gun Head Quantity 1
Charging Connection Mode GB/T20234.3-2015
Overall Parameters Overall Configuration Integrated
Comprehensive Efficiency ≥ 90%
Auxiliary Power Supply 12V/24V
Ingress Protection Rating IP54
Start-Up Mode Card swiping, local activation
Display Screen Size 7 inches
Advertising Screen Size 27 inches
Noise Control < 75dB
Networking Mode 4G/Wi-Fi
Dimensions (W×H×D) 134*180*85CM
Safety System Anti-theft door lock, temperature/humidity monitoring, water/fog monitoring
Cooling Method Industrial Air Conditioning, Forced Air Cooling
Operating Temperature -30°C ~ 65°C
Humidity Range 0-95%
Max Altitude 3000M
Communication Protocol RS485/CAN/Ethernet
