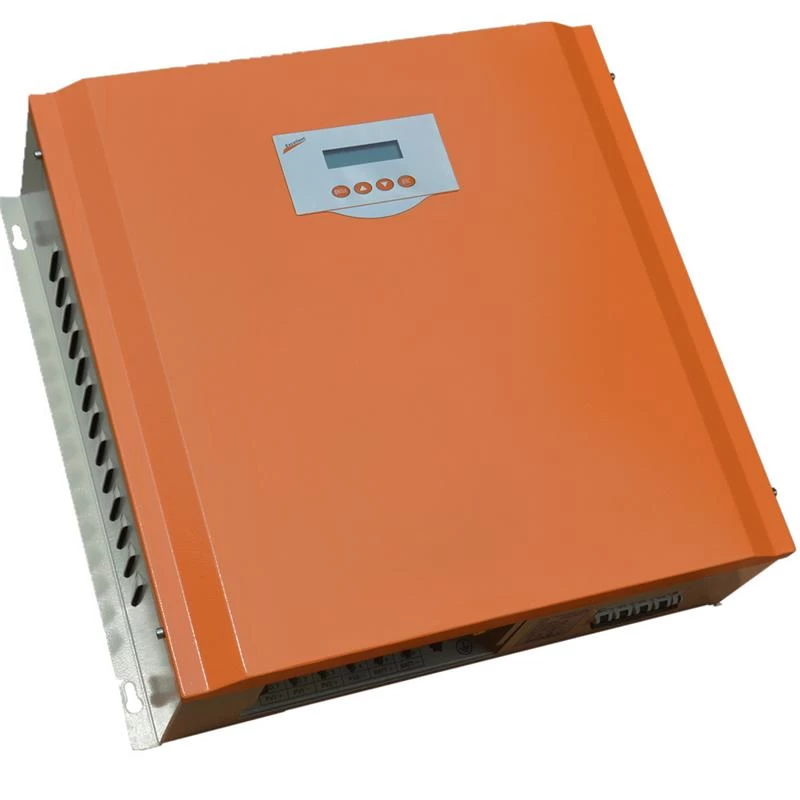

IGBT 10-30KW Solar charge controller
Description of solar charge controller
Technical Data of solar charge controller
|
System
Capability
|
|
Model
|
SSCP-48V
|
SSCP-96V
|
SSCP-120V
|
SSCP-240V
|
SSCP-360V
|
SSCP-380V
|
|
PV modules Vmp [V]
|
60-72
|
120-144
|
150-180
|
300-360
|
450-540
|
480-576
|
|
Module arrays
input [array]
|
1
|
|
Rated charging
current [A]
|
o20 o30 o50 o60 o75 o85 o100
|
|
Rated battery
bank voltage [V]
|
o240 o360 o380 o480 o540
|
|
Performance
|
|
Consumption at
standby [mA]
|
＜35
|
|
Consumption at
night [mA]
|
＜15
|
|
Topology
|
Transformerless
|
|
OperatingTemperatureRange
|
-25℃ to +60℃ (45℃ to 60℃ with derating)
|
|
Cooling Method
|
Convection with double cooling fans
|
|
Ambient Humidity
|
0%～98%
Non-condensing
|
|
Altitude [m]
|
Up to 2000 (without power derating)
|
|
General Data
|
|
Terminal
|
Universal KE series
|
|
LCD Display
|
LCD (16X2characters，green backlight)
|
|
Display Language
|
English
|
|
Data
communication
|
RS485
|
|
Ingress Protection Class
|
IP20 (indoor)
|
|
Noise [dBA]
|
＜30
|
|
Mounting
|
Wall
mounting type
|
|
Dimensions (W*D*H) [mm]
|
540 *530
*180
|
|
Net weight [kg]
|
15
|
|
Standard Warranty [year]
|
1
|

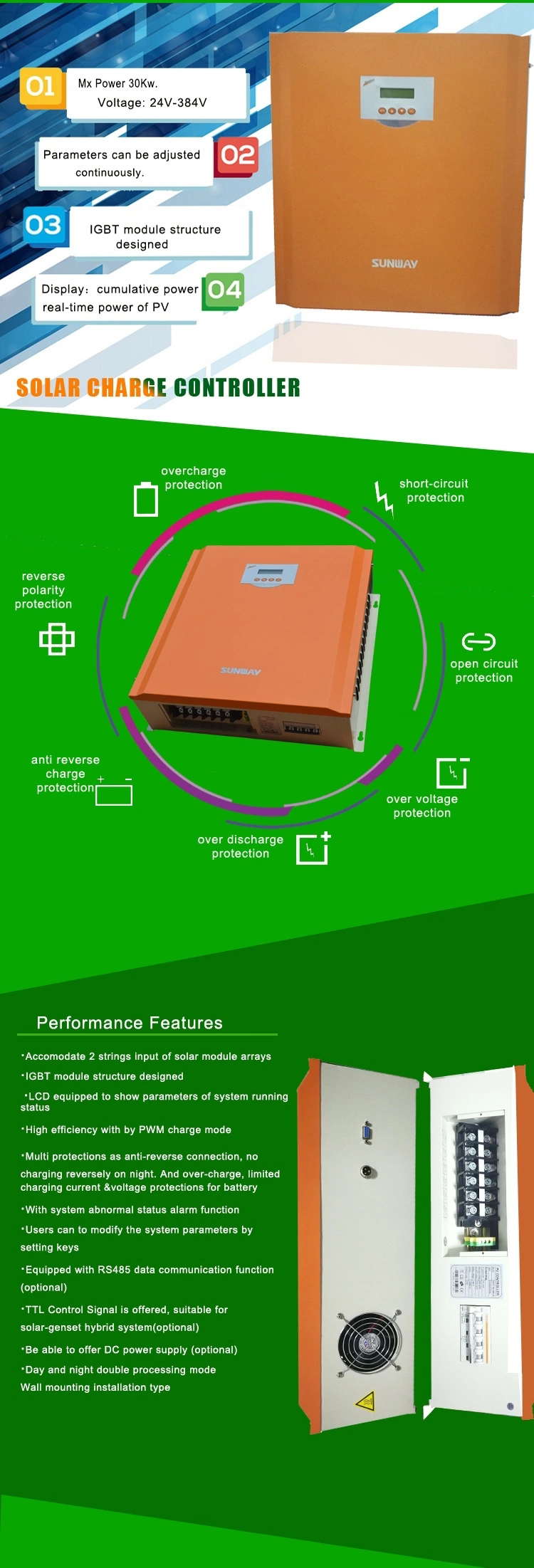

Product details of solar charge controller

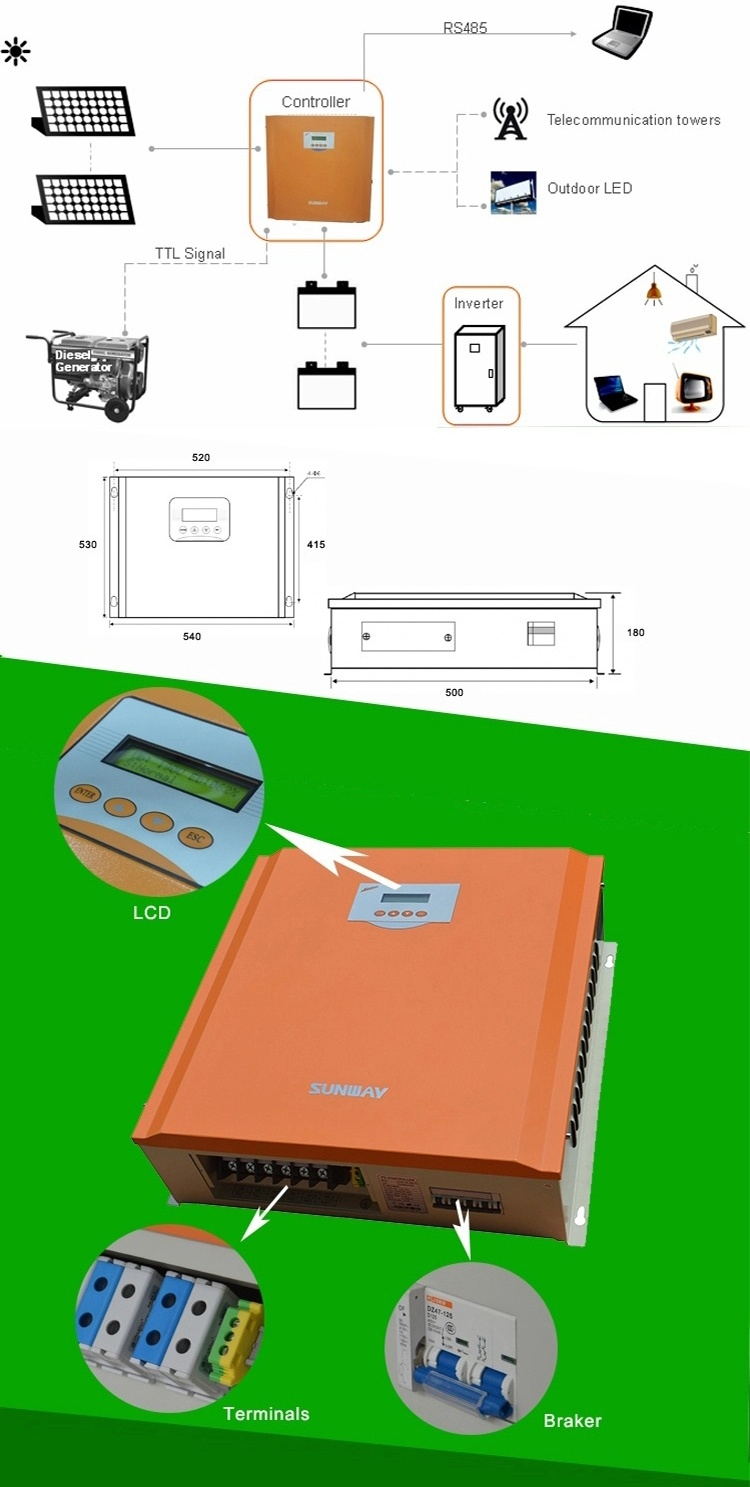

Topology of solar charge controller

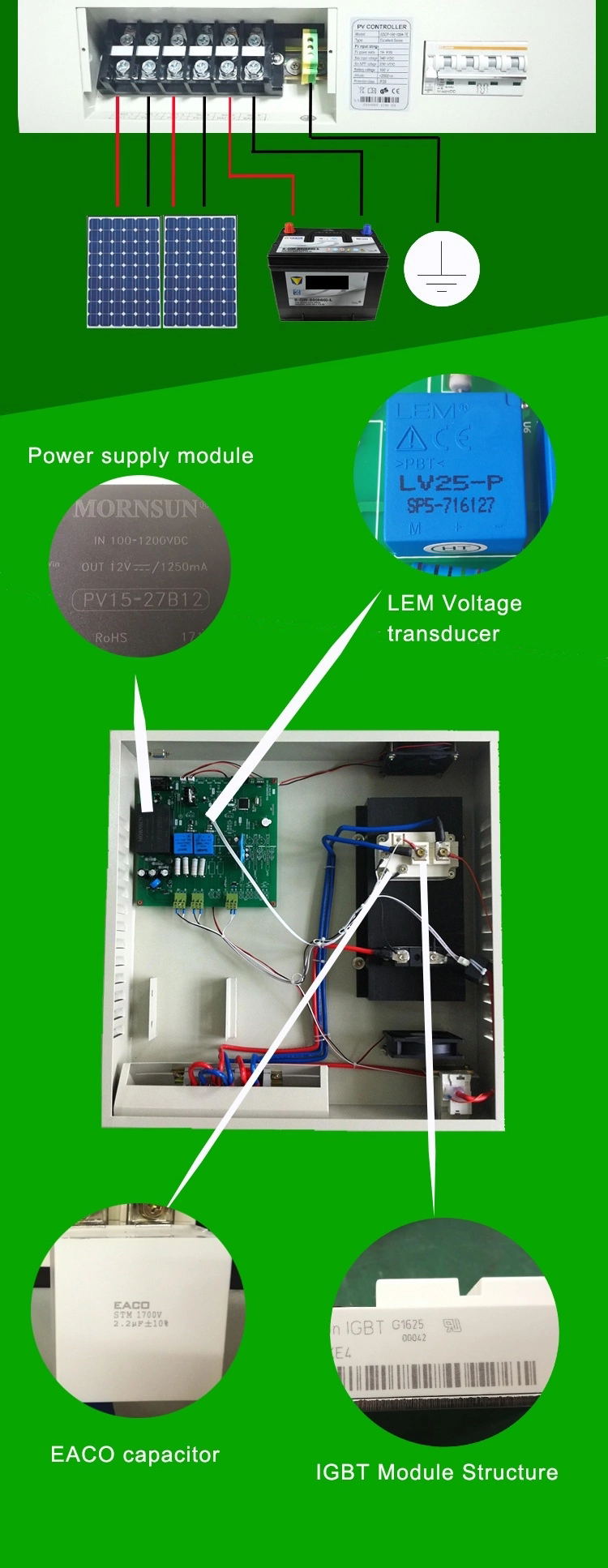

Assemly of solar charge controller
Project case of MPPT solar charge controller
Package and shippment of solar charge controller
Payment of solar charge controller
|
|
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
|
FOB
|
|
CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
|
CIF
|
|
|
L/C amount above 50,000 usd, we can accept L/C at sight
|
|
|
Amount lower than 5000usd
|
|
|
|
|
7~10days after receiving payment for one container
|
