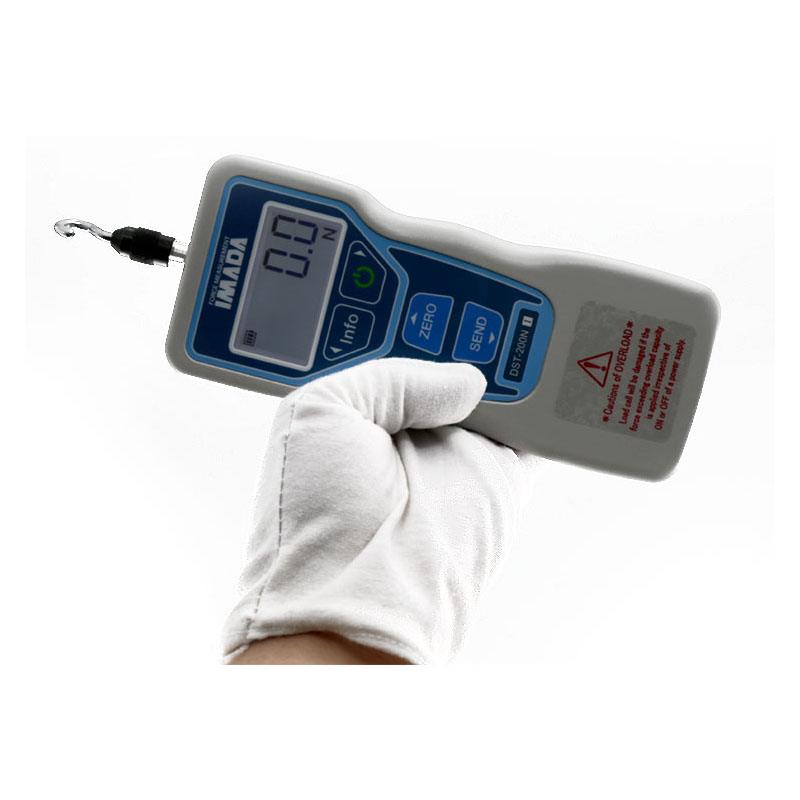

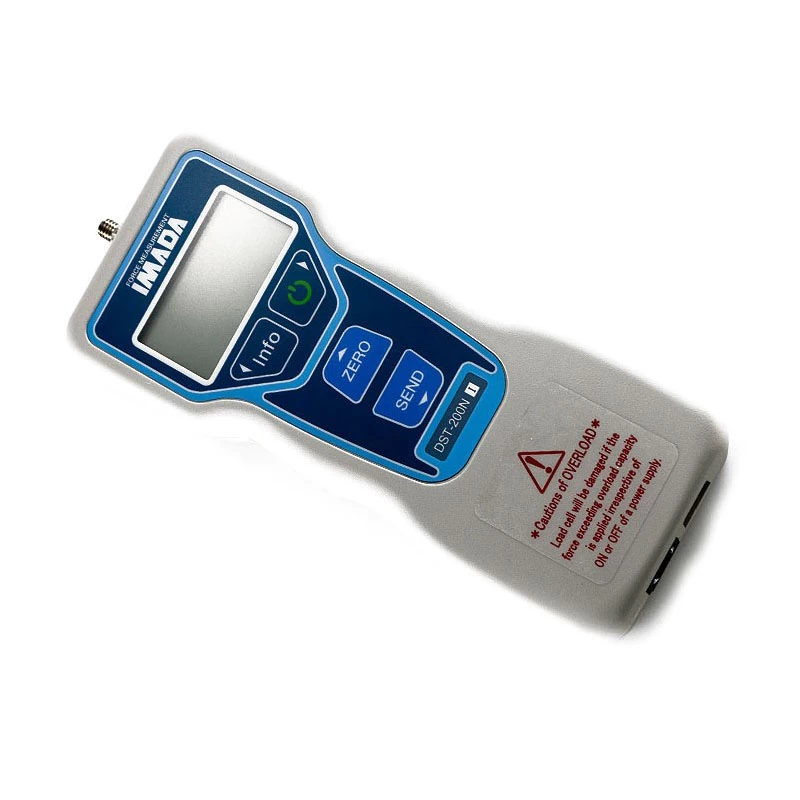

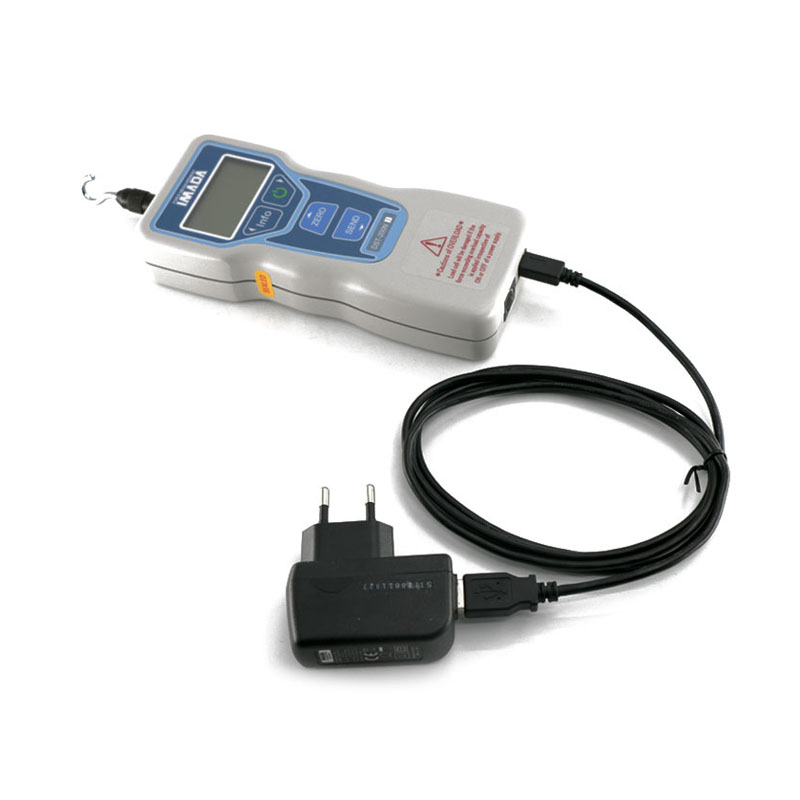

AT31-2-IMADA Digital Force Gauge
Application Of IMADA Digital Force Gauge
1. Tension and pressure measurement
2. Measure the touch pressure of a touch screen or keyboard
3. Measuring the welding force of electronic components
4. Test of tension and pressure for insertion and pull-out of wire connections
5. Test for opening of lid for cans or noodle containers
Feature Of IMADA Digital Force Gauge
-

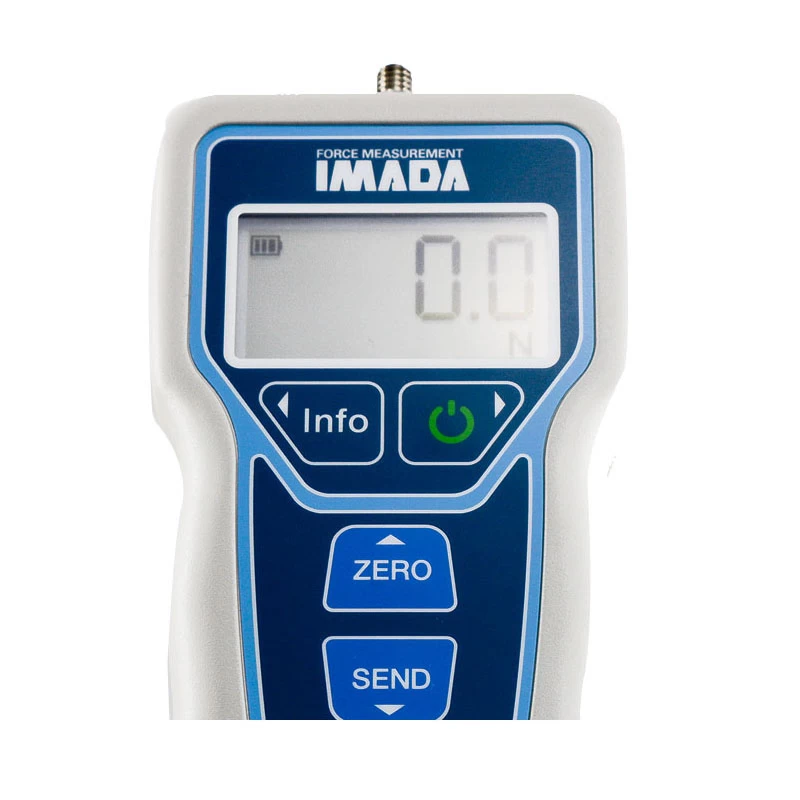

Digital model, easy to read test results.
-

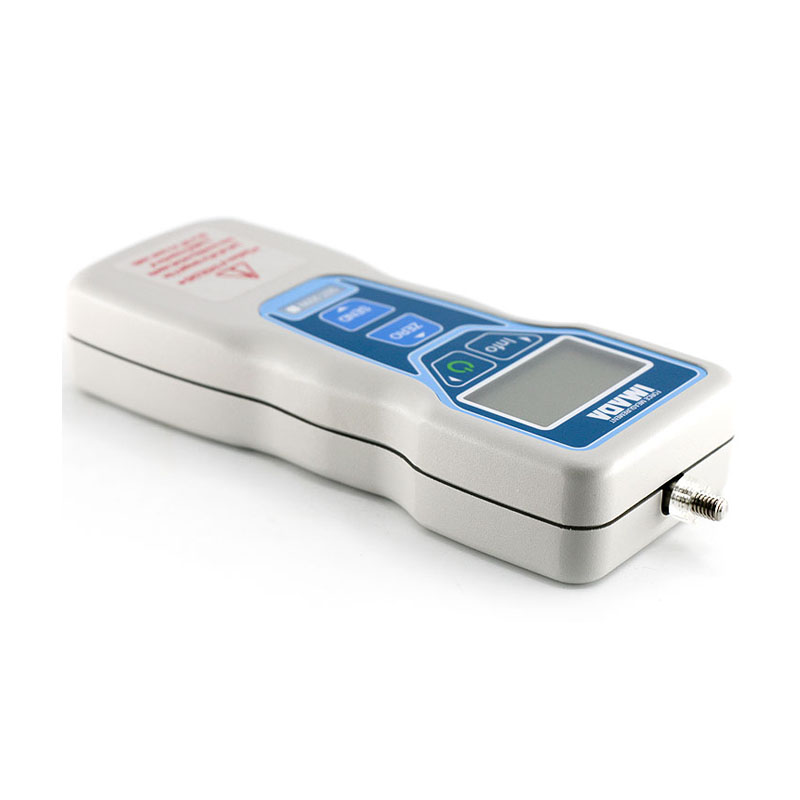

Aluminum alloy shell, sturdy and durable.
-
High precision, self weight zero adjustment and peak retention function
Standards Of IMADA Digital Force Gauge
EN-71-1 section 8.4, 8.6, 8.8, 8.13, 8.15, 8.25.2, 8.26.1.1, 8.26.3, 8.34, 8.36
ASTM F963 section 8.9, 8.10, 8.11, 8.16, 8.18.8
16CFR 1500 section 51, 52, 53
ISO 8124-1 section 5.19, 5.24.6, 5.24.7, 5.24.8, 5.31
GB6675-2 section 5.19, 5.24.6, 5.24.7, 5.24.8
Key Specification Of IMADA Digital Force Gauge
|
Model
|
AT31-2 IMADA Digital Force Gauge (DS2)
|
|
Control
mode
|
LCD digital mode
|
|
Accuracy
|
±0.2%F.S±1digit
|
|
Measurement
unit
|
Kgf / lb / N
|
|
Display
speed
|
10 times/ second
|
|
Power
supply
|
Nicd rechargeable battery with AC charger
|
|
Weight
|
420g
|
Model Of IMADA Digital Force Gauge
|
Model
|
Capacity
|
Display value
|
Min.value
|
|
DS2-2N
|
2N (200gf)
|
2.000N(200.00gf)
|
0.001N (0.1gf)
|
|
DS2-5N
|
5N (500gf)
|
5.000N(500.00gf)
|
0.001N (0.1gf)
|
|
DS2-20N
|
20N (2kgf)
|
20.00N(2.000gf)
|
0.01N (0.001kgf)
|
|
DS2-50N
|
50N (5kgf)
|
50.00N(5.000gf)
|
0.01N (0.001kgf)
|
|
DS2-200N
|
200N (20kgf)
|
200.0N(20.00gf)
|
0.1N (0.01kgf)
|
|
DS2-500N
|
500N (50kgf)
|
500.0N(50.00gf)
|
0.1N (0.01kgf)
|
|
DS2-1000N
|
1000N (100kgf)
|
1000N(100.0gf)
|
1N (0.1kgf)
|

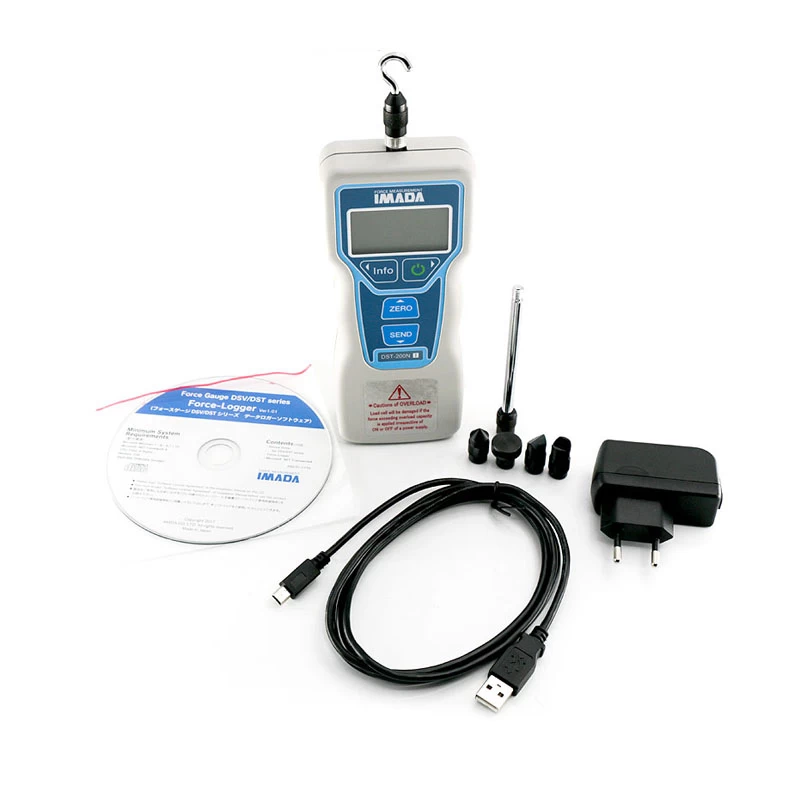

Accessories Of IMADA Digital Force Gauge
|
Standard Accessories
|

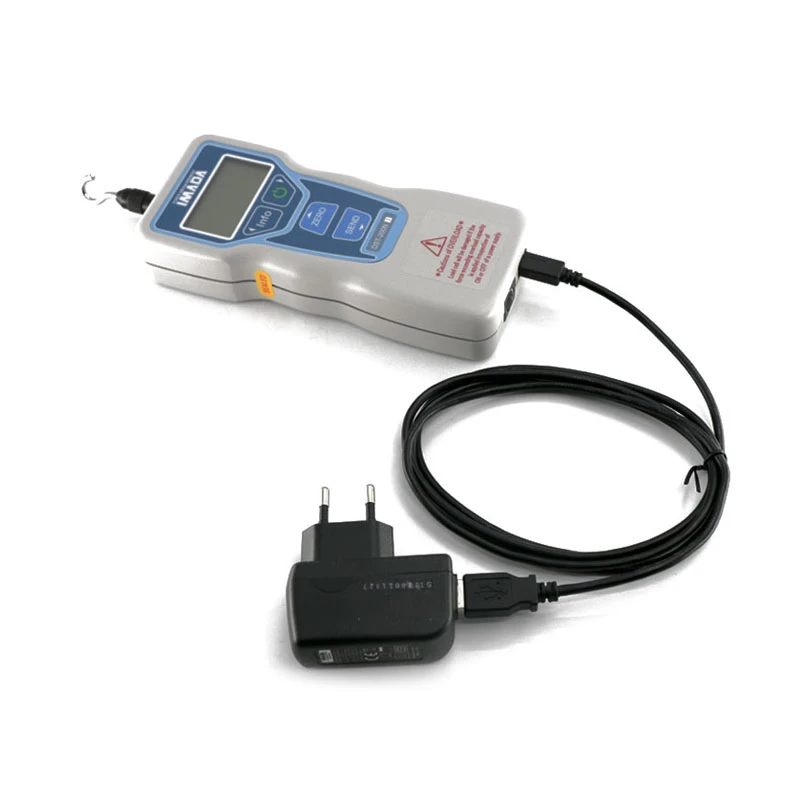

AC charger
|
1pc
|
|
Suitcase
|
1pc
|
