Printing Specification
|
|
Printing Method:
|
Thermal line
|
|
Paper Width:
|
58mm
|
|
Effective Printing Width:
|
48mm
|
|
Resolution:
|
8dots/mm(203dpi)
|
|
Dots per line:
|
384dots
|
|
Printing Speed:
|
max 100m/s for thermal paper, max 80mm/s for label paper
|
|
Paper Thickness:
|
60～140μm
|
|
Printable Content:
|
GB18030, BIG5,GB12345,Shift+JIS, ASCII,custom character set,figure
|
|
1DBarcode:
|
UPCA,UPCE,EAN13,EAN8,CODE39,ITF25,CODABAR,CODE93,CODE128
|
|
2D Barcode:
|
PDF417,QR CODE,DATA Matrix
|
|
Physical Parameters
|
|
Dimension (W×L×H):
|
140(L)X115(W)X51(H)mm
|
|
Physical Weight:
|
500g（not including paper）
|
|
Paper Roll Diameter:
|
Max 40.0mm
|
|
Interface:
|
USB, RS-232，Bluetooth
|
|
Environment Parameters
|
|
Operating Temp:
|
0℃~50℃
|
|
Operating Humidity:
|
10%~80%
|
|
Storage Temp:
|
-20℃~60℃
|
|
Storage Humidity:
|
10%~90%
|
|
Other Specification
|
|
Paper Loading Method:
|

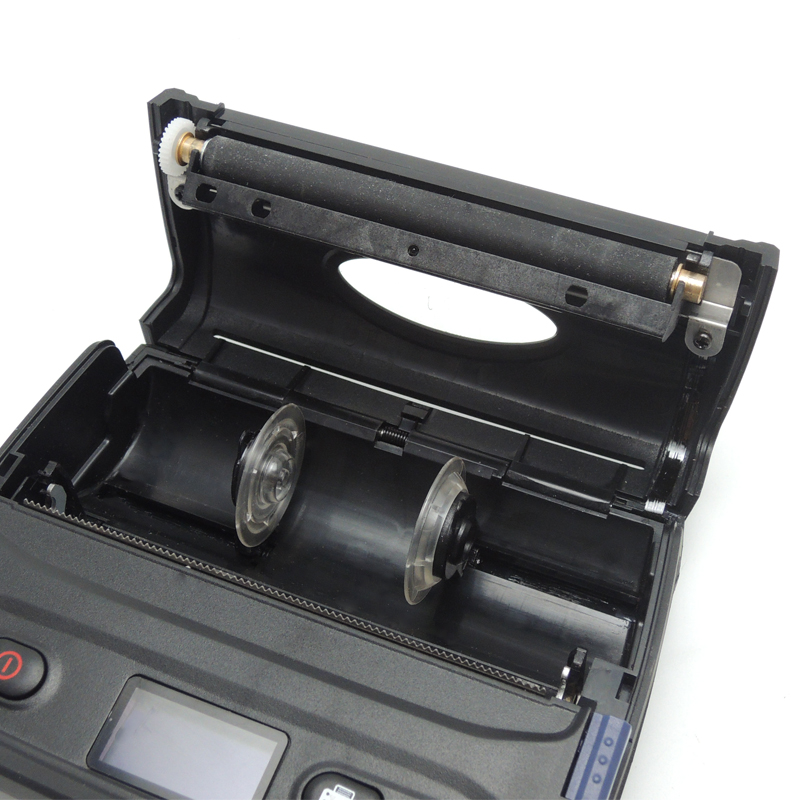

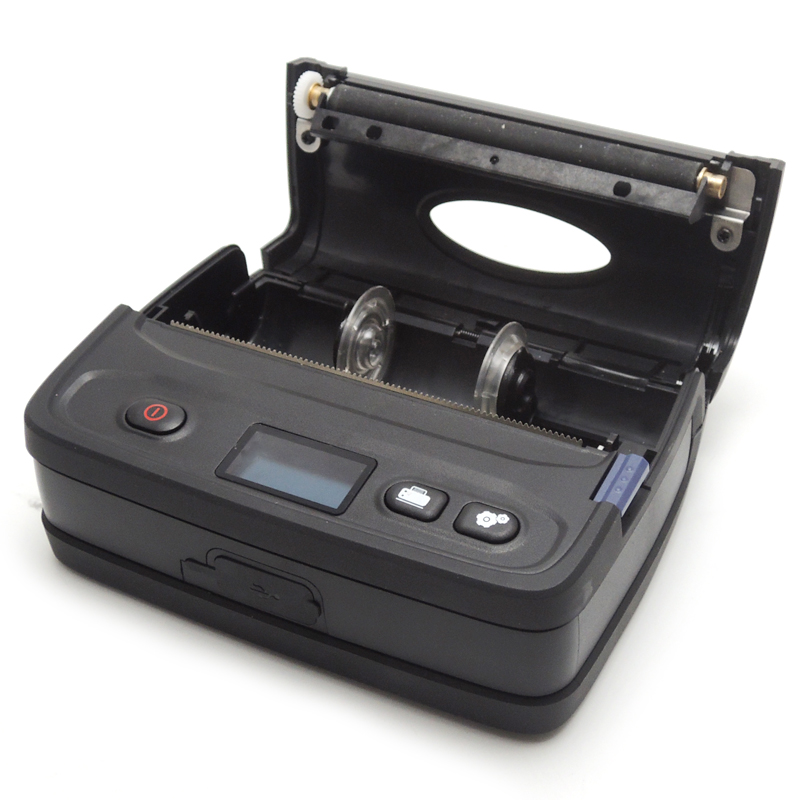

drop-in easy loading（please refer to details in 3.1.2 Paper Roll Installation)
|
|
Black Mark Location:
|
available(details please see 4.2 pre-printed black mark manual).
|
|
Printing Control Command:
|
ESC/POS compatible command set
(refer to<T11/L21Printer Developer Manual >).
|
|
Power Supply:
|
1600mAh rechargeable polymer lithium battery.
|
|
Low Power Alarm:
|
When the electric of battery will run out, the power indicator will be red to alarm if there is still printing data in printer. After printing, printer will be in sleeping mode and buzzer ‘one high one low’ prompt tone. Or printer will auto power off after buzzer ‘one high one low’ prompt tone if in the sleeping mode.
|
|
Auto-sleeping:
|
the printer will fall into sleep after in 2 seconds without button operation or receiving data , and can be awaken by pressing 【FEED】 button or sending data to it.
|
|
Battery Charging:
|
quick charging, it will be fully charged about 2 hours;
|
|
Battery Duration:
|
under 25% printing density, more than 90 meters; the standby time is over 15days. (These parameters are just for reference. Long term usage will cause the capacity decline, and can not ensure the time of printing.)
|
