The4.5 line / s high speed printing, support for multiple languages international;
Communicationinterface is optional, parallel, serial, Ethernet, USB;
Supportof different density and download print bitmap graphics;
Supportfor advanced OPOS applications, support the printer status monitoring function;
Supportto a single function, compatible with ESC/POS print command;

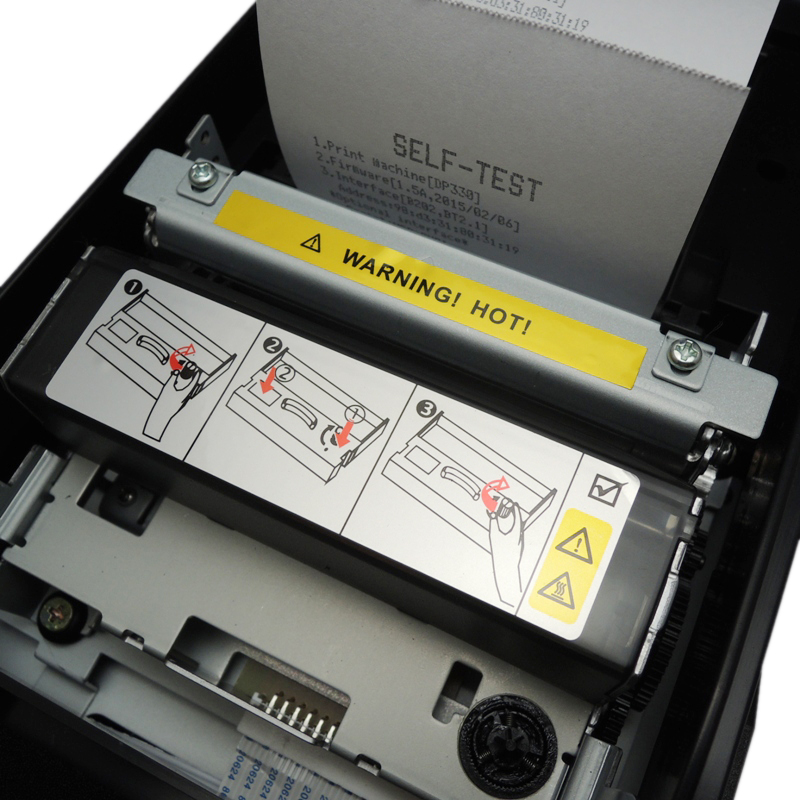

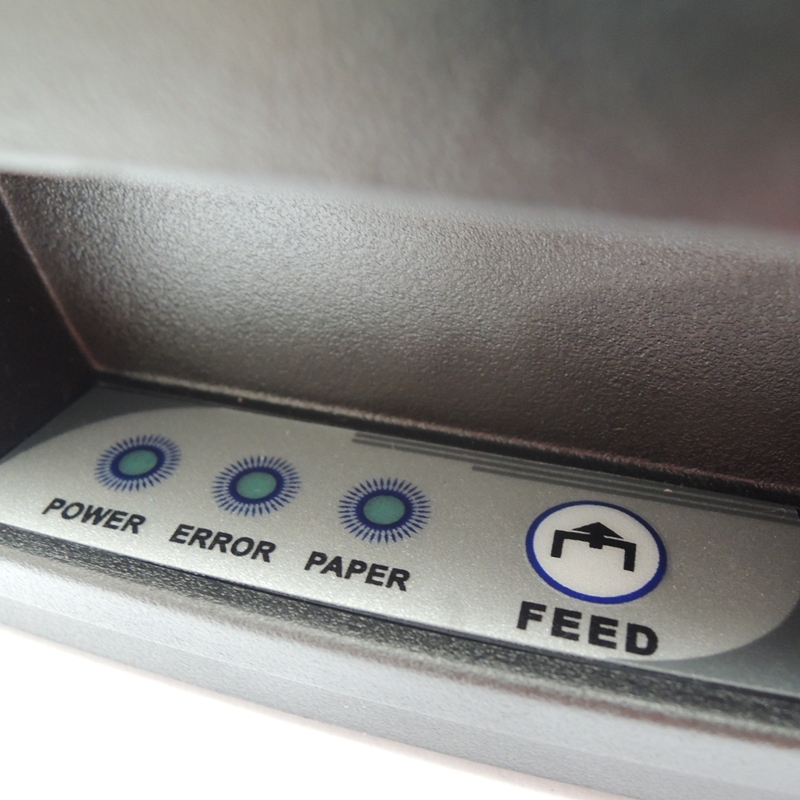

Supportthe lack of paper print head overheating, error alarm;
Ethernetprinter can achieve 2 connected tasks at the same time saved;
Supportblack label detection positioning printing, print server print support network;
Supportserial/USB/LAN/Bluetooth interfaces
|
Specification:
|
|
|
Printingg
|

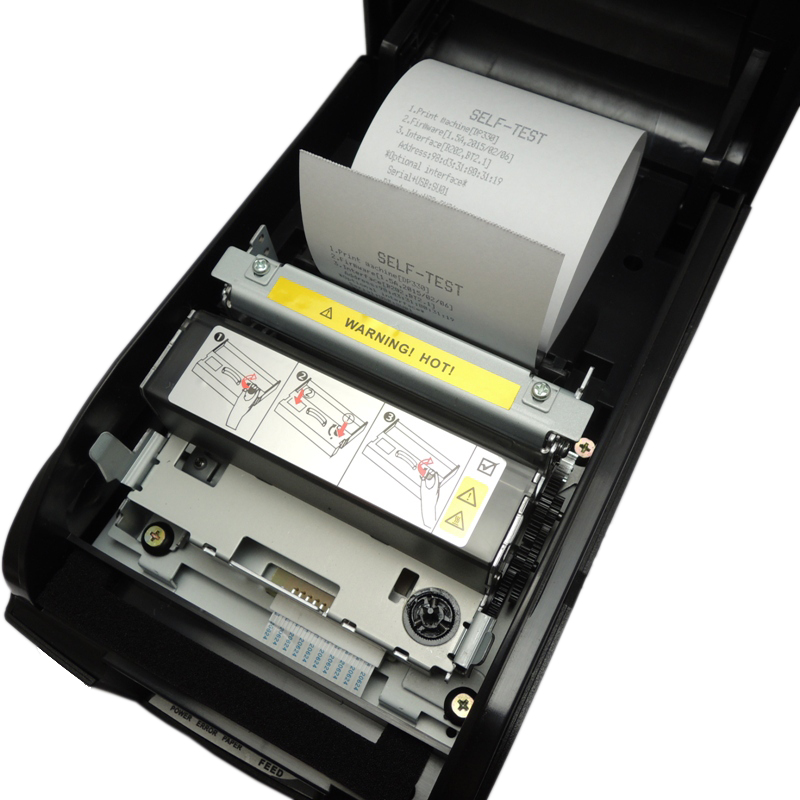

Print method
|
9pin impact dot matrix printing
|
|
Print width
|
76mm
|
|
Print resolution
|
400dot/line
|
|
Print speed
|
4.5line/sec
|
|

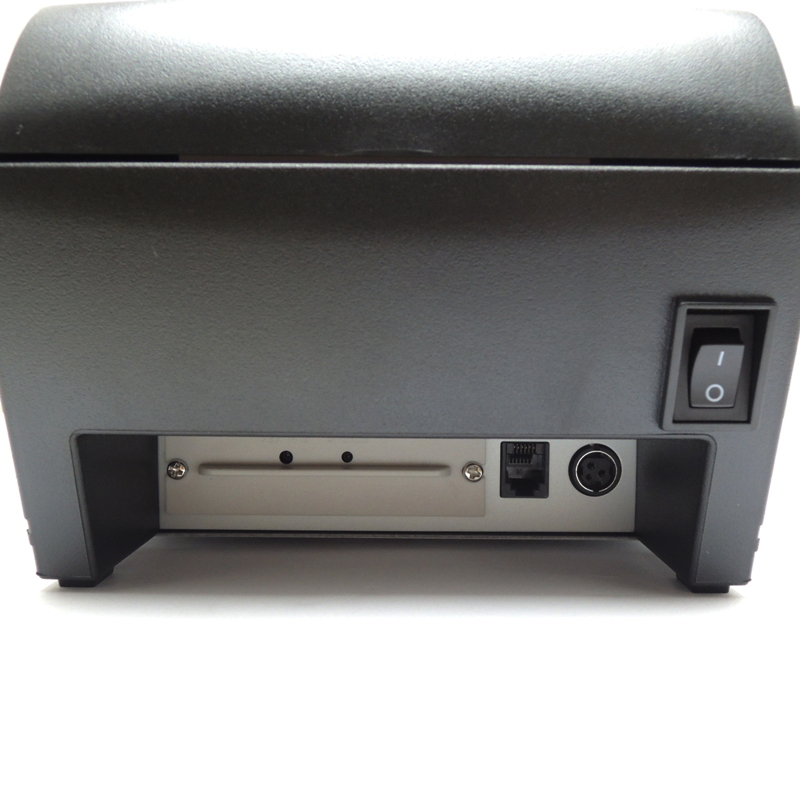

Interface
|
Serial/USB/Parallel/Ethernet/Bluetooth
|
|
Paper diameter
|
75.5 ±0.5mm, diameter:Φ75mm
|
|
Line space
|
4.23mm(can be adjustive)
|
|
Character Size
|
ANK Font Font A: 9×9dots Font B: 7×9dots, Simplified/Traditional Chinese Character: 16×16dots
|
|
Barcode
|
Code page
|
PC437/Katakana/PC850/PC860/PC863/PC865/West Europe/Greek/Hebrew/East Europe/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC1257/Thai Vietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)
|
|
Fonts
|
GB2312
|
|
Buffer
|
Data
|
4K bytes
|
|
NV Flash
|
60K bytes
|
|
Power
|
Cashdrawer out
|
DC 24V/1A
|
|

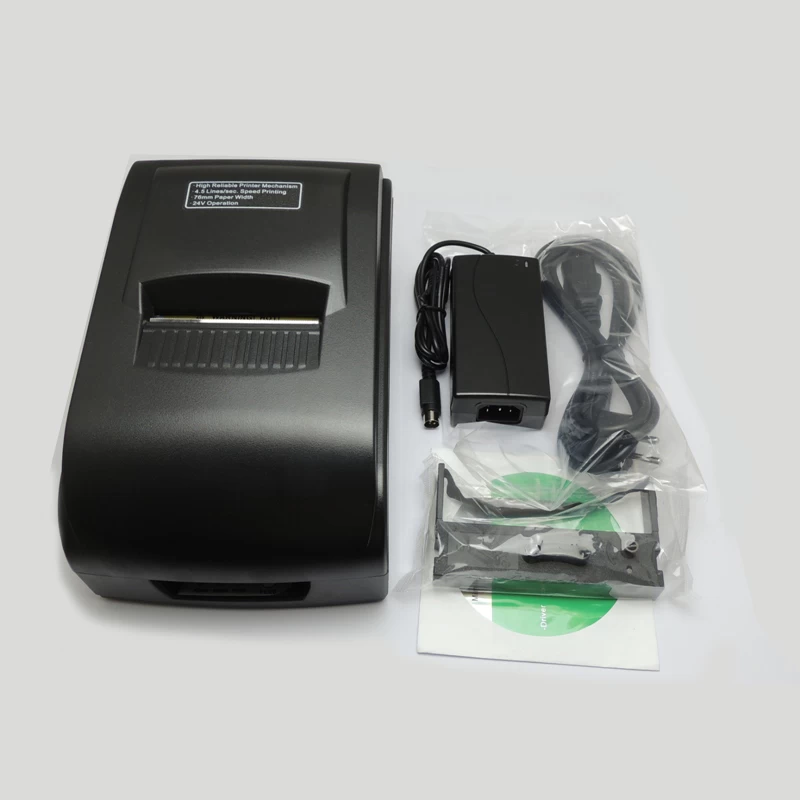

Power supply
|
AC 110V/220V, 50~60Hz DC 24V/2A
|
|
Physical properties
|
Weight
|
1.96kg
|
|
Dimension
|
240×155×140mm
|
|
Environment
|
Work environment
|
Temperature: 0~45℃, Humidity: 10~80%
|
|
Storage environment
|
Temperature: -10~60℃, Humidity: 10~90%
|
|
Reliability
|
Mechanism
|
10 million lines
|
