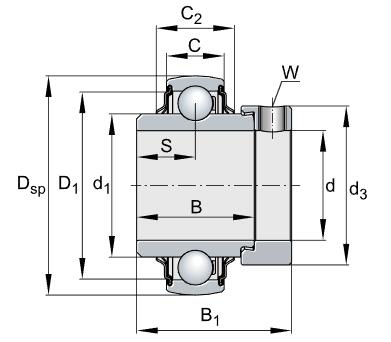

Original Germany Bearing INA Chrome Steel Bearing GRAE25-NPP-B Specification:
Bearing Number:GRAE25-NPP-B
Inner Size (d):25 mm B:21.4mm
Outer Size (Dsp):52mm C2:15mm
Outer Ring Bore (B1):31mm C:4.1mm
Material :Chrome steel GCR15
Other INA Bearings Number For Your Reference :
|
Bearing Series
|
For
shaft diameter in mm
|
Features
|
|
GRAE..-NPP-B
|
12-60mm
|
Spherical outer ring,location by
eccentric locking collar ,P seals on both sides
|
|
RAE..-NPP-B
|
12-50mm
|
Spherical outer ring,location by
eccentric locking collar ,P seals on both sides
|
|
RALE..-NPP-B
|
20-30mm
|
Spherical outer ring,location by
eccentric locking collar ,P seals on both sides
|
|
RA..-NPP-B
|
5/8''-1 1/2''
|
Spherical outer ring,location by
eccentric locking collar ,P seals on both sides,inch size bore
|
|
GE..-KRR-B
|
17-120
|
Spherical outer ring,location by
eccentric locking collar ,R seals on both sides
|
INA Radial Insert Ball Bearings GRAE..-NPP-B Series:
spherical outer ring,location by eccentric locking collar,P seals on both sides
|
Bearings
No.
|
d(mm)
|
DSP(mm)
|
B1(mm)
|
|
GRAE-12-NPPB
|
12
|
40
|
28.6
|
|
GRAE-15-NPPB
|
15
|
40
|
28.6
|
|
GRAE-17-NPPB
|
17
|
40
|
28.6
|
|
GRAE-20-NPPB
|
20
|
47
|
31
|
|
GRAE-25-NPPB
|
25
|
52
|
31
|
|
GRAE-30-NPPB
|
30
|
62
|
35.8
|
|
GRAE-35-NPPB
|
35
|
72
|
39
|
|
GRAE-40-NPPB
|
40
|
80
|
43.8
|
|
GRAE-45-NPPB
|
45
|
85
|
43.8
|
|
GRAE-50-NPPB
|
50
|
90
|
43.8
|
|
GRAE-55-NPPB
|
55
|
100
|
48.4
|
|
GRAE-60-NPPB
|
60
|
110
|
53.1
|
RAE..-NPP-B Bearing Series:
|
Bearings
No.
|
d(mm)
|
DSP(mm)
|
B1(mm)
|
|
RAE12-NPP-B
|
12
|
40
|
28.6
|
|
RAE15-NPP-B
|
15
|
40
|
28.6
|
|
RAE17-NPP-B
|
17
|
40
|
28.8
|
|
RAE20-NPP-B
|
20
|
47
|
31
|
|
RAE25-NPP-B
|
25
|
52
|
31
|
|
RAE30-NPP-B
|
30
|
62
|
35.8
|
|
RAE35-NPP-B
|
35
|
72
|
39
|
|
RAE40-NPP-B
|
40
|
80
|
43.8
|
|
RAE50-NPP-B
|
50
|
90
|
43.8
|
RALE..-NPP-B Bearing :
|
Bearings
No.
|
d(mm)
|
DSP(mm)
|
B1(mm)
|
|
RALE20-NPP-B
|
20
|
42
|
24.5
|
|
RALE25-NPP-B
|
25
|
47
|
25.5
|
|
RALE30-NPP-B
|
30
|
55
|
26.5
|
RA..-NPP-B Series Bearing :
|
Bearings
No.
|
d(mm)
|
DSP(mm)
|
B1(mm)
|
|
RA100-NPP-B
|
25.4
|
52
|
31
|
|
RA104--206-NPP-B
|
31.75
|
62
|
35.8
|
|
RA104-NPP-B
|
31.75
|
72
|
39
|
|
RA108-NPP-B
|
38.1
|
80
|
43.8
|
Radial insert ball bearings GE..-KRR-B
spherical outer ring,location by eccentric locking collar,R seals on both sides
|
Bearings
No.
|
d(mm)
|
DSP(mm)
|
B1(mm)
|
|
GE17-KRR-B
|
17
|
40
|
37.4
|
|
GE20-KRR-B
|
20
|
47
|
43.7
|
|
GE25-KRR-B
|
25
|
52
|
44.5
|
|
GE30-KRR-B
|
30
|
62
|
48.5
|
|
GE35-KRR-B
|
35
|
72
|
51.3
|
|
GE40-KRR-B
|
40
|
80
|
56.5
|
|
GE45-KRR-B
|
45
|
85
|
56.5
|
|
GE50-KRR-B
|
50
|
90
|
62.8
|
|
GE55-KRR-B
|
55
|
100
|
71.4
|
|
GE60-KRR-B
|
60
|
110
|
77.9
|
|
GE65-214-KRR-B
|
65
|
125
|
66
|
|
GE70-KRR-B
|
70
|
125
|
66
|
|
GE75-KRR-B
|
75
|
130
|
67
|
|
GE80-KRR-B
|
80
|
140
|
70.7
|
|
GE90-KRR-B
|
90
|
160
|
69.5
|
|
GE100-KRR-B
|
100
|
180
|
75
|
|
GE120-KRR-B
|
120
|
215
|
81
|
We Can Provice High Precision INA Bearing,Below Number Are Widely Used:
GRAE12NPPB,GRAE15NPPB,GRAE17NPPB,GRAE20NPPB,GRAE35NPPB,GRAE40NPPB,GRAE45NPPB,GRAE50NPPB

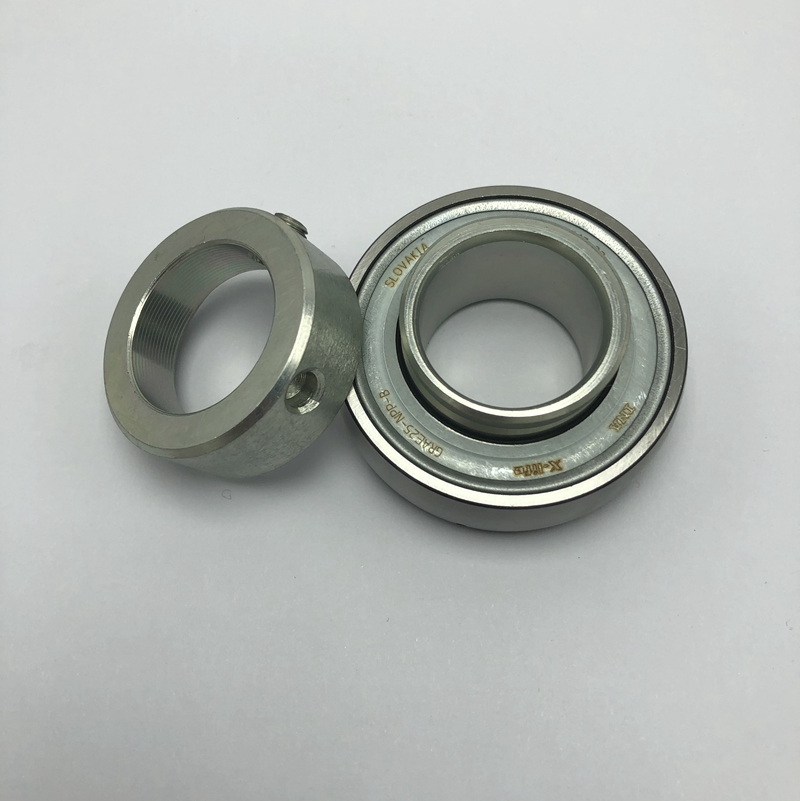

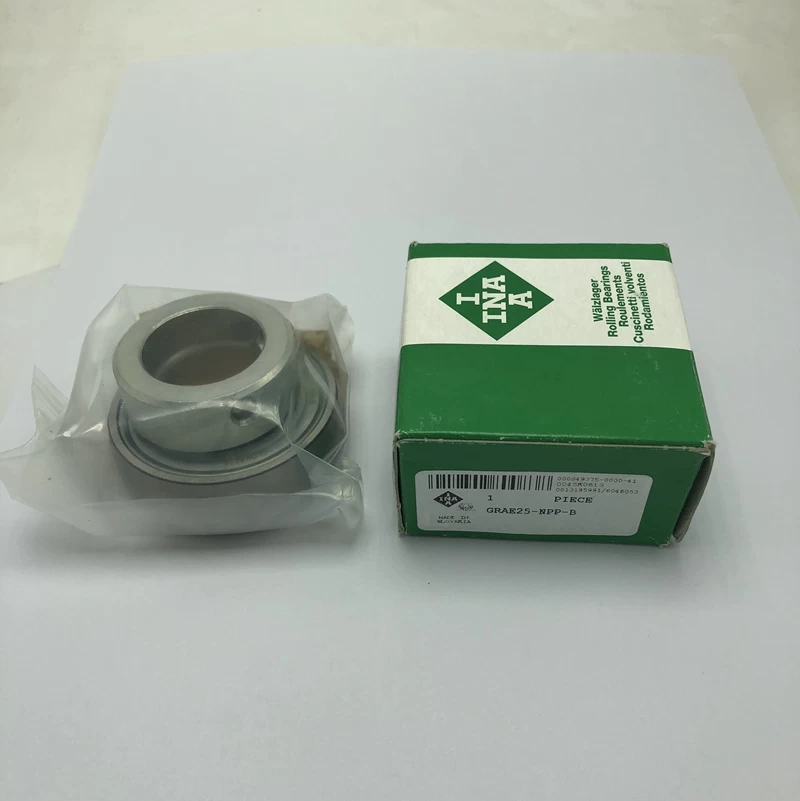

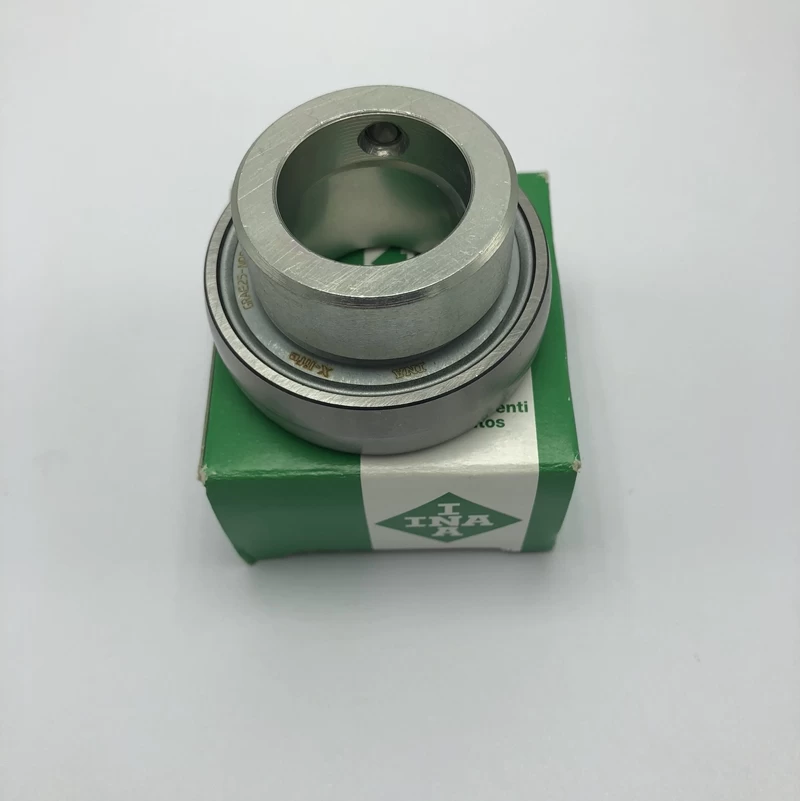

INA Insert Ball Bearings Picture
Applications For Ina Radial Insert Ball Bearings:
-
agricultural,construction and mining machinery
-
power transmission and conveying equipment
-
pumps
-
textile,paper and woodworking machinery
-
machines for the food container filling,wood and packaging industry
-
steel industry
