INA HK3016-2RS Needle Bearing Specification
d:30 mm*D:37 mm*H:16 mm
rmin:0.8 mm
Cr:12.1 KN; Cor:18.2 KN
Material :Chrome steel
Product Features

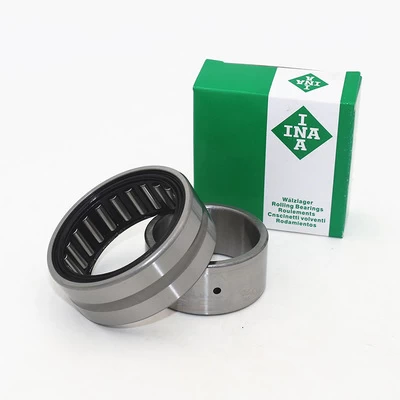

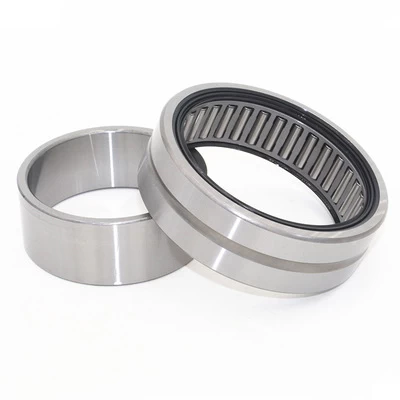

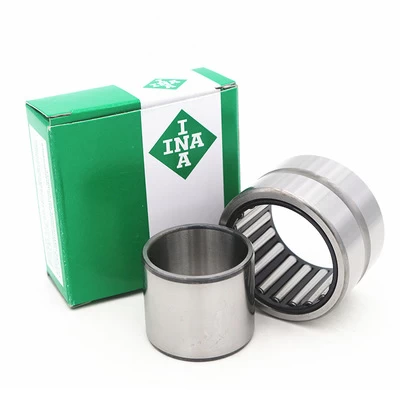

Sealed Drawn cup type needle roller bearing with open end including two rubber seals 30mm inside x 37mm outside x 16mm wide.
Due to the thin walled outer cup and the design without an inner ring, drawn cup needle roller bearings have extremely small radial dimensions. They have high load carrying capacity, are suitable for high speeds and are particularly easy to fit.
Drawn cup needle roller bearings require a hardened and ground bearing raceway on the shaft. If the shaft cannot be used as a raceway, they can be combined with inner rings IR or LR.
The lip seals give protection against contamination, spray water and the loss of lubricant. Sealed bearings are greased with lithium complex soap grease to GA08.
For textile machinery ,needle bearings can packed with oil or oil-mist lubrication,is this ways ,the bearings can with high speed and lower noise for heavy-duty or high-speed applications.

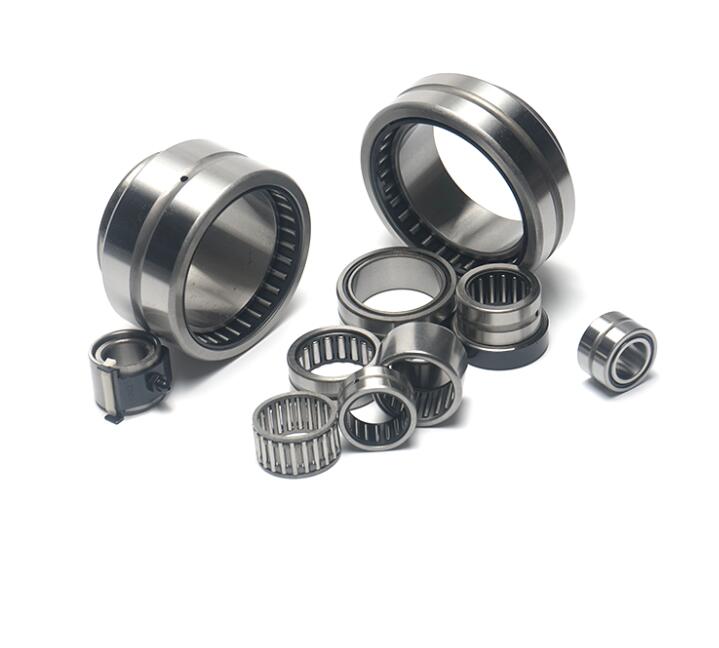

We can provide other type needle bearings :
Drawn Cup Needle Roller Bearings
HK, BK
SCE, BCE
Sealed type HK…RS, HK…2RS, BK…RS
Entity Bushed Needle Roller Bearings:
Needle roller bearings without inner ring NK, NKS, RNA49, RNA69
Needle roller bearings with inner ring NKI, NKIS, NA49, NA69
Sealed needle roller bearings without inner ring RNA49… RS, RNA49…2RS
Sealed needle roller bearings with inner ring NA49…RS, NA49…2RS
Needle roller bearings without retaining edge RNAONEEDLE
Needle roller bearings without retaining edge with inner ring NAO
Needle roller bearings without inner ring inch system BR
