Housing units are the parts ready-to-fit ,they are consist of cast iron housings and the Chrome steel radial insert ball bearings,this new bearing housing can be work very well in reliability with all different operating environment, the bearings and housings are matched to each other. with the spherical outside surface of the bearing outer ring andthe concave housing bore, bearing housing is for staticangular misalignment of the shaft .The units are used predominantly as locating bearings, and the suitableas non-locating bearings under low loads and speeds.The housings are screw mounted on the adjacent construction.

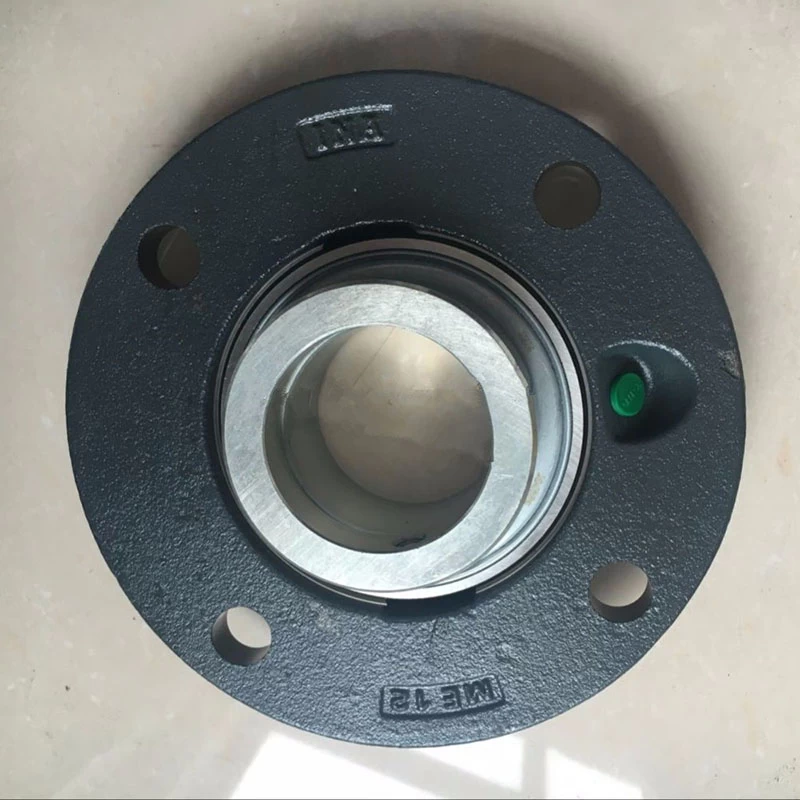

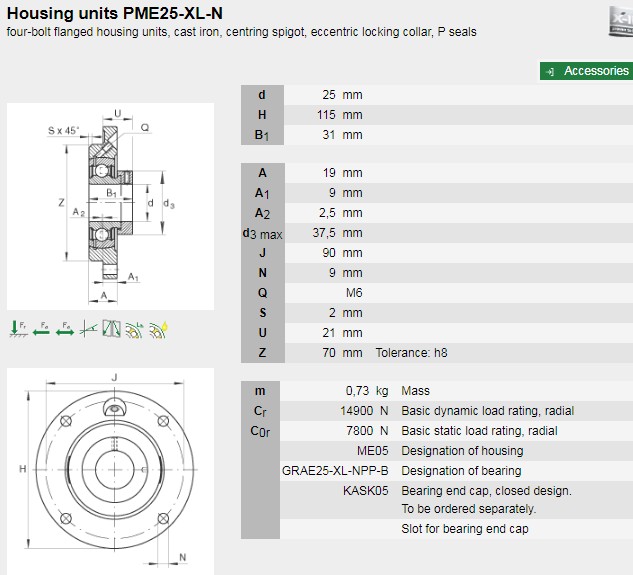

Original INA Bearing Unit PME25-XL-N Introduction :
Bearing number :PME25-XL-N
Type : Four-bolt flanged housing units
Match insert ball bearing : INA GRAE25-XL-NPP-B
Size :25*115*31mm
Material : housing with cast iron ,inset ball bearing with Chrome steel
INA Housing Unit PME Number For Your Reference :
|
Housing
Units No.:
|
d(mm)
|
H(mm)
|
B1(mm)
|
|
PME20-XL-N
|
20
|
100
|
31
|
|
PME25-XL-N
|
25
|
115
|
31
|
|
PME30-XL-N
|
30
|
125
|
35.8
|
|
PME35-XL-N
|
35
|
135
|
39
|
|
PME40-XL-N
|
40
|
145
|
43.8
|
|
PME45-XL
|
45
|
155
|
43.8
|
|
PME50-XL-N
|
50
|
165
|
43.8
|
|
PME55-XL
|
55
|
185
|
48.4
|
|
PME60-XL-N
|
60
|
195
|
53.1
|
INA Bearing Unit ,Bearing Housing ,And Radial Insert Ball Beaing March :
|
Units
|
Housing
|
Radial insert
ball bearing
|
|
PME20-N
|
GG.ME04-N
|
GRAE20-NPP-B
|
|
PME20-N
|
GG.ME04-N
|
GE20-KRR-B
|
|
TME20-N
|
GG.ME04-N
|
GE20-KTT-B
|
|
PMEY20-N
|
GG.ME04-N
|
GAY20-NPP-B
|
|
RMEY20-N
|
GG.ME04-N
|
GYE20-KRR-B
|
|
PME25-N
|
GG.ME05-N
|
GRAE25-NPP-B
|
|
PME25-N
|
GG.ME05-N
|
GE25-KRR-B
|
|
TME25-N
|
GG.ME05-N
|
GE25-KTT-B
|
|
PMEY25-N
|
GG.ME05-N
|
GAY25-NPP-B
|
|
RME25-N
|
GG.ME05-N
|
GYE25-KRR-B
|
|
PME30-N
|
GG.ME06-N
|
GRAE30-NPP-B
|
|
PME30-N
|
GG.ME06-N
|
GE30-KRR-B
|
|
TME30-N
|
GG.ME06-N
|
GE30-KTT-B
|
|
PMEY30-N
|
GG.ME06-N
|
GAY30-NPP-B
|
|
RME30-N
|
GG.ME06-N
|
GYE30-KRR-B
|
|
PME35-N
|
GG.ME07-N
|
GRAE35-NPP-B
|
|
PME35-N
|
GG.ME07-N
|
GE35-KRR-B
|
|
TME35-N
|
GG.ME07-N
|
GE35-KTT-B
|
|
PMEY35-N
|
GG.ME07-N
|
GAY35-NPP-B
|
|
RME35-N
|
GG.ME07-N
|
GYE35-KRR-B
|
|
PME40-N
|
GG.ME08-N
|
GRAE40-NPP-B
|
|
PME40-N
|
GG.ME08-N
|
GE40-KRR-B
|
We also can produe INA Ball Bearing spherical outer ring,location by eccentric locking collar,P seals on both sides as below series :
GRAE12NPPB,GRAE15NPPB,GRAE17NPPB,GRAE20NPPB,GRAE35NPPB,GRAE40NPPB,GRAE45NPPB,GRAE50NPPB
|
Bearing Series
|
For
shaft diameter in mm
|
Features
|
|
GRAE..-NPP-B
|
12-60mm
|
Spherical outer ring,location by
eccentric locking collar ,P seals on both sides
|
|
RAE..-NPP-B
|
12-50mm
|
Spherical outer ring,location by
eccentric locking collar ,P seals on both sides
|
|
RALE..-NPP-B
|
20-30mm
|
Spherical outer ring,location by
eccentric locking collar ,P seals on both sides
|
|
RA..-NPP-B
|
5/8''-1 1/2''
|
Spherical outer ring,location by
eccentric locking collar ,P seals on both sides,inch size bore
|
|
GE..-KRR-B
|
17-120
|
Spherical outer ring,location by
eccentric locking collar ,R seals on both sides
|
Application Of INA Bearing Units :
INA Bearing can be widely used in metallurgy ,mining ,petroleum,chemical,coal,cement ,paper,windpower,heavy machinery ,enginnering machinery,port machinery and other industries.
1. With high precision INA Bearing Unit can be use in Auto wheel hub, Auto engine, Auto axle.
2. Agricultural machinery, Rotary plow bearings, Tractor, Water pump, Oil engine harvester, Seeder, Tricycle, Farm vehicle, Cultivator
3.Engineering machinery, Excavator, Dozer, Paver, Loader, Hoisting machinery, Piling soil machinery
4. Steel mill machinery, Oil field machinery, Motorship machinery
5. Hardware tool, Electric power tool, Household appliance industry
6. Electronic toys, Fitness equipment, Building machinery
7. Series Of Pumps, Antiseptic Pump, Water pump, Submersible pump, Sewage pump
