Precision Insert Bearing GE25-XL-KRR-B Introduction :
|

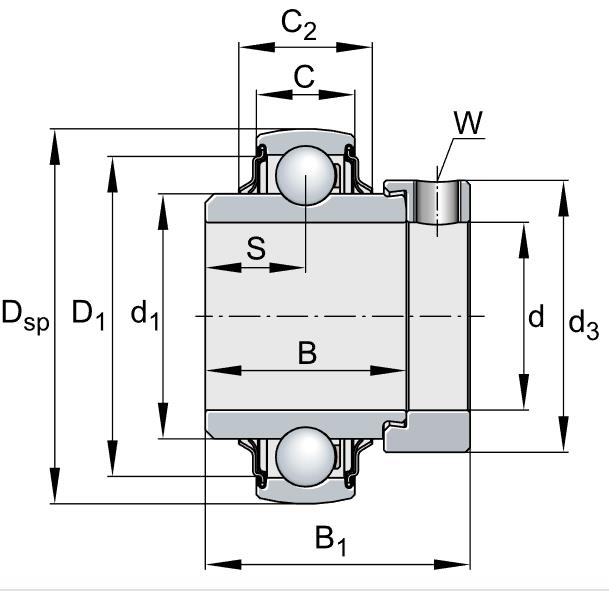

d
|
25 mm
|
|
DSP
|
52 mm
|
|
B1
|
44,5 mm
|
|
B
|
34,9 mm
|
|
C
|
15 mm
|
|
C2
|
16,7 mm
|
|
Ca
|
4,1 mm
|
|
D1
|
42,5 mm
|
|
d1
|
33,8 mm
|
|
d3 max
|
37,5 mm
|
|
S
|
17,5 mm
|
|
W
|
3 mm
|
|
m（Mass)
|
0,25 kg
|
|
Cr(Basic
dynamic load rating, radial)
|
14900 N
|
|
C0r(Basic
static load rating, radial)
|
7800 N
|
|
Cur(Fatigue
limit load, radial)
|
410 N
|
|
f0(Calculation
factor)
|
13,8
|
We Can Provide Other INA Bearings Series:
|
Bearing Series
|
For
shaft diameter in mm
|
Features
|
|
GRAE..-NPP-B
|
12-60mm
|
Spherical outer ring,location by
eccentric locking collar ,P seals on both sides
|
|
RAE..-NPP-B
|
12-50mm
|
Spherical outer ring,location by
eccentric locking collar ,P seals on both sides
|
|
RALE..-NPP-B
|
20-30mm
|
Spherical outer ring,location by
eccentric locking collar ,P seals on both sides
|
|
RA..-NPP-B
|
5/8''-1 1/2''
|
Spherical outer ring,location by
eccentric locking collar ,P seals on both sides,inch size bore
|
|
GE..-KRR-B
|
17-120
|
Spherical outer ring,location by
eccentric locking collar ,R seals on both sides
|
GE-KRR-B Series Bearing List :
|
Bearing
No.
|
d
|
DSP
|
B1
|
|
mm
|
mm
|
mm
|
|
GE17-XL-KRR-B
|
17
|
40
|
37,4
|
|
GE20-XL-KRR-B
|
20
|
47
|
43,7
|
|
GE25-XL-KRR-B
|
25
|
52
|
44,5
|
|
GE30-XL-KRR-B
|
30
|
62
|
48,5
|
|
GE35-XL-KRR-B
|
35
|
72
|
51,3
|
|
GE40-XL-KRR-B
|
40
|
80
|
56,5
|
|
GE45-XL-KRR-B
|
45
|
85
|
56,5
|
|
GE50-XL-KRR-B
|
50
|
90
|
62,8
|
|
GE55-XL-KRR-B
|
55
|
100
|
71,4
|
|
GE60-XL-KRR-B
|
60
|
110
|
77,9
|
|
GE65-214-XL-KRR-B
|
65
|
125
|
66
|
|
GE70-XL-KRR-B
|
70
|
125
|
66
|
|
GE75-XL-KRR-B
|
75
|
130
|
67
|
|
GE80-XL-KRR-B
|
80
|
140
|
70,7
|
|
GE90-XL-KRR-B
|
90
|
160
|
69,5
|
|
GE100-XL-KRR-B
|
100
|
180
|
75
|
|
GE120-XL-KRR-B
|
120
|
215
|
81
|

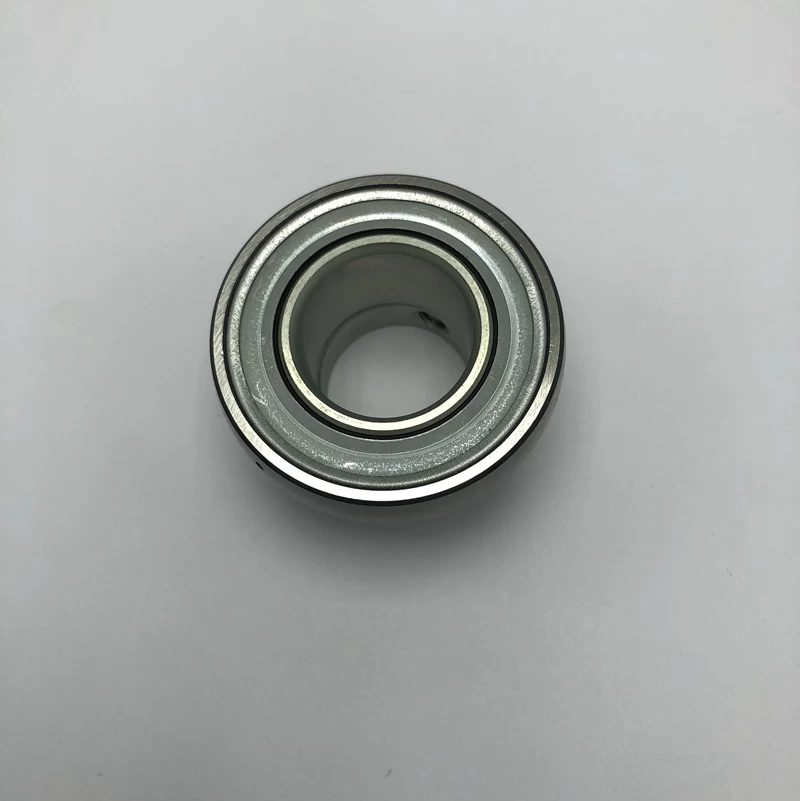

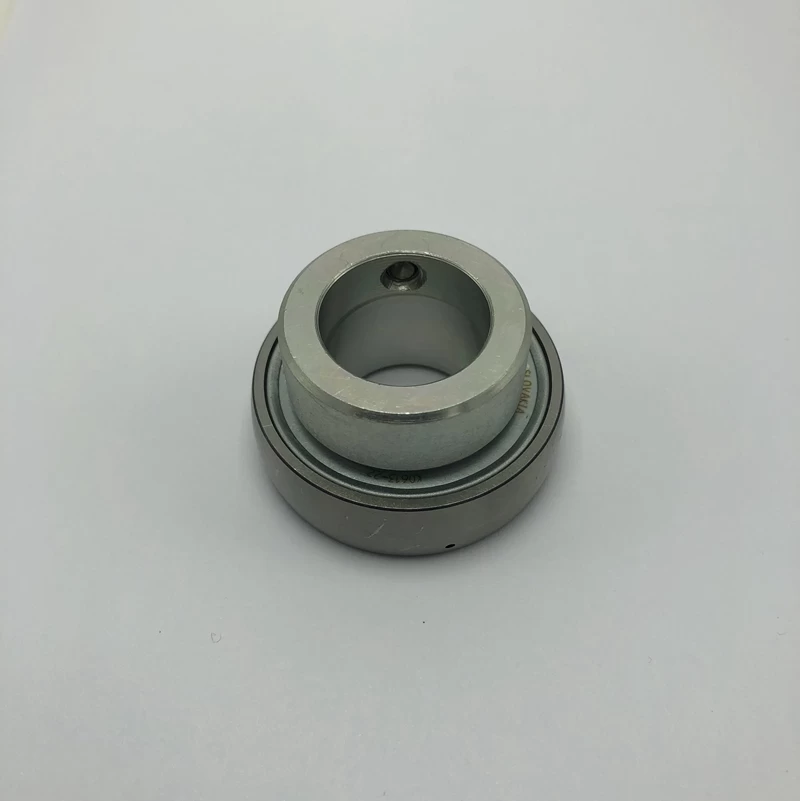

Ball Insert Bearing Picture GE25-XL-KRR-B
