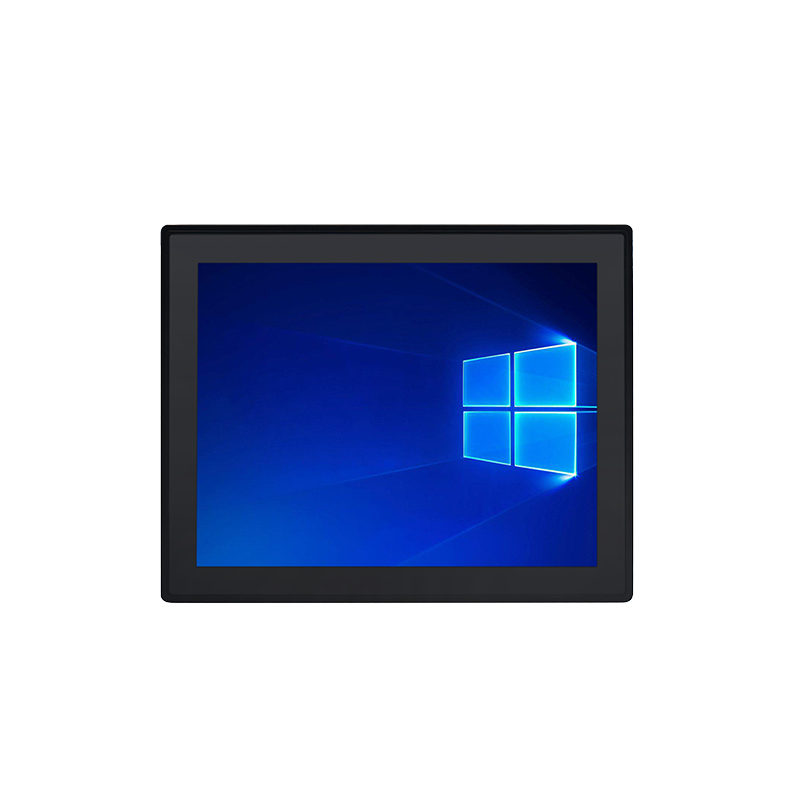

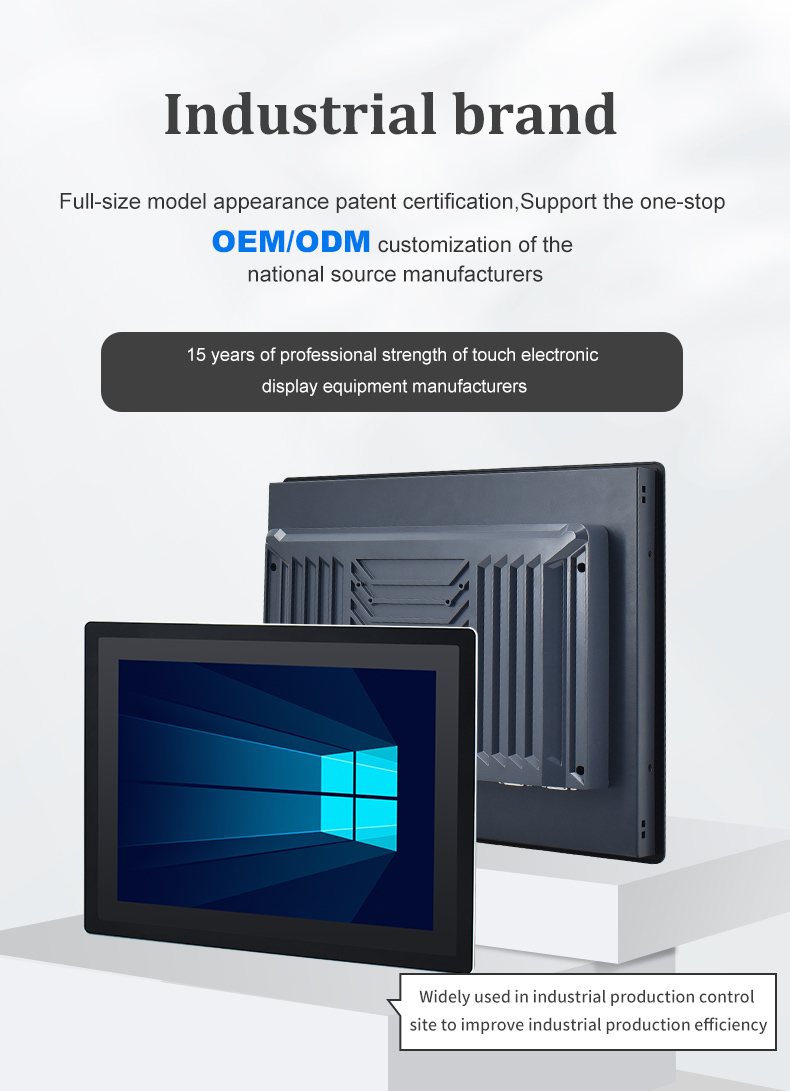

15-21.5 Inch Industrial Touch Screen Android Panel PC
PicbiLL Embedded all-in-one machine:
1 industrial-grade anodized aluminum alloy panel.
2. Support for 10-point capacitive touch/resistive touch/non-touch.

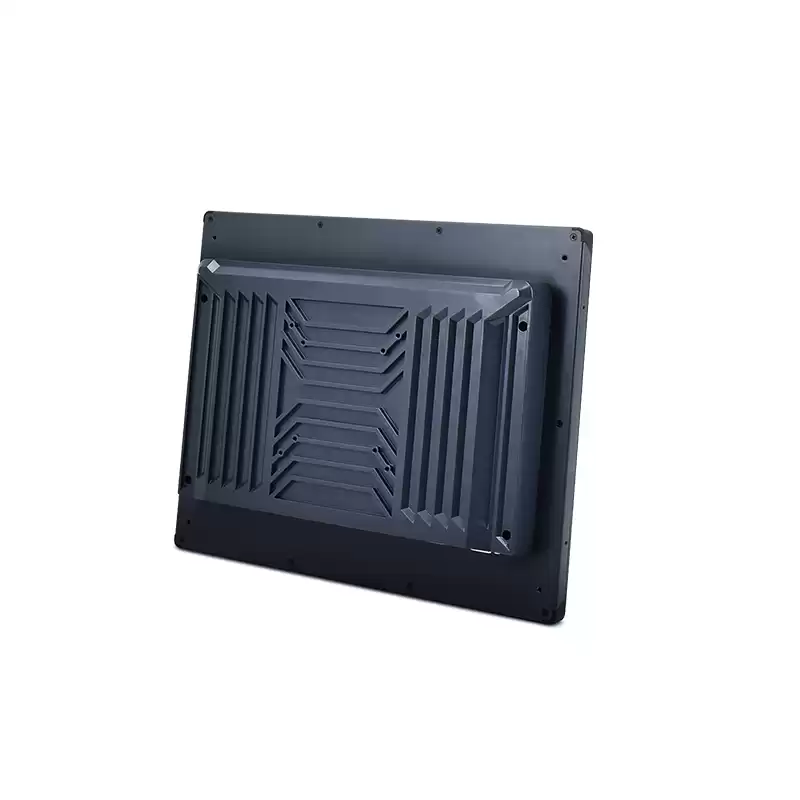

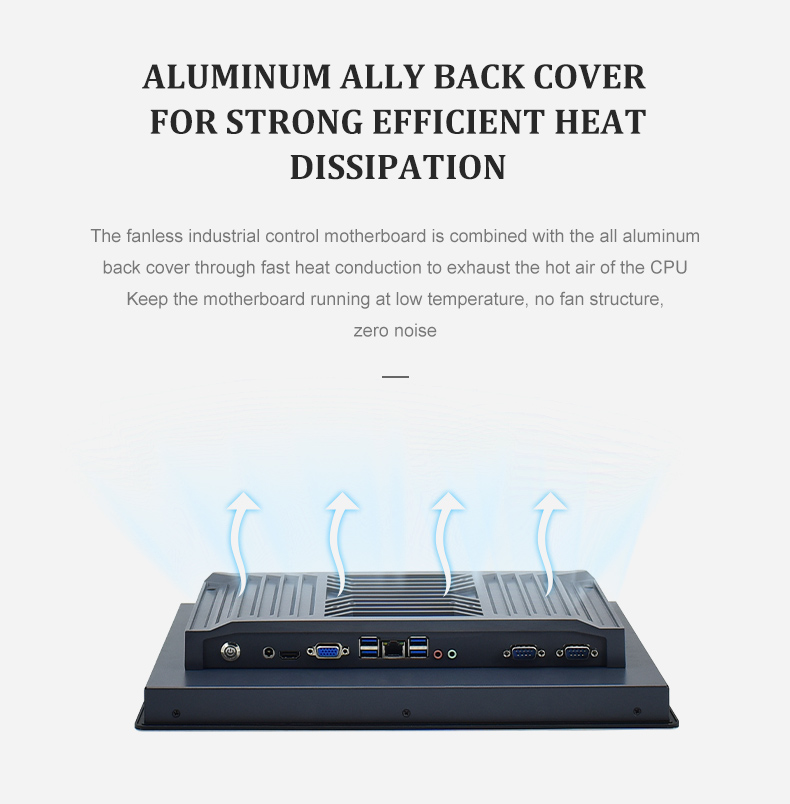

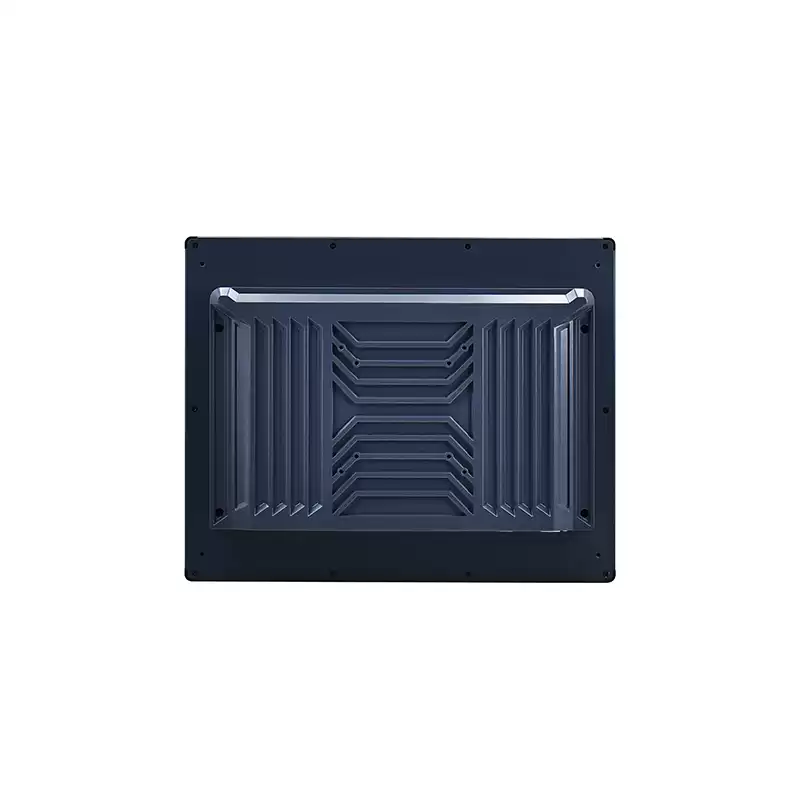

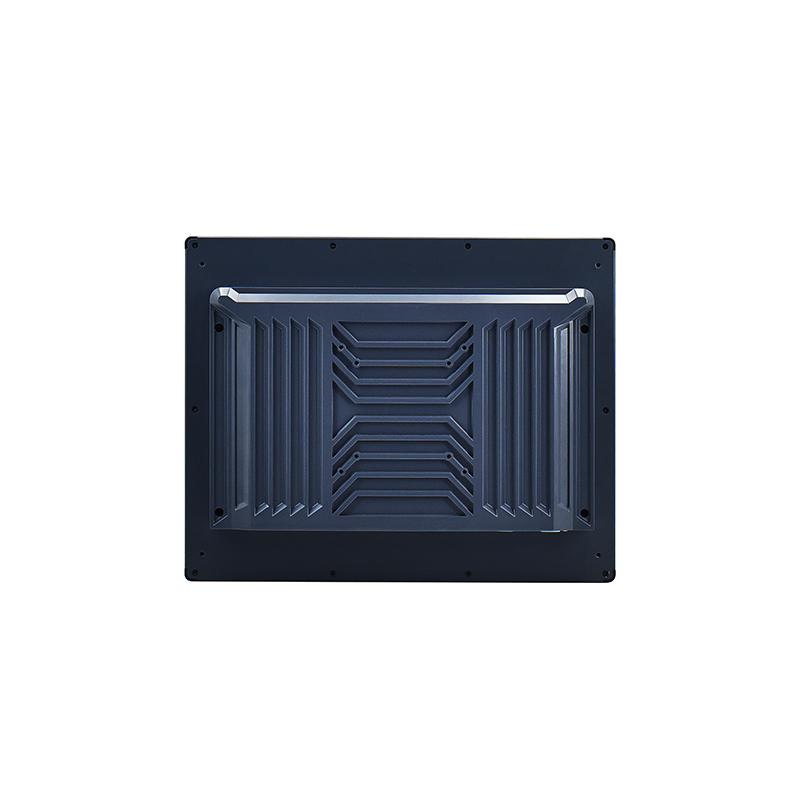

3. Aluminum alloy fully enclosed design, efficient heat dissipation, stable operation.

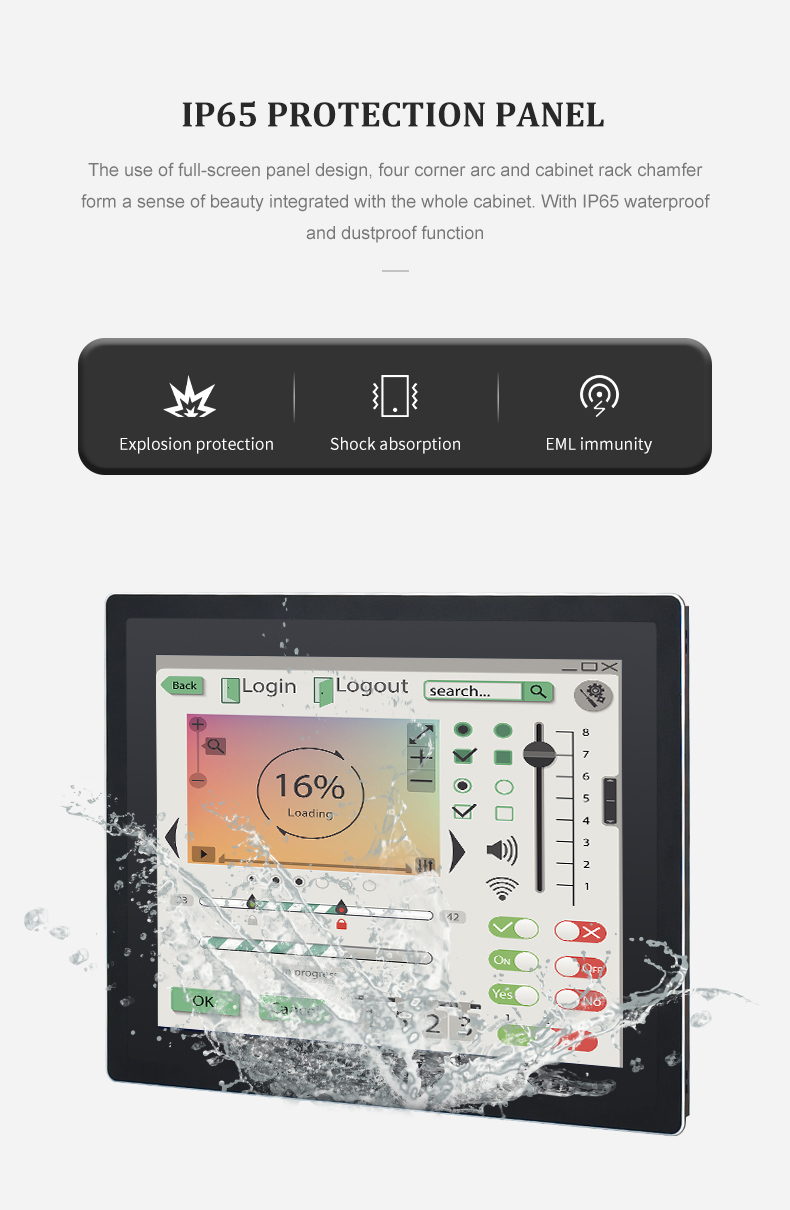

4. IP65 protection level.
5. The whole machine industrialization, suitable for all kinds of harsh environment.
6. Widely used in automatic workshop, Intelligent Cabinet, electrical cabinet and other fields.
Product Specifications
| CPU |
Integrated Intel@J1800/J1900/J6412/i3/i5/i7 |
| Memory |
4GB DDR3 DDR4 UP TO 8GB TO 16G |
| Hard drive |
128GB-1T mSATA (2.5-inch SSD HDD optional) |
| wireless |
WIFI module can be installed |
| Bluetooth |
BT4.0/BT5.0 |
| Operating system |
Supports Win7/Win8 /Win10 /LINUX |

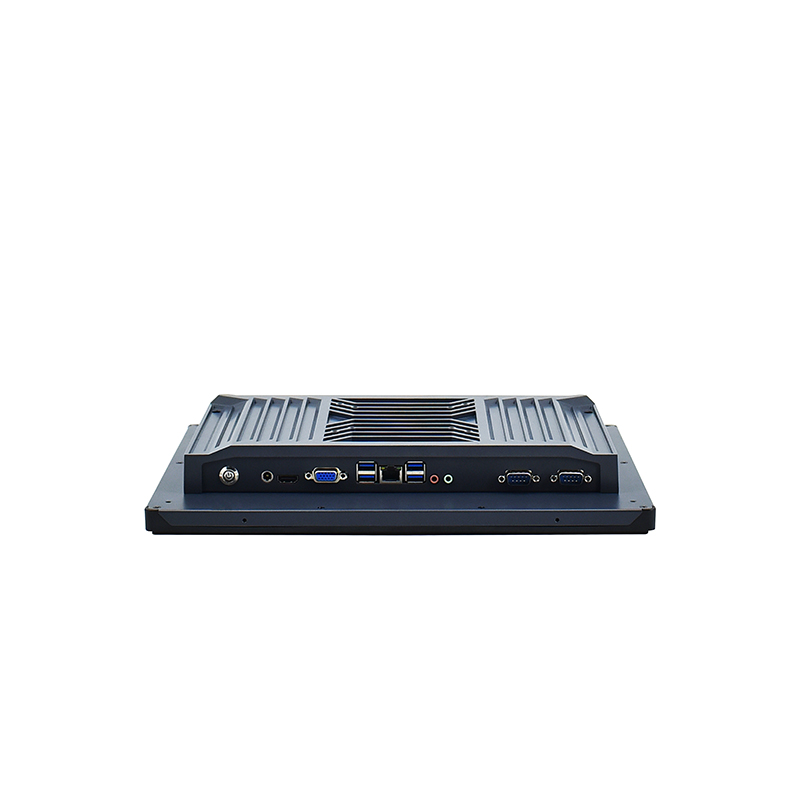

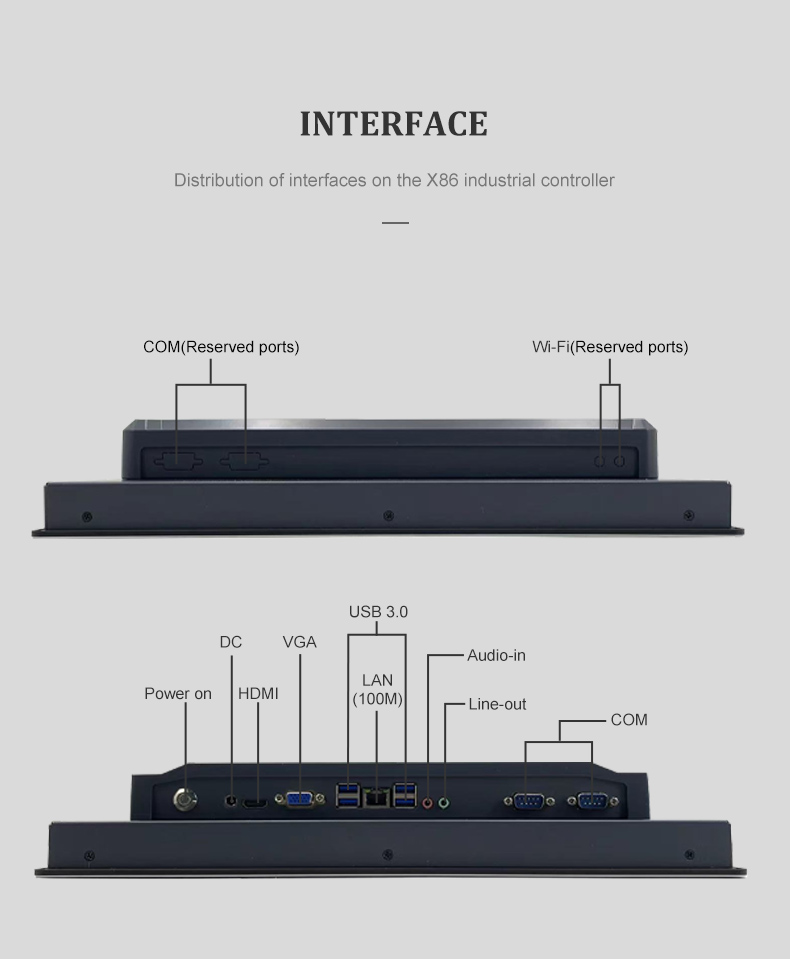

| Interface |
DC/HDMI/VGA/USB3.0x4/LAN/ AUDIO IN/AUDIO OUT /COMx4 |
| screen size |
10.1/12.1/15/15.6/17/18.5/19/21.5inches |
| touch |
A 10-point capacitive touch screen |
| power supply |
DC12V-5A external power adapter |
| Dustproof and waterproof grade |
IP65 (front panel) |
| Operating temperature |
-10°C~60°C |
| Storage temperature |
20°C~70°C |
